The current through the resistor R. of the network given in the figure below approximates to?...
The current through the resistor R, of the network given in the figure below approximates to?...

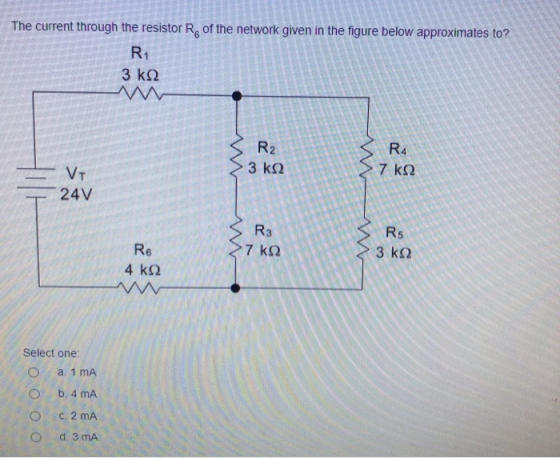

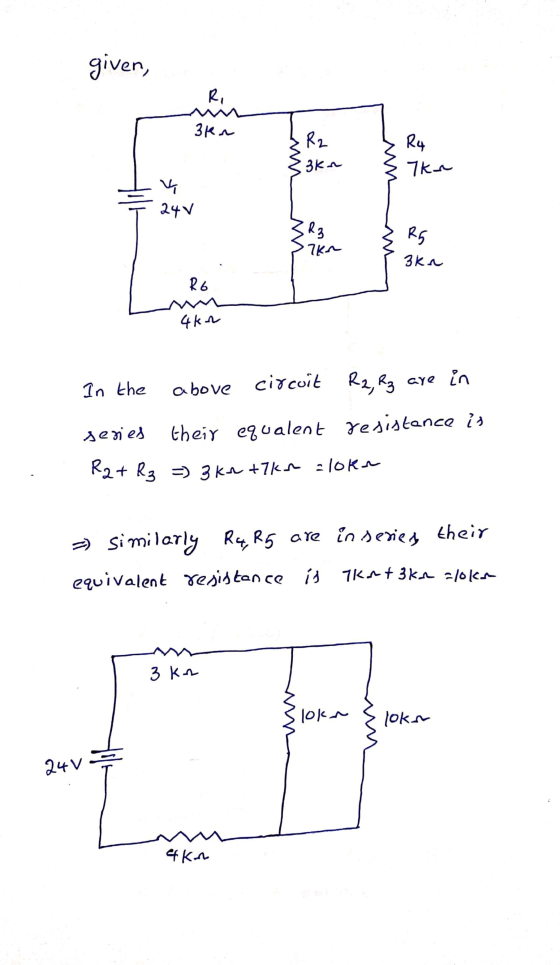

The current through the resistor R, of the network given in the figure below approximates to? R1 3 ΚΩ R2 3 ΚΩ R4 7 ΚΩ VT 24V R3 R5 R6 7 ΚΩ 3 ΚΩ 4 ΚΩ

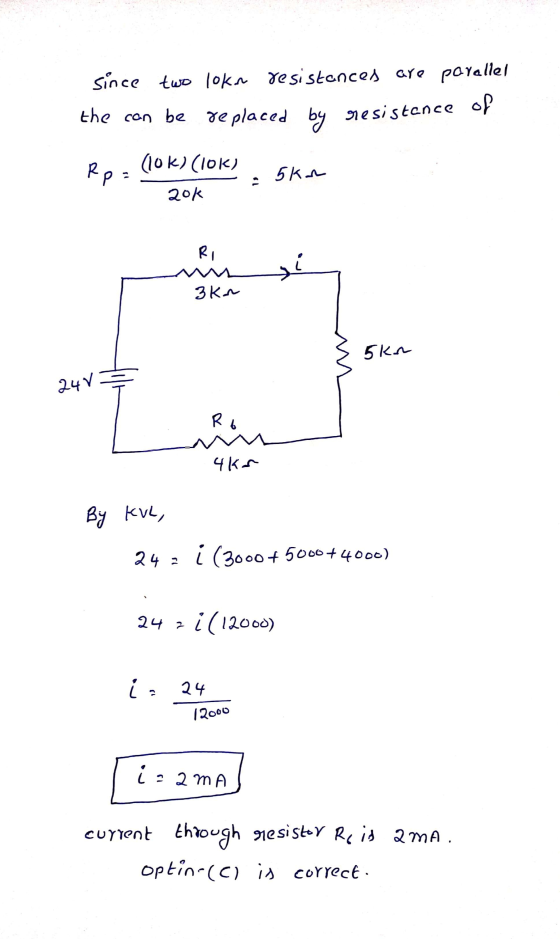

Figure 4. (a) The equivalent resistance of the network shown in figure 4(A) is 2KΩ. (True,...
Figure 4. (a) The equivalent
resistance of the network shown in figure 4(A) is 2KΩ. (True,
False)
b) The equivalent resistance of the network shown in figure 4(B)
is 27/17Ω [Hint see figure 4(B) and]
(B) 1 ΚΩ 1 ΚΩ 1 ΚΩ - R2 w c 1.00 + 3100 im IR 3.00 7 Figure 4: 4. (a) The equivalent resistance of the network shown in figure 4(A) is 2K12 (True, False) (b) The equivalent resistance of the network shown in...
What is the current in R3 resistor in the figure (below), for the following values: r...
What is the current in R3 resistor in the figure (below), for the following values: r = 0.64270, R1=130, R2 =6.20, R3 =5.20, R4 =90 and R5 =5.90 R1 R3 R2 w R4 R5 8 11 V Answer:
Compute the equivalent resistance of the network in the figure below, and find the current in...
Compute the equivalent resistance of the network in the figure below, and find the current in each resistor. (R1 = 4.00 Ω, R2 = 7.00 Ω, R3 = 10.0 Ω, R4 = 2.00 Ω, and ε = 61.0 V.) The battery has negligible internal resistance. equivalent resistance Incorrect: Your answer is incorrect. Ω current in each resistor Incorrect: Your answer is incorrect. A (Resistor R1) A (Resistor R2) A (Resistor R3) A (Resistor R4)
Using the mesh analysis, find the current in mA through the resistor R3 for the network...
Using the mesh analysis, find the current in mA through the resistor R3 for the network of Figure, where R1=4.1k2; R2=2.4k; R3=5.7k22; E1=6V; E2=16V; E3=9V; R2 E =
Please answer clearly Question 2 The amplifier shown in Figure 2 has the following parameters: Kn(W/L)-1 mA/V2, V-1 V Determine a) Voltage gain (Vo/vi) b) Input resistance (R) c) Output resistance (R...
Please answer clearly
Question 2 The amplifier shown in Figure 2 has the following parameters: Kn(W/L)-1 mA/V2, V-1 V Determine a) Voltage gain (Vo/vi) b) Input resistance (R) c) Output resistance (Ro) d) Maximum output voltage swing so as the amplifier stays in saturation mode. Assume VDD-20 V, R1-2.5 ΚΩ, R2-1KQ, R3-0.5 ΚΩ, R4-5 MQ, R5_1ΜΩ. R4 R1 R5 R2 Ro R3
Question 2 The amplifier shown in Figure 2 has the following parameters: Kn(W/L)-1 mA/V2, V-1 V Determine a)...
In the figure the current in resistance 6 is i6 = 1.47 A and the resistances...
In the figure the current in resistance 6 is
i6 = 1.47 A and the resistances are
R1 = R2 =
R3 = 1.55 Ω, R4 = 15.3 Ω,
R5 = 8.64 Ω, and R6 = 4.91
Ω. What is the emf of the ideal battery?
w R R2 R 8 RE } R4 R6
b) What current flows through R6 in mA? In the following circuit, the battery emf is...
b) What current flows through R6 in mA?
In the following circuit, the battery emf is 25V, R1 = 3 kN, R2 = 5 kN, R3 = 1.5 kN, R4 = 8 kN, R5 = 1 kN, Ro = 2 k12, -R2 R4 .Ro w R1 R3 RE What current is drawn from the battery in mA?
1. Find the voltage across resistor R3 R4 Sko V1 R3 - 12 $1. 00 2....
1. Find the voltage across resistor R3 R4 Sko V1 R3 - 12 $1. 00 2. Find the current through and voltage across R6 R1 R2 1.sk = V2 12V 1.00 R4 R8 4700 1.Ok R7 $1.0ko R6 2.25kn 3. Find the voltage across and current through R3 R1 R2 4.7k 1.Ok 12V 1.5k) R5 W 4.7kQ R4 WW 1.5k R6 4. Find the voltage across R2 and the current through R6 R7 R5 R3 1.0k 1.0kg vi 12V R6...
The figure below shows a resistor network. R2 ww R R3 RA V The values of...
The figure below shows a resistor network. R2 ww R R3 RA V The values of the components are as follows: • R = 4.722 • R2 = 6.81 2 • R3 = 8.83 2 • R = 9.56 12 . V = 14.70 Volts Fill in all the values into the table below: Element R (12) V (V) Ri I (A) P(W) R2 R3 RA RA Re Rc
The current through the resistor R, of the network given in the figure below approximates to? R1 3 ΚΩ R2 3 ΚΩ R4 7 ΚΩ VT 24V R3 R5 R6 7 ΚΩ 3 ΚΩ 4 ΚΩ
Figure 4. (a) The equivalent
resistance of the network shown in figure 4(A) is 2KΩ. (True,
False)
b) The equivalent resistance of the network shown in figure 4(B)
is 27/17Ω [Hint see figure 4(B) and]
(B) 1 ΚΩ 1 ΚΩ 1 ΚΩ - R2 w c 1.00 + 3100 im IR 3.00 7 Figure 4: 4. (a) The equivalent resistance of the network shown in figure 4(A) is 2K12 (True, False) (b) The equivalent resistance of the network shown in...
What is the current in R3 resistor in the figure (below), for the following values: r = 0.64270, R1=130, R2 =6.20, R3 =5.20, R4 =90 and R5 =5.90 R1 R3 R2 w R4 R5 8 11 V Answer:
Using the mesh analysis, find the current in mA through the resistor R3 for the network of Figure, where R1=4.1k2; R2=2.4k; R3=5.7k22; E1=6V; E2=16V; E3=9V; R2 E =
Please answer clearly
Question 2 The amplifier shown in Figure 2 has the following parameters: Kn(W/L)-1 mA/V2, V-1 V Determine a) Voltage gain (Vo/vi) b) Input resistance (R) c) Output resistance (Ro) d) Maximum output voltage swing so as the amplifier stays in saturation mode. Assume VDD-20 V, R1-2.5 ΚΩ, R2-1KQ, R3-0.5 ΚΩ, R4-5 MQ, R5_1ΜΩ. R4 R1 R5 R2 Ro R3
Question 2 The amplifier shown in Figure 2 has the following parameters: Kn(W/L)-1 mA/V2, V-1 V Determine a)...
In the figure the current in resistance 6 is
i6 = 1.47 A and the resistances are
R1 = R2 =
R3 = 1.55 Ω, R4 = 15.3 Ω,
R5 = 8.64 Ω, and R6 = 4.91
Ω. What is the emf of the ideal battery?
w R R2 R 8 RE } R4 R6
b) What current flows through R6 in mA?
In the following circuit, the battery emf is 25V, R1 = 3 kN, R2 = 5 kN, R3 = 1.5 kN, R4 = 8 kN, R5 = 1 kN, Ro = 2 k12, -R2 R4 .Ro w R1 R3 RE What current is drawn from the battery in mA?
1. Find the voltage across resistor R3 R4 Sko V1 R3 - 12 $1. 00 2. Find the current through and voltage across R6 R1 R2 1.sk = V2 12V 1.00 R4 R8 4700 1.Ok R7 $1.0ko R6 2.25kn 3. Find the voltage across and current through R3 R1 R2 4.7k 1.Ok 12V 1.5k) R5 W 4.7kQ R4 WW 1.5k R6 4. Find the voltage across R2 and the current through R6 R7 R5 R3 1.0k 1.0kg vi 12V R6...
The figure below shows a resistor network. R2 ww R R3 RA V The values of the components are as follows: • R = 4.722 • R2 = 6.81 2 • R3 = 8.83 2 • R = 9.56 12 . V = 14.70 Volts Fill in all the values into the table below: Element R (12) V (V) Ri I (A) P(W) R2 R3 RA RA Re Rc
