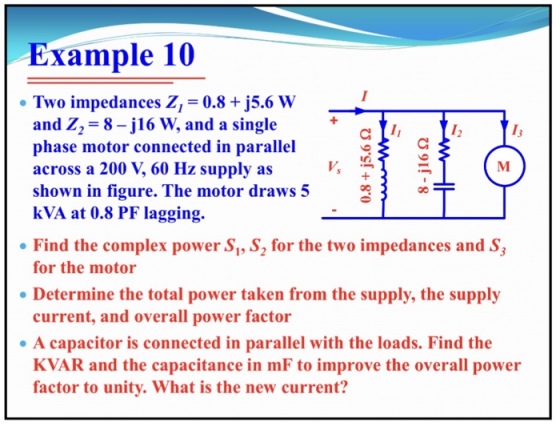

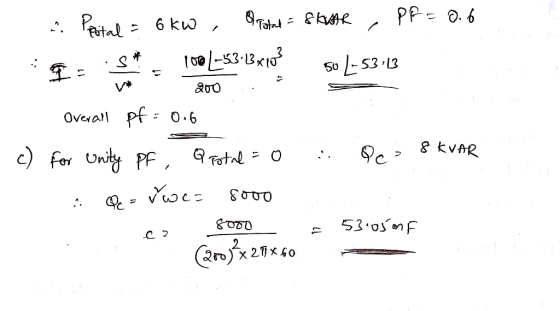

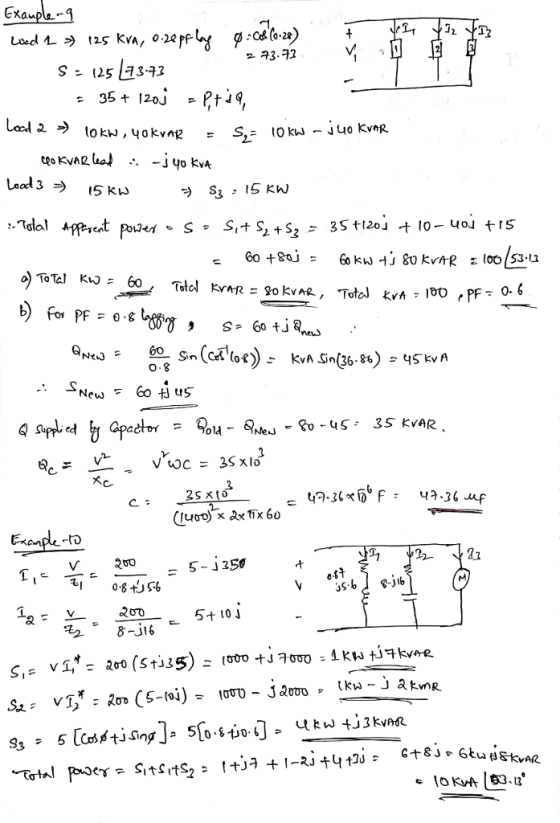

Example 9 Three loads are connected in parallel across 1400 V, 60 Hz supply: Load 1:...
(a) A 240 V 50 Hz factory electrical system has the following loads connected in parallel:...
(a) A 240 V 50 Hz factory electrical system has the following loads connected in parallel: Load 1: 4 kW at a power factor of 0.8 lag Load 2: 6 kVA at a power factor of 0.6 lag Load3: 6.5 kVA with 2.5 kVAr of leading reactive power Determine: (C) the overall system power factor, (ii) the value of a power-factor correction capacitor to improve the power factor to unity, and (ii) the value of a power-factor correction capacitor to...
A three-phase load of 15 kVA with a PF of 0.8 lagging is connected in parallel...
A three-phase load of 15 kVA with a PF of 0.8 lagging is connected in parallel with a three-phase load of 36 kW at 0.6 PF leading. The line-line voltage is 2000V. a) Find the total complex power and power factor. Is it inductive or capacitive? b) How much kVAR is needed to make the PF unity? c) What is the magnitude of the current going into the total load?
A generator is supplying two loads at 2800V and 60 Hz. The loads are: Load 1:...
A generator is supplying two loads at 2800V and 60 Hz. The loads are: Load 1: 10 kVA, at 0.6 pf lagging. Load 2: 12 kW and 10 KVAR inductive a. Calculate the total active and reactive power, and the power factor of the load. S- S, - ST- Pr- PF-
The following three-phase, balanced loads are connected across a three-phase, Y-connected 60 Hz source with a...
The following three-phase, balanced loads are connected across a three-phase, Y-connected 60 Hz source with a line-to-line voltage of 480 V. The loads are described below: • Load 1: ∆-connected, total three-phase apparent power is 30 kVA at 0.95 power factor lagging. • Load 2: ∆-connected, total three-phase active power is 20 kW at 0.7 power factor lagging. • Load 3: Y-connected, phase current is 30 A, and power factor is 0.9 pf leading. (a) Calculate the total complex power...
Two loads, A and B, are connected in parallel across a 1-kV-rms 60-Hz line, as shown...
Two loads, A and B, are connected in parallel
across a 1-kV-rms 60-Hz line, as shown in (Figure 1). Load
Aconsumes 10 kW with a 60 percent lagging power factor.
Load B has an apparent power of 20 kVA with an 80 percent
lagging power factor.
a) Find the power delivered by the source.
b) Find the reactive power delivered by the source.
c) Find the apparent power delivered by the source.
d) What is the power factor seen by...
Electrical Engineering Question 2. Three loads are connected in parallel across a source as shown. Load...
Electrical Engineering Question
2. Three loads are connected in parallel across a source as shown. Load 1 absorbs 7 kW and 8 KVAR. Load 2 absorbs 10 KVA at a lagging p.f. of 0.6. Load 3 absorbs 10 kW at a leading p.f. of 0.5. a) Find the total complex power absorbed by the three loads. 10.12 b) If V. = 12020° Vrms, find V, in polar form.
3. (40 points) Three-phase loads are connected in parallel across a 24 KV (line-line three-phase power...
3. (40 points) Three-phase loads are connected in parallel across a 24 KV (line-line three-phase power supply. Load 1: 120 KVA at 0.8 power factor leading; Load 2: 180 KW at 0.6 power factor lagging, Load 3: 40 KW at unity power factor Find the total complex power of three loads; (ii) Draw the power triangle of the combined load (ii) Find the overall power factor (iv) Find the line current (magnitude only) in the power supply line.
Two electrical loads are connected in parallel to a 380 V, 50 Hz, three phase supply....
Two electrical loads are connected in parallel to a 380 V, 50 Hz, three phase supply. The first load consists of three identical impedance each 7 Ω resistance and 5Ω inductive resistance, connected in star. The second load consists of three identical impedances, each 12 Ω resistance and 8 Ω capacitive reactance connected in delta. Sketch the arrangement described above Calculate Zph1 and Zph2[Zph1= 8.6Ω 35.54°; Zph2= 14.42 Ω -33.69°] Determine Iph1 and Iph2[Iph1= 25.51A -35.54°; Iph2= 26.35A +33.69°] IL1...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a cur...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source
Problem 7 Three three-phase wye-connected loads are in parallel...
1, Two balanced three-phase loads are in parallel. Load 1 draws 10 kW at 0.8 PF...
1, Two balanced three-phase loads are in parallel. Load 1 draws 10 kW at 0.8 PF lagging Load 2 draws 20 kVA at 0.6 PF leading a. b. The loads are supplied by a balanced three-phase 480 Vu source. (a) Draw the power triangle for the combined load. (b) Determine PF of the combined load. (c) Determine the magnitude of the line current from the source. (d) Y-connected inductors are now installed in parallel with the combined load. What value...
(a) A 240 V 50 Hz factory electrical system has the following loads connected in parallel: Load 1: 4 kW at a power factor of 0.8 lag Load 2: 6 kVA at a power factor of 0.6 lag Load3: 6.5 kVA with 2.5 kVAr of leading reactive power Determine: (C) the overall system power factor, (ii) the value of a power-factor correction capacitor to improve the power factor to unity, and (ii) the value of a power-factor correction capacitor to...
A generator is supplying two loads at 2800V and 60 Hz. The loads are: Load 1: 10 kVA, at 0.6 pf lagging. Load 2: 12 kW and 10 KVAR inductive a. Calculate the total active and reactive power, and the power factor of the load. S- S, - ST- Pr- PF-
Two loads, A and B, are connected in parallel
across a 1-kV-rms 60-Hz line, as shown in (Figure 1). Load
Aconsumes 10 kW with a 60 percent lagging power factor.
Load B has an apparent power of 20 kVA with an 80 percent
lagging power factor.
a) Find the power delivered by the source.
b) Find the reactive power delivered by the source.
c) Find the apparent power delivered by the source.
d) What is the power factor seen by...
Electrical Engineering Question
2. Three loads are connected in parallel across a source as shown. Load 1 absorbs 7 kW and 8 KVAR. Load 2 absorbs 10 KVA at a lagging p.f. of 0.6. Load 3 absorbs 10 kW at a leading p.f. of 0.5. a) Find the total complex power absorbed by the three loads. 10.12 b) If V. = 12020° Vrms, find V, in polar form.
3. (40 points) Three-phase loads are connected in parallel across a 24 KV (line-line three-phase power supply. Load 1: 120 KVA at 0.8 power factor leading; Load 2: 180 KW at 0.6 power factor lagging, Load 3: 40 KW at unity power factor Find the total complex power of three loads; (ii) Draw the power triangle of the combined load (ii) Find the overall power factor (iv) Find the line current (magnitude only) in the power supply line.
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source
Problem 7 Three three-phase wye-connected loads are in parallel...
1, Two balanced three-phase loads are in parallel. Load 1 draws 10 kW at 0.8 PF lagging Load 2 draws 20 kVA at 0.6 PF leading a. b. The loads are supplied by a balanced three-phase 480 Vu source. (a) Draw the power triangle for the combined load. (b) Determine PF of the combined load. (c) Determine the magnitude of the line current from the source. (d) Y-connected inductors are now installed in parallel with the combined load. What value...
