Question

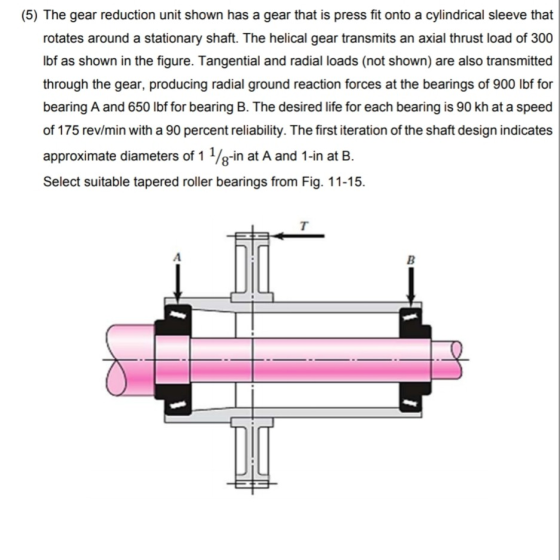

(5) The gear reduction unit shown has a gear that is press fit onto a cylindrical sleeve that rotates around a stationary sha

0 0
Add a comment Improve this question Transcribed image text
Answer #1

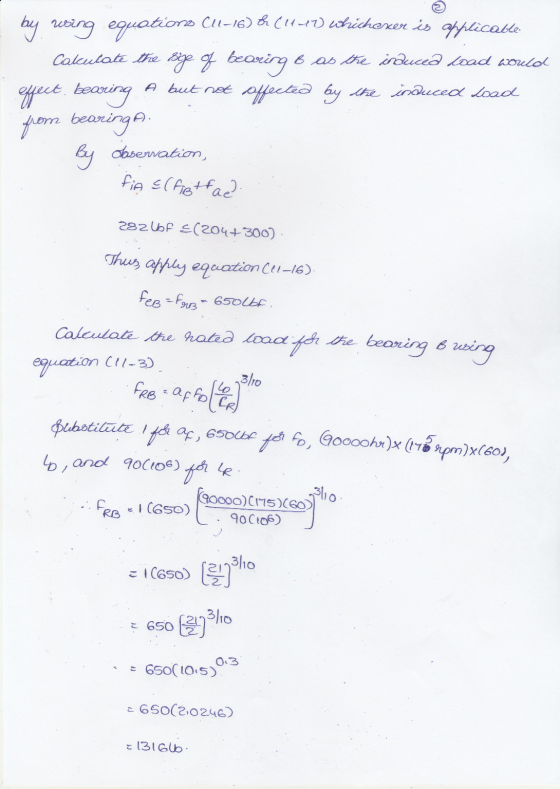

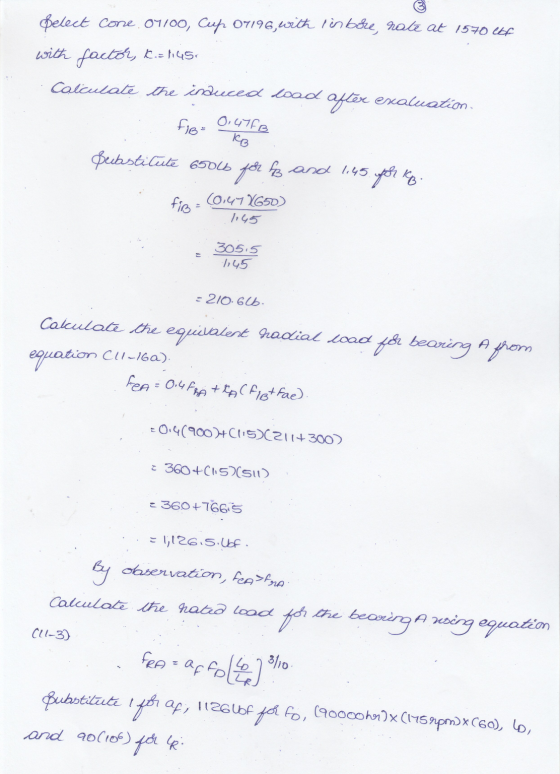

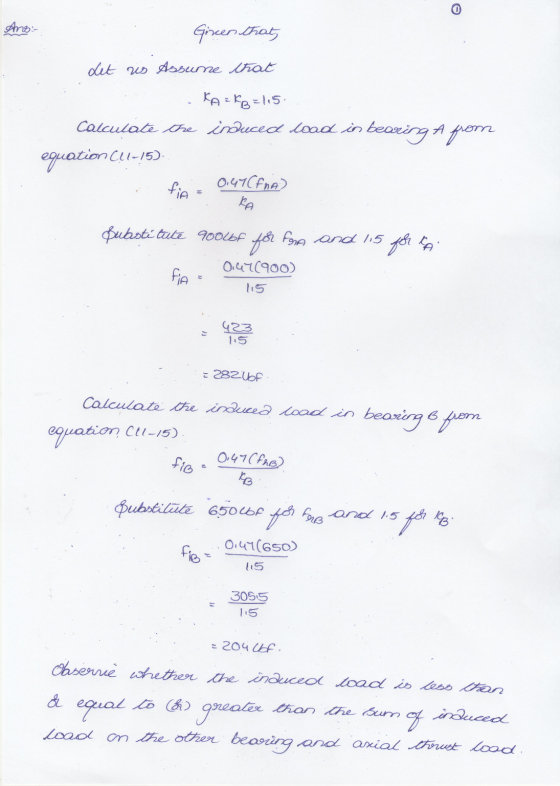

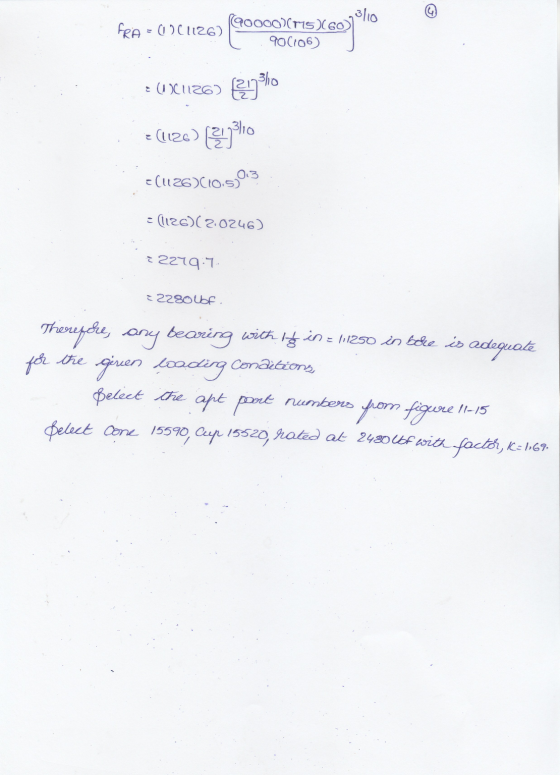

Ang- Giren that, Let us Assurne that KAKB=115. Calculate the induced load in bearing A from equation (U-15 fin 0.47 (na) RA DCalculate the bearing B as the induced load would by wing equations CU-16) & (1441) whickexer is applicable Sige of ffect beaSelect cone. 07100, Cup 07196, with linbore, rate at 1570 666 with factor, K.: 145 Calculate the induced wad after escaluatio3110 R90000)(115)(60) FRA - (1126) 90(106) = (X1126) Byho =(1126) (3139 (1126)(10.5,03 - (126)(2.0246) = 2279:7 2280lbf. for

Add a comment
Know the answer?
Add Answer to:
(5) The gear reduction unit shown has a gear that is press fit onto a cylindrical...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 7-25 A shaft is to be designed to support the spur pinion and helical gear shown in the figure on two bearings spaced 700 mm center-to-center. Bearing A is a cylindrical roller and is to take onl...

    7-25 A shaft is to be designed to support the spur pinion and helical gear shown in the figure on two bearings spaced 700 mm center-to-center. Bearing A is a cylindrical roller and is to take only radial load; bearingB is to take the thrust load of 900 N produced by the helical gear and its share of the radial load. The bearing at B can be a bal bearing. The radial loads of both gears are in the same...

  • Is the factor of safety guarding against damaging distortion? What is the factor of safety guard-...

    is the factor of safety guarding against damaging distortion? What is the factor of safety guard- ing against a fatigue failure? If the shaft turns out to be unsatisfactory, what would you rec- ommend to correct the problem? A shaft is to be designed to support the spur pinion and helical gear shown in th two bearings spaced 28 in center-to-center. Bearing A is a cylindrical roller and is to take only radial load; bearing B is to take the...

  • can you please explain how to calculate the axial load for each gear and supporting load for each bearing? thank you! Task 1: A shaft is to be designed to support the spur pinion and helical gea...

    can you please explain how to calculate the axial load for each gear and supporting load for each bearing? thank you! Task 1: A shaft is to be designed to support the spur pinion and helical gear shown in the figure below on two bearings spaced 700 mm center-to-center. Bearing A is a cylindrical roller bearing and has to take only radial load; bearing B has to take the thrust load produced by the helical gear and its share of...

  • A straight-bevel gear mesh is utilized to transform the rotation about a horizontal shaft of a...

    A straight-bevel gear mesh is utilized to transform the rotation about a horizontal shaft of a motor-driven pinion into rotation of an output gear about a vertical shaft as shown in Fig. 1. The pressure angle f = 20°. The pinion shaft rotates at 900 rpm. a. Both pinion and gear are Grade 2 steel through-hardened at 250 Brinell and are uncrowned. The quality number is 9 and the desired life is 30,000 hours with a 0.999 reliability. For a...

  • QUESTION 10 The shaft shown in the figure is driven by a gear at the right...

    QUESTION 10 The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of...

  • The shaft shown in the figure is driven by a gear at the right keyway, drives...

    The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of the fan...

  • The shaft shown in the figure is driven by a gear at the right keyway, drives...

    The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of the fan...

  • Question 2 The shaft shown below is rotating at 650 rpm, and it receives 7.5 hp...

    Question 2 The shaft shown below is rotating at 650 rpm, and it receives 7.5 hp through a flexible coupling. The power is delivered to an adjacent shaft through a single helical gear B having a normal pressure angle of 20 degrees and a helix angle of 15 degrees. The pitch diameter for the gear is 4.141 inches (De) and the Tangential (Wu), radial (W) and axial/thrust (W) are shown below on the drawing. The shaft is to be made...

  • Figure below shows the load components acting on a helical gear mounted on a simply supported...

    Figure below shows the load components acting on a helical gear mounted on a simply supported shaft. Bearing B takes thrust. A flexible coupling for transmitting torque attaches to the right end of the shaft. The left end is free. 1-Draw load, shear force, and bending moment diagrams for the shaft, in both the horizontal and vertical planes. 2- Identify the most critically loaded shaft cross section, and for this location determine the diameter theoretically required for infinite life. Assume...

  • 11-32 The figure shown is a geared countershaft with an overhanging pinion at C. Select an...

    11-32 The figure shown is a geared countershaft with an overhanging pinion at C. Select an angular- contact ball bearing from Table 11-2 for mounting at O and an 02-series cylindrical roller bearing from Table 11-3 for mounting at B. The force on gear A is FA-600 lbf, and the shaft is to run at a speed of 420 rev/min. Solution of the statics problem gives force of bear- ings against the shaft at O as Ro--387] 467k lbf, and...
