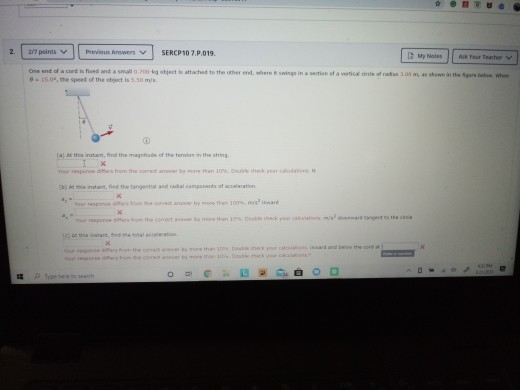

One end of a cord is fixed and a small 0.700-kg object is attached to the other end, where it swings in a section of a vertical circle of radius 3.00 m, as shown in the figure below. When θ = 15.0°, the speed of the object is 5.50 m/s.

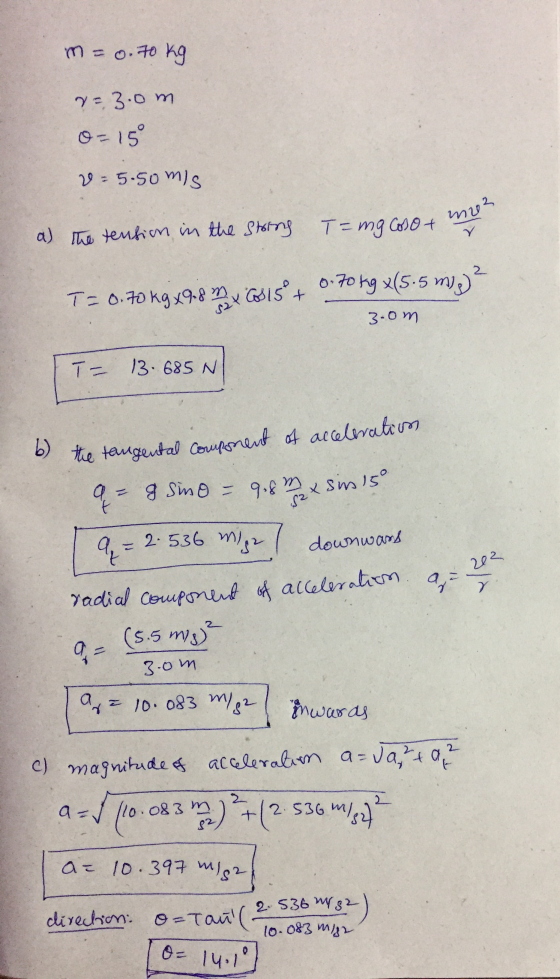

a. At this instant, find the magnitude of the tension in the string.
b. At this instant, find the tangential and radial components of acceleration.
c. At this instant, find the total acceleration. (magnitude and direction)
Homework Answers
