Question

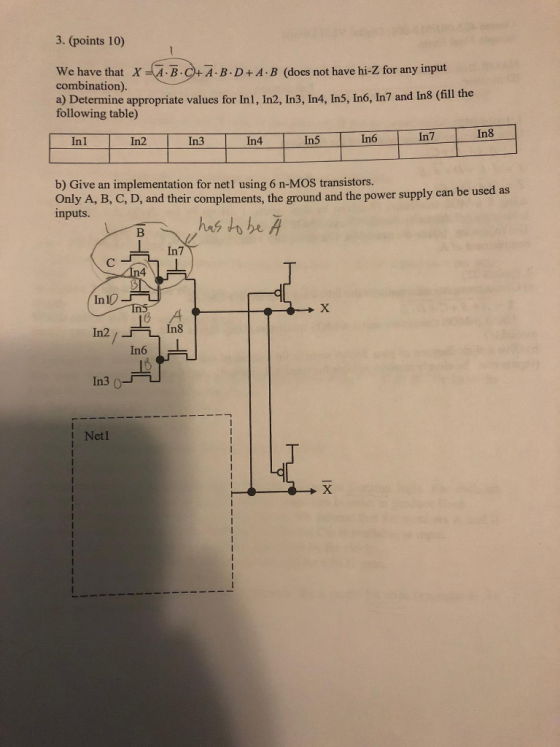

3. (points 10) We have that XAB+A B.D+A B (does not have hi-Z for any input combination). a) Determine appropriate values for In1, In2, In3, In4, In5, In6, In7 and In8 (fill the following table) In6 In7 In8 Inl In2 In3 In4 In5 b) Give an implementation for netl using 6 n-MOS transistors. Only A, B, C, D, and their complements, the ground and the power supply can be u inputs. sed as 4 In 10 In3 ou I Netl

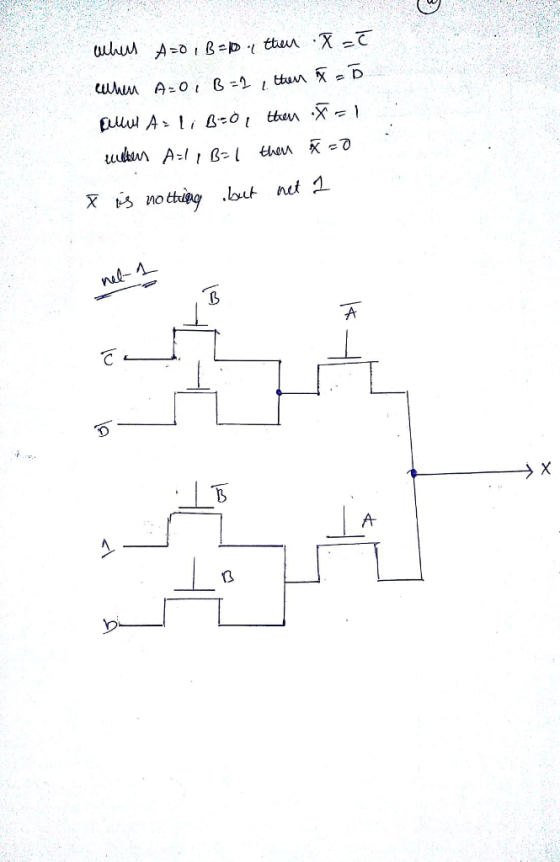

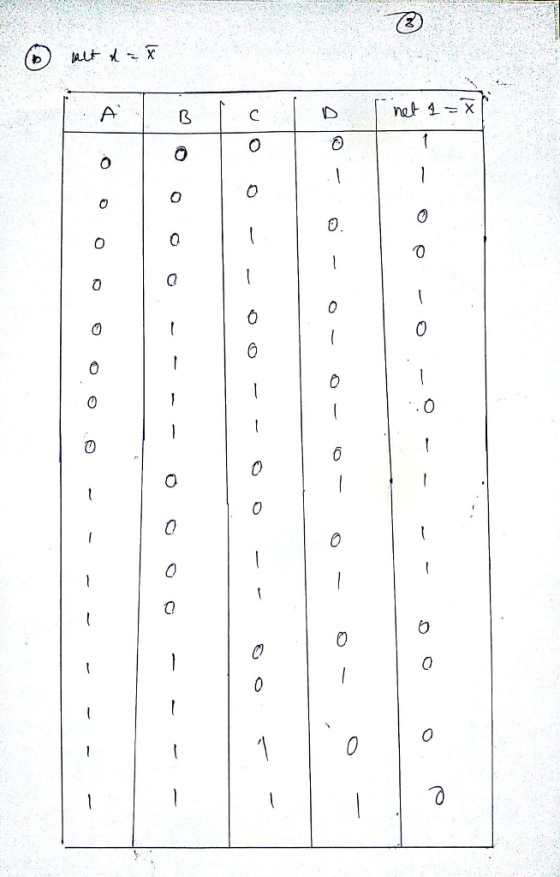

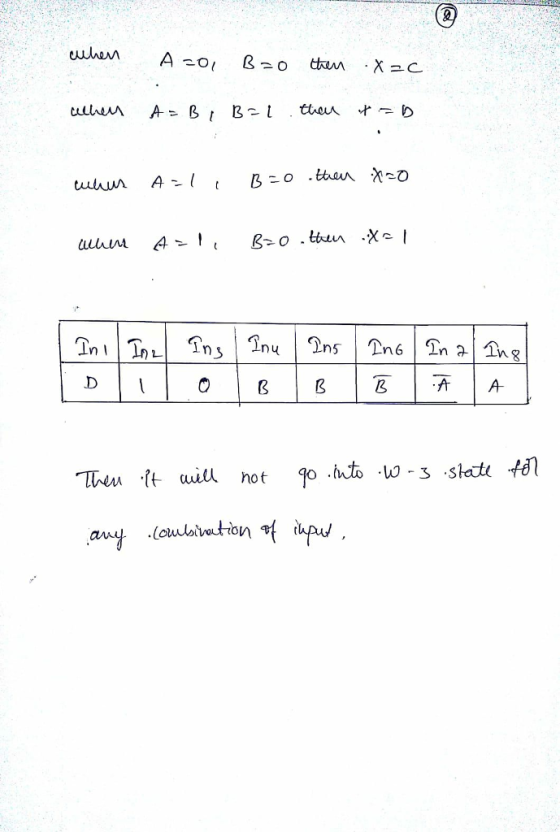

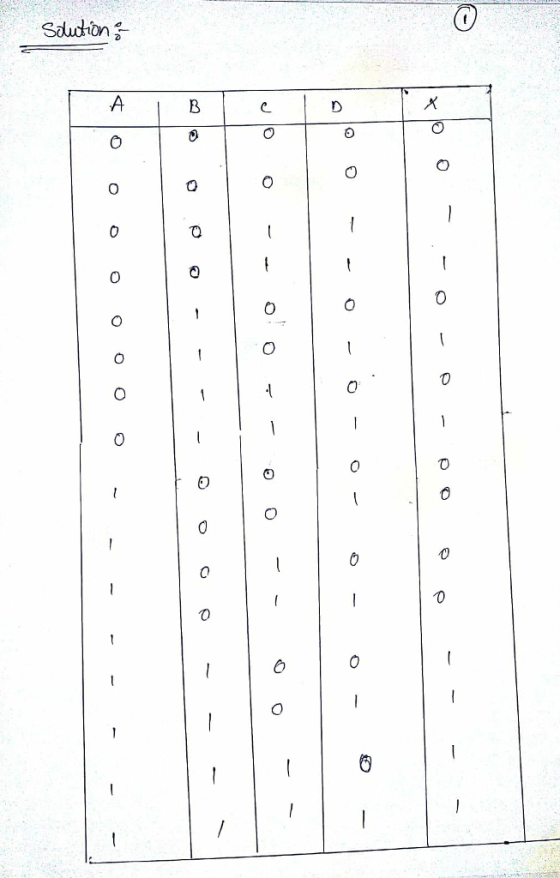

Answer 1
