Homework Answers
ANSWER:

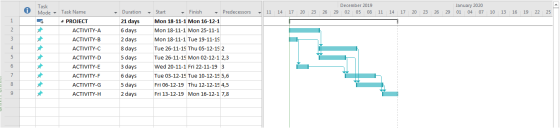

STEP-1: BAR CHART / GANTT CHART AS PER PROBLEM:
STEP-2: NODE NETWORK DIAGRAM: IN BOX
STEP-3: NODE
NETWORK DIAGRAM: COLLAPSING BOX: (RED ONES ARE CRITICAL
ACTIVITY)

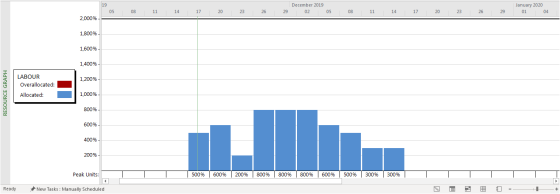

STEP-4: RESOURCE LOADING:
STEP-5:

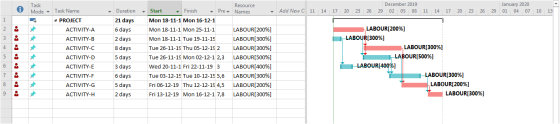

RESOURCE LEVELLING OF 113 MAN DAYS TOTAL = NOT MORE THAN 8 LABORERS
PER DAY
| =2*6+3*2+3*8+5*5+4*3+3*6+2*5+3*2 =113 MAN DAYS |
:

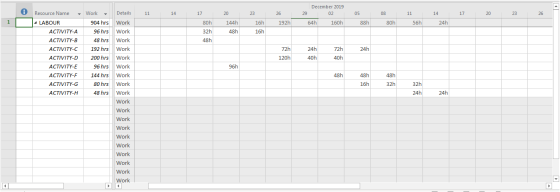

STEP-6: RESOURCE USAGE OF 113 MAN DAYS TOTAL:
