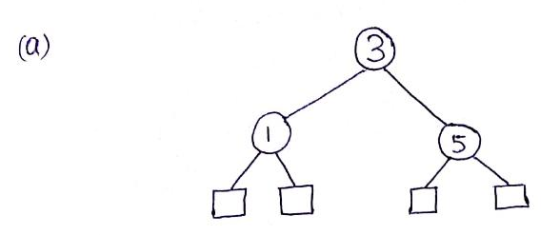

(a) Decision Tree for Algorithm 1 is shown below:

(b) The Algorithm 1 is incorrect, because when the parameters first and last becomes equal, the algorithm directly returns -1 instead of comparing L[first] with x.

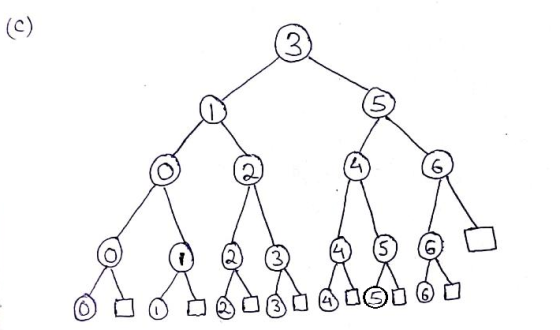

(c) Decision Tree for Algorithm 2 is shown below:

(d) The Algorithm 2 is also incorrect, because it runs into an infinite loop when the parameters first and last are equal.
// If you have any query do ask in the comments section.
