(#1 Deliveres to the Fraud the Maximum Power 15 2 resistor: 2012 Tu 102 mu 0.5A...

Question

Question

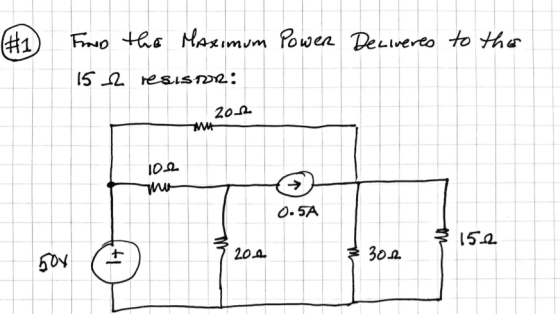

(#1 Deliveres to the Fraud the Maximum Power 15 2 resistor: 2012 Tu 102 mu 0.5A 152 7204 * 30.10

engineering Electrical-Engineering

Answer 1

Answer #1

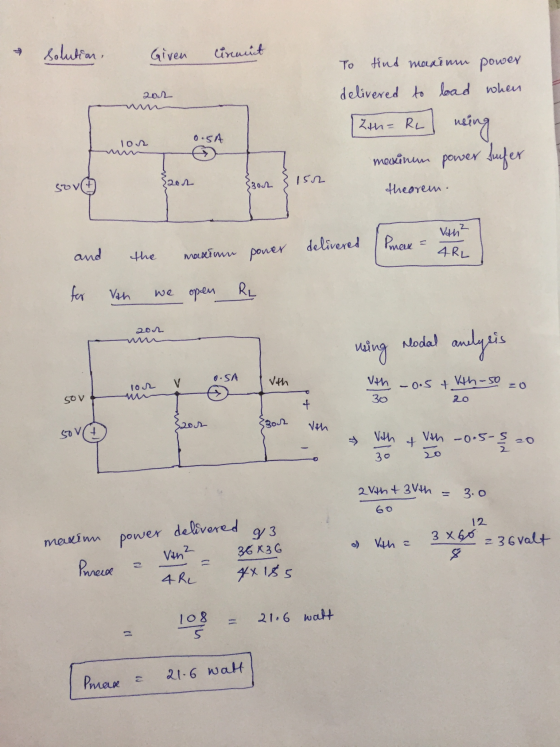

I am uploaded the solution if you have any doubt you can leave a comment

thanks

Answer 2

Similar Homework Help Questions

2. The power rating of a resistor is the maximum power it can safely dissipate without...

2. The power rating of a resistor is the maximum power it can safely dissipate without being (point) damaged by overheating. A 15 k32 resistor has a power rating of 5.0 W. What is the maximum current it can carry without damage? O0.033 A O0.548 A O 0.183 A O0.041 A 3. Which equation defines the electric power P that a circuit delivers to a resistor? (l point) ab P ab OP- VabR ab (1 point) 4. A resistor has...
MUM TU. MU./P. MU. TU, MU/P. Quantity N 0 1 Quantity M 0 1 2 3...

MUM TU. MU./P. MU. TU, MU/P. Quantity N 0 1 Quantity M 0 1 2 3 4 5 6 42 78 108 132 150 162 2 3 4 5 6 20 16 12 8 4 2 Complete the table above. The budget constraint for the consumer is $21 a week for his M and N preferences (goods or services). The Price or Cost of each unit of Mis $3, and the Price or Cost of each unit of N is...
The power rating of a 10 Kiloohm resistor is 1/4 W. This is the maximum power...

The power rating of a 10 Kiloohm resistor is 1/4 W. This is the maximum power the resistor can safely dissipate. What is the maximum allowable voltage across the resistor?

A 80 Ω resistor is rated at 1.00 W maximum power capacity. There is a maximum...

A 80 Ω resistor is rated at 1.00 W maximum power capacity. There is a maximum voltage that can be applied across the resistor without exceeding its maximum power rating. 1) What is this voltage? 2) What is the current at this voltage?
Assume that you have a circuit containing a capacitor (15 mu F) and a resistor (200...

Assume that you have a circuit containing a capacitor (15 mu F) and a resistor (200 ohm) in series with an AC power generator with f = 60Hz and element_m = 36.0V. What are (a) Z, (b) psi and (c) I? (d) Draw a phasor diagram.
Use a transformer with the turns ratio of 5:1, two diodes, and a resistor to design...

Use a transformer with the turns ratio of 5:1, two diodes, and a resistor to design a battery charger. If the input power is from the regular power line (120rms, 60Hz) and the battery is 12-V battery. The maximum charging peak current and maximum charging peak voltage of the battery are 0.5A and 15V, respectively. 1) Draw the circuit diagram; 2) Explain how it works; 3) Specify the value of the limiting current resistor and reverse breakdown voltage of diode....

The variable resistor in the circuit in (Figure 1) is adjusted for maximum power transfer to...

The variable resistor in the circuit in (Figure 1) is adjusted for maximum power transfer to Ro. Suppose that ρ = 350. Answer parts A-C please. Will thumb down if incorrect. Express your answer to three significant figures and include the appropriate units. The variable resistor in the circuit in (Figure 1) is adjusted for maximum power transfer to R. Suppose that p= 350 R. = 43.0588 2 Submit Previous Answers Request Answer X Incorrect; Try Again; 9 attempts remaining...
Determine the value of resistor R so that maximum power is delivered to it. Also determine...

Determine the value of resistor R so that maximum power is delivered to it. Also determine the value of the maximum power. 10几 2
Q#2 The variable resistor Ro in the circuit below is adjusted for maximum power transfer to...

Q#2 The variable resistor Ro in the circuit below is adjusted for maximum power transfer to Ro a) b) c) Find the value of Ro Find the maximum power that can be delivered to Ro What percentage of the total power developed in the circuit is delivered to Ro found in parta)? 316is 16? 32 ? A 180 ? 200 V 64 ? 48 ?

(13 points) The resistor R2 = 3.86364 ohms is absorbing the maximum power that can be...

(13 points) The resistor R2 = 3.86364 ohms is absorbing the maximum power that can be extracted out of the rest of the circuit. What is the value of the resistor R1, in ohms, and what is the mentioned maximum power in R2, in watts. R3 = 5 ohms, V1 = 20 volts, V2 = 9 volts. Figure: 1 TVVVV
