Question

Two parallel slits are illuminated by light composed of two wavelengths. One wavelength is AA-572nm. The other wavelength is
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

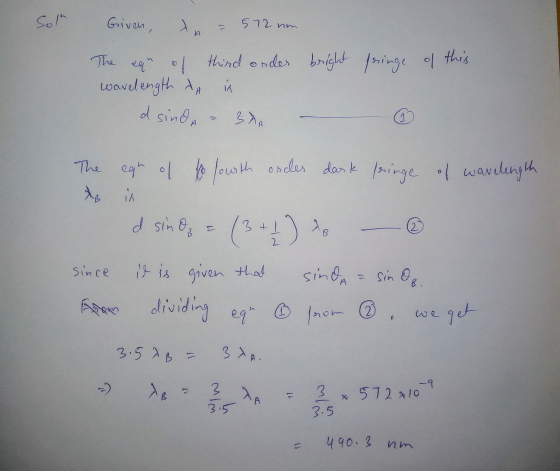

Answer #1


0 0
Add a comment
Know the answer?
Add Answer to:
Two parallel slits are illuminated by light composed of two wavelengths. One wavelength is AA-572nm. The...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Two parallel slits are illuminated by light composed of two wavelengths. One wavelength is λA =...

    Two parallel slits are illuminated by light composed of two wavelengths. One wavelength is λA = 657 nm. The other wavelength is λB and is unknown. On a viewing screen, the light with wavelength λA = 657 nm produces its fifth-order bright fringe at the same place where the light with wavelength λB produces its sixth dark fringe. The fringes are counted relative to the central or zeroth-order bright fringe. What is the unknown wavelength in nm?

  • PRINTER VERSION BACK NEXT Chapter 27, Problem 06 GO Interactive Leaming Ware 27.1 provides some pertinent...

    PRINTER VERSION BACK NEXT Chapter 27, Problem 06 GO Interactive Leaming Ware 27.1 provides some pertinent background information for this problem. Two parallels are uminated by light composed of two wavelengths One wavelength is AA 69m. The other wavelength is A and is unknown. On a viewing screen, the light with wavelength 6 produces the order brugt fringe at the same place where the light with wavelength a produces its fourth dark ringe. The fringes are counted relative to the...

  • Ten narrow slits are equally spaced 1.50 mm apart and illuminated with blue light of wavelength...

    Ten narrow slits are equally spaced 1.50 mm apart and illuminated with blue light of wavelength 473 nm. The width of bright fringes can be calculated as the separation between the two adjacent dark fringes on either side. Find the angular widths (in rad) of the second- and fourth-order bright fringes. second-order bright fringe rad ____ fourth-order bright fringe rad _____

  • 19. Two narrow slits are separated by 0.250 mm and illuminated with green light of wavelength...

    19. Two narrow slits are separated by 0.250 mm and illuminated with green light of wavelength 555 nm. The light passes through the slits and shines on a screen 2.00 m behind the slits. 8. If the zeroth order bright tringe falls on the screen at angle 9 -0 radians (straight in front of the slits), at what angle (in radians) does the rst order bright fringe appear?

  • Two slits are illuminated by light that consists of two wavelengths. One wavelength is known to...

    Two slits are illuminated by light that consists of two wavelengths. One wavelength is known to be 436 nm. On a screen, the fourth minimum of the 436-nm light coincides with the third maximum of the other light. What is the wavelength of the other light?

  • Two narrow, parallel slits separated by 0.850 mm are illuminated by 570-nm light, and the viewing...

    Two narrow, parallel slits separated by 0.850 mm are illuminated by 570-nm light, and the viewing screen is 2.70 m away from the slits. (a) What is the phase difference between the two interfering waves on a screen at a point 2.50 mm from the central bright fringe? rad (b) What is the ratio of the intensity at this point to the intensity at the center of a bright fringe? I Imax

  • Two narrow slits are illuminated by a laser with a wavelength of 517 nm. The interference...

    Two narrow slits are illuminated by a laser with a wavelength of 517 nm. The interference pattern on a screen located x = 5.50 m away shows that the fourth-order bright fringe is located y = 9.40 cm away from the central bright fringe. Calculate the distance between the two slits. The screen is now moved 1.7 m further away. What is the new distance between the central and the fourth-order bright fringe?

  • Two narrow slits are illuminated by a laser with a wavelength of 542 nm. The interference pattern...

    Two narrow slits are illuminated by a laser with a wavelength of 542 nm. The interference pattern on a screen located x=5.10 m away shows that the fourth-order bright fringe is located y = 6.10 cm away from the central bright fringe. Calculate the distance between the two slits.The screen is now moved 2.4 m further away. What is the new distance between the central and the fourth-order bright fringe?

  • need help with these physics problems

    1a. Two narrow slits are illuminated by a laser with a wavelength of 544 nm. The interference pattern on a screen located x = 4.70 m away shows that the fourth-order bright fringe is located y = 6.20 cm away from the central bright fringe. Calculate the distance between the two slits. First you have to calculate the angle of the maximum. Then you can use the formula for bright fringes of double slits.1b. The screen is now moved 1.1...

  • In a Young's double-slit experiment, a set of parallel slits with a separation of 0.132 mm...

    In a Young's double-slit experiment, a set of parallel slits with a separation of 0.132 mm is illuminated by light having a wavelength of 566 nm and the interference pattern observed on a screen 4.50 m from the slits. (a) What is the difference in path lengths from the two slits to the location of a fourth order bright fringe on the screen? μm (b) What is the difference in path lengths from the two slits to the location of...
