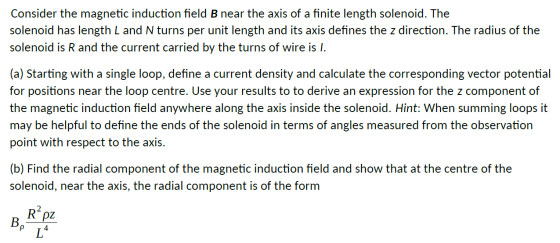

Experiment 6: Magnetic induction To investigate the magnetic induction voltage on a coil placed inside a...
Experiment 6: Magnetic induction To investigate the magnetic induction voltage on a coil placed inside a long cylindrical solenoid as a function of frequency and magnitude of the magnetic field, an experimental set-up is designed as in Figure. Here, L = 2m and N50 are the length and number of turns of the solenoid; and N2-100 and A=25cm2 are number of turns and cross- sectional area of the coil. TE an alternating current I(t)=losin(20ft) of frequency f=1kHz is applied to...
Course Home <Magnetic Induction and Maxwell's equations homework The Magnetic Field between Capacitor Plates 9 of...
Course Home <Magnetic Induction and Maxwell's equations homework The Magnetic Field between Capacitor Plates 9 of 14 Review Constants Part A A capacitor consists of two parallel circular plates of radius The capacitor has capacitance and is being charged in a simple circuit loop The circuit has an initial current lo and consists of the capacitor a battery with voltage V and a resistor with resistance R. as shown in (Figure 1) What is the magnetic field in the middle...
5 Course Home <Magnetic Induction and Maxwell's equations homework Exercise 29.3 The magnetic flux through a...
5 Course Home <Magnetic Induction and Maxwell's equations homework Exercise 29.3 The magnetic flux through a coil is given by n-at pe"where a and are constants Part B If the induced emf is zero at t -0.500 s, how is a related to B? Express your answer in seconds squared VALO 1 Submit Previous Answers Request Answer * Incorrect; Try Again; 4 attempts remaining
a. IUU 6.55 .106 U. UJ Find the magnetic induction at the point o if the...
a. IUU 6.55 .106 U. UJ Find the magnetic induction at the point o if the wire carrying a current i has the shape shown in figure. The radius of the curved part of the wire is R, the lincar parts of the wire are very long. a por 2 d. Hoi 47R . b. thi 3 e. tot 15 AR 3. Find the magnetic induction of the field at the point of a i figure the
Experiment Electromagnetic Induction Name The North magnetic pole of a compass indicates the direction of the...
Experiment Electromagnetic Induction Name The North magnetic pole of a compass indicates the direction of the magnetic field. SO) 1. Sketch magnetic field lines around a magnet. Include direction. 2. Sketch magnetic field lines through and around a coil carrying current as shown. Include direction.
Case 1: when the magnetic induction varies linearly with time, as in each segment of the...
Case 1: when the magnetic induction varies linearly with time, as in each segment of the sawtooth wave, the induced voltage is constant in alternating directions, thus varying as a square wave in sync with the input signal. WWW www Q1.1: why does a linear change in voltage create an induced steady volt output at the probe? Explain with the use of the proper equation. Q1.2: Observe that during the upward rise of the "driving waveform at the big coils...
This is my experiment about Earth magnetic field induction by tangensgalvonometer. I must additio...
This is my experiment about Earth magnetic field induction by
tangensgalvonometer. I must additional conclusion for my
experimental values and Bo=1.68x10^-5 T.
Could you compare Bo=1.68x10^-5 and my experimental values.
experiment did same city which is Bo=1.68x10^-5
I need conclusion about this case. thank you.
Results: Bo (1-1 )-7.66x10 Be(l 2-0107 Be (1-3 )-1.72x10 · Be (1-3, 2 )" f,79x16 Bo (Rī9小1.GC-er「 Measurement of the horizontal component of Earth's magnetic field induction by tangensgalvanometer In each point the Earth's magnetic...
Magnetic induction lab: 5 questions A vertical bar magnet is dropped through the center of a...
Magnetic induction lab: 5 questions
A vertical bar magnet is dropped through the center of a horizontal loop of wire, with its south pole leading. At the moment just before the south pole passes through the loop, what is the direction of the induced current in the loop (viewed from above)? 2. Explain your answer to the previous question. 3. A vertical bar magnet is dropped through the center of a horizontal loop of wire, with its south pole leading....
• (10 points) The magnetic induction is defined by the Lorentz force equations: F = q(V...
• (10 points) The magnetic induction is defined by the Lorentz force equations: F = q(V x B. Carrying out three experiments, we find that if v=ēj, F/q=2ēz – 4ēz (1) ū=ēz, F/9 = 4ēj - ēz v = ēz, F/q=ēz – 27 From the results of these three separate experiments, calculate the magnetic induction B.
Q2: EM Induction Problem Statement A uniform magnetic field is applied perpendicular to the plane of...
Q2: EM Induction Problem Statement A uniform magnetic field is applied perpendicular to the plane of a 60-turn circular coil with a radius of 6.0 cm and a resistance of 0.60 12. If the magnetic field increases uniformly from 0.20 T to 1.8 T in 0.20 s, what is the magnitude of the emf induced in the coil? Visual Representation • Draw a sketch or circuit diagram. • Indicate the direction of the applied magnetic field • Is the flux...
Experiment 6: Magnetic induction To investigate the magnetic induction voltage on a coil placed inside a long cylindrical solenoid as a function of frequency and magnitude of the magnetic field, an experimental set-up is designed as in Figure. Here, L = 2m and N50 are the length and number of turns of the solenoid; and N2-100 and A=25cm2 are number of turns and cross- sectional area of the coil. TE an alternating current I(t)=losin(20ft) of frequency f=1kHz is applied to...
Course Home <Magnetic Induction and Maxwell's equations homework The Magnetic Field between Capacitor Plates 9 of 14 Review Constants Part A A capacitor consists of two parallel circular plates of radius The capacitor has capacitance and is being charged in a simple circuit loop The circuit has an initial current lo and consists of the capacitor a battery with voltage V and a resistor with resistance R. as shown in (Figure 1) What is the magnetic field in the middle...
5 Course Home <Magnetic Induction and Maxwell's equations homework Exercise 29.3 The magnetic flux through a coil is given by n-at pe"where a and are constants Part B If the induced emf is zero at t -0.500 s, how is a related to B? Express your answer in seconds squared VALO 1 Submit Previous Answers Request Answer * Incorrect; Try Again; 4 attempts remaining
a. IUU 6.55 .106 U. UJ Find the magnetic induction at the point o if the wire carrying a current i has the shape shown in figure. The radius of the curved part of the wire is R, the lincar parts of the wire are very long. a por 2 d. Hoi 47R . b. thi 3 e. tot 15 AR 3. Find the magnetic induction of the field at the point of a i figure the
Experiment Electromagnetic Induction Name The North magnetic pole of a compass indicates the direction of the magnetic field. SO) 1. Sketch magnetic field lines around a magnet. Include direction. 2. Sketch magnetic field lines through and around a coil carrying current as shown. Include direction.
Case 1: when the magnetic induction varies linearly with time, as in each segment of the sawtooth wave, the induced voltage is constant in alternating directions, thus varying as a square wave in sync with the input signal. WWW www Q1.1: why does a linear change in voltage create an induced steady volt output at the probe? Explain with the use of the proper equation. Q1.2: Observe that during the upward rise of the "driving waveform at the big coils...
This is my experiment about Earth magnetic field induction by
tangensgalvonometer. I must additional conclusion for my
experimental values and Bo=1.68x10^-5 T.
Could you compare Bo=1.68x10^-5 and my experimental values.
experiment did same city which is Bo=1.68x10^-5
I need conclusion about this case. thank you.
Results: Bo (1-1 )-7.66x10 Be(l 2-0107 Be (1-3 )-1.72x10 · Be (1-3, 2 )" f,79x16 Bo (Rī9小1.GC-er「 Measurement of the horizontal component of Earth's magnetic field induction by tangensgalvanometer In each point the Earth's magnetic...
Magnetic induction lab: 5 questions
A vertical bar magnet is dropped through the center of a horizontal loop of wire, with its south pole leading. At the moment just before the south pole passes through the loop, what is the direction of the induced current in the loop (viewed from above)? 2. Explain your answer to the previous question. 3. A vertical bar magnet is dropped through the center of a horizontal loop of wire, with its south pole leading....

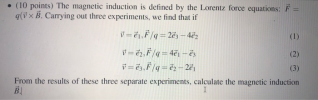

• (10 points) The magnetic induction is defined by the Lorentz force equations: F = q(V x B. Carrying out three experiments, we find that if v=ēj, F/q=2ēz – 4ēz (1) ū=ēz, F/9 = 4ēj - ēz v = ēz, F/q=ēz – 27 From the results of these three separate experiments, calculate the magnetic induction B.
Q2: EM Induction Problem Statement A uniform magnetic field is applied perpendicular to the plane of a 60-turn circular coil with a radius of 6.0 cm and a resistance of 0.60 12. If the magnetic field increases uniformly from 0.20 T to 1.8 T in 0.20 s, what is the magnitude of the emf induced in the coil? Visual Representation • Draw a sketch or circuit diagram. • Indicate the direction of the applied magnetic field • Is the flux...
