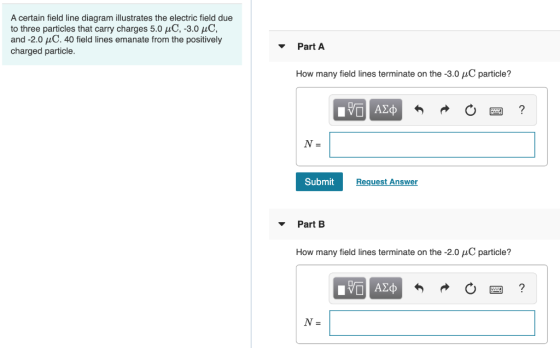

A certain field line diagram illustrates the electric field due to three particles that carry charges 5.0 uC, -3.0 uc, and -2

science physics

Answer 1

Answer #1

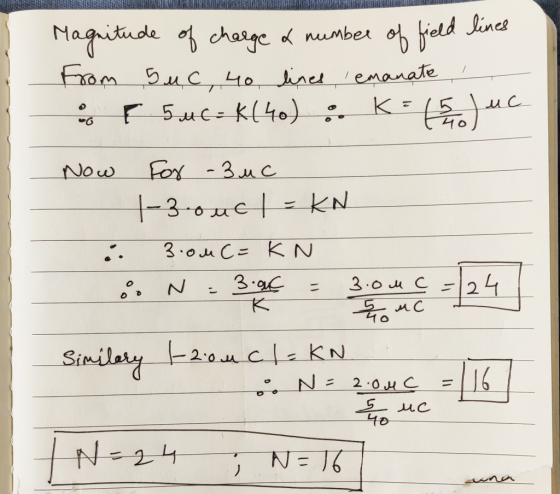

RISALA Magnitude of charge a number of field lines from Suc, 40 lines emanate or 5.uc-k(40) : K=15.) uc Now For -3 uc _-_|-Bo

Answer 2

Similar Homework Help Questions

Part A Constants Periodic Table A certain field line diagram illustrates the electric field due to...

Part A Constants Periodic Table A certain field line diagram illustrates the electric field due to three particles that carry charges 5.0 C -3.0 uC, and -2.0 LC. 25 field lines emanate from the positively charged particle. How many field lines terminate on the -3.0 C particle? Submit Request Answer Part B How many field lines terminate on the -2.0 C particle? Submit Request Answer
Three point charges, Q1 =-1.04C, Q2 = - 2.0 C, and Q3 = +3.0 C are...

Three point charges, Q1 =-1.04C, Q2 = - 2.0 C, and Q3 = +3.0 C are placed as shown in the figure below. (k =1/480 = 8.99 x 10ºN.mp/C) Q 0.500 m Q 0.250 m 0.500 m Part A Find the x component of the electric field in N/C at the origin. EVO AEO ? Submit Request Answer Part B Find the y component of the electric field in N/C at the origin. IVO ALO ? Submit Request Answer
Need help with all please!! Two charges are located along the x axis as shown below....

Need help with all please!! Two charges are located along the x axis as shown below. Determine the location, X, where the net electric field due to these charges is zero. х *1 = 21 m + x2 = 29 m + 92=-25 uc 0 91 = +9.04C k 1911 k |92 Equation: Solve for a (x1-x)? (x2-x)? Please take the absolute values of the charges. Note that x1 = +5.0 m and x2 = + 8.0 m O At...

The figure shows three particles with charges Q1 and Q2 with the electric field lines shown....

The figure shows three particles with charges Q1 and Q2 with the electric field lines shown. What is the ratio of Q4/Q2? O 1:4 o 1:1 O 8:4 o 2:4 04:1
PLEASE ANSWER ALL OF THE QUESTIONS Question 9 2 pts Consider the two charges shown in...

PLEASE ANSWER ALL OF THE QUESTIONS Question 9 2 pts Consider the two charges shown in the drawing. Which of the following statements correctly describes the direction of the electric force acting on the two charges? 9, 92 The force on 91 points to the left and the force on 92 points to the right. The force on 91 points to the left and the force on 92 points to the left. The force on 91 points to the right...
Find the total electric field at point P caused by the three point charges. Express your...

Find the total electric field at point P caused by the three point charges. Express your answer in unit vector notation. +7.5 uc 4.0 cm 2.0 cm P 3.0 cm +1.5 uc 6.0 cm -2.5 uc

7. The diagram below shows the electric field lines associated with three charges. The magnitude of...

7. The diagram below shows the electric field lines associated with three charges. The magnitude of the charge on qB is 6.0 ?C. What is the magnitude and sign of qA? [2.0 marks] I know that the Sign is POSITIVE but how could I find the Magnitude ?
l Review The electric field lines surrounding three charges are shown in the figure. The center...

l Review The electric field lines surrounding three charges are shown in the figure. The center charge is g:-24.8 μC. Part B E field lines Find gh Express your answer to three significant figures 91 12 13 AC Submit Request Answer Part C Find g3 虹= AC
At a particular moment, three charged particles are located as shown in the figure below. Q-2.0...

At a particular moment, three charged particles are located as shown in the figure below. Q-2.0 C, Q+3.0 uC, and Q-4.5 uC. Vour answers to the following questions should be vectors. (Recall that 1 pC 1x 10 C. Assume that the +x axis is to the right, the +y axis is up along the page and the +z axis points into the page. Express your answers in vector form.) physf AX Operat Symba (a) Find the electric field at the...
