Question

A 10kg bar with its weight acts at its center as shown in the graph. A rope is connected at the bottom of the bar (Point A) near the floor. The surfaces are smooth. (A) Plot the free-body diagram of the bar. (5pts) (B) Let the length of the bar equals 2m. What is the tension of the rope at static equilibrium? (5pts) Hint: The normal force due to the angled corner (point B) is neither horizontal nor vertical to th plane. It is perpendicular to the bar
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

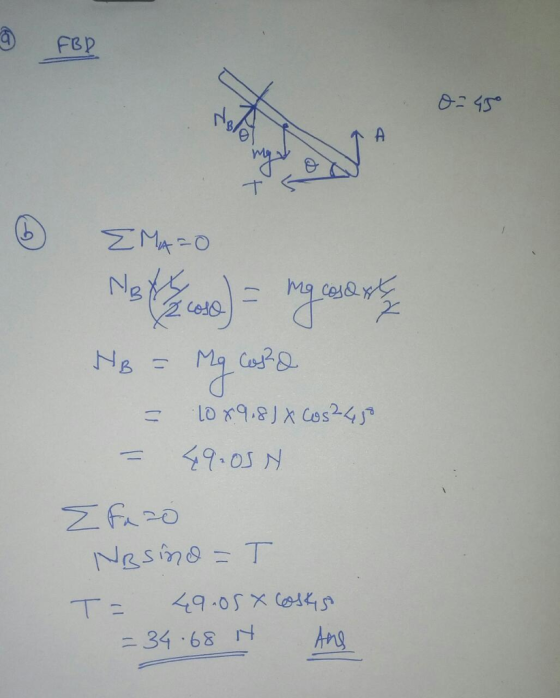

尼 二34-68 广ㅓ Hng

0 0
