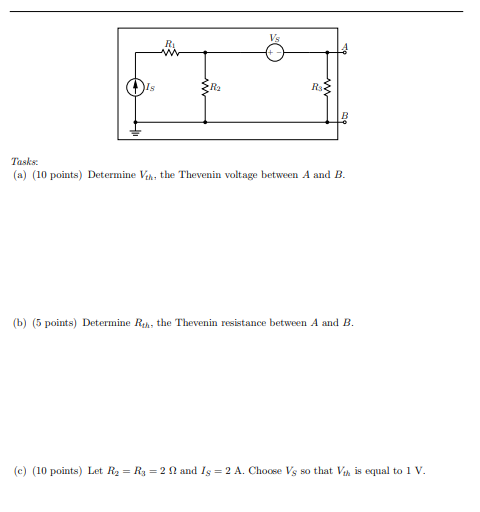

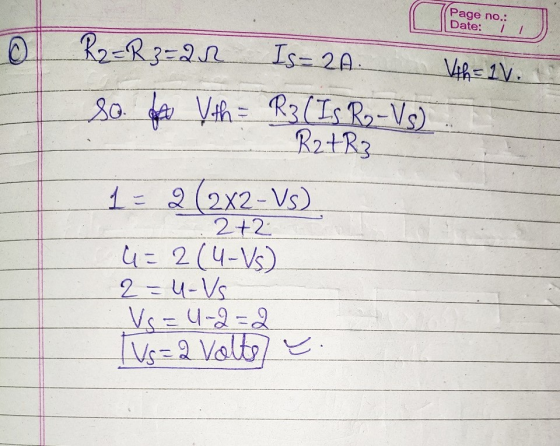

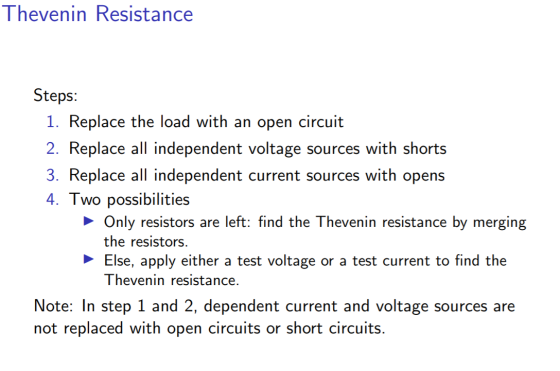

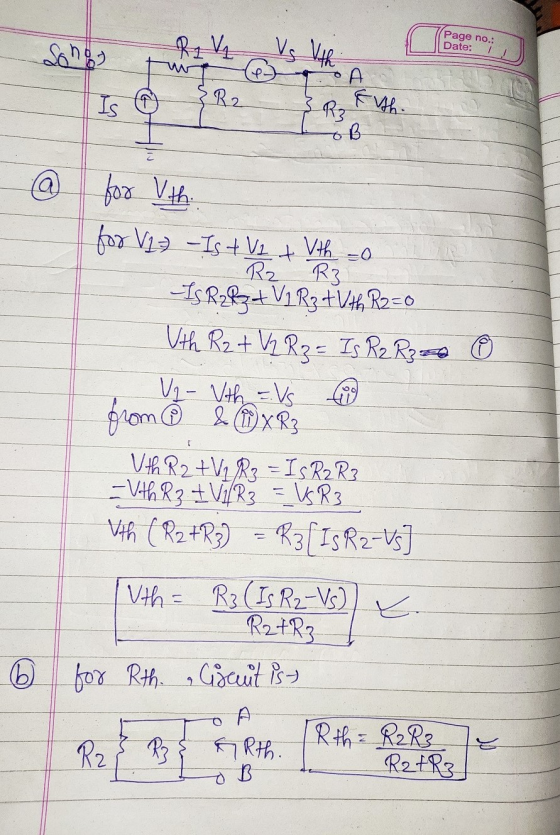

pls show work clearly Thevenin Resistance Steps: 1. Replace the load with an open circuit 2....
C.la For the circuit of Figure 1, choose values for resistors R1, R2, and R3(all resistances must be greater than one Kilo ohm). Given that the voltage source Vs1 = 8V and Vs2 = 10V determine the output voltage Vout. C.1b For the same resistor values Ri, R2, and Rs you chose in part C.la Given that the voltage source Vsi = 8V and Vs2 = 10V, use Figure 2(a) to determine the output voltage Vout/ and Figure 2(b) to determine the output voltage Vout2. Discussion:...
2. (30 points) A voltage source v, with Thevenin resistance Rs = 5k 2 is connected to a two-stage amplifier. A trans-conductance stage is connected to the source and have an input resistance Ril = 10k 12, a short-circuit trans-conductance gain Gmi = 50m A/V and an output resistance R1 = 50k 12. The second trans-resistance stage is connected to the first stage and to the load RL = 7k 12, and have an input resistance Ri2 = 25k 12,...
Exercise 5 The resistances in this circuit are: Ri battery's emf is 80. V 25 Q, R2 = 11 Q, R3 = 40. 2, R4=72 Q, and Rs = 64 Q. The a) Predict without calculation: which resistors, if any, will have the same current, and which, if any, will have the same voltage? Explain your reasoning. b) [10 points] Calculate the voltage across each of the resistors. For full credit, redraw the circuit each time you replace two or...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
V1 = 20 V2 = 25
EXPERIMENT NO. 6 Thevenin & Norton Theorem Introduction Any linear network having a number of voltage, current sources and resistors can be replaced by a simple equivalent circuit consisting of a single voltage source in series with a resistance, where the value of the voltage source is equalto the open circuit voltage and the resistance is the equivalent resistance measuredbetweenthe open circuit terminals with all independent deactivated Objective To verify Thevenin's and Norton's theoremusing...
Fall 2019 ECEN 206 Lab 4 Thevenin Equivalent Circuits Due First week of November Introduction: This lab focuses on the Thevenin equivalent circuit and maximum power transfer theorems Complex circuits are often replaced with their Thevenin equivalent to simplify analysis. For example, in the analysis of large industrial power systems the Thevenin equivalent is used in short circuit studies. Maximum power transfer is also an important concept which allows the designer to determine an optimal design when power is a...
Learning Goal:
To learn to calculate the equivalent resistance of the circuits
combining series and parallel connections.
Resistors are often connected to each other in electric
circuits. Finding the equivalent resistanceof
combinations of resistors is a common and important task.
Equivalent resistance is defined as the single resistance that can
replace the given combination of resistors in such a manner that
the currents in the rest of the circuit do not change.
Finding the equivalent resistance is relatively straighforward if...
I JUST NEED THE CORRECT ANSWER NO NEED FOR JUSTIFICATION
Question 1 Not yet answered Marked out of 8.00 Flag question Thevenin resistance of a circuit containing only independent sources is found by then calculating the resistance seen from the terminals of the circuit Select one: a. Opening all current sources b. Shorting all voltage sources c. Opening all voltage sources and shorting all current sources d. Shorting all voltage sources and opening all current sources Question 2 Not yet...
Figure 2 shows a feedback amplifier circuit. Rs is the source resistor and R, is the load resistor RS Vs VI RL OPAMP R2 R1 RM R3 R4 Step 1: open-loop and closed-loop circuits identification 1.1 Identify the source, the load, and the closed-loop amplifier 1.2 Identify the open-loop amplifier (**A" eireuit) and the feedback network (B" eircuit) in the closed-loop amplifier 1.3 Identify the connection type between the "A" circuit and the "B" circuit at both the input and...
