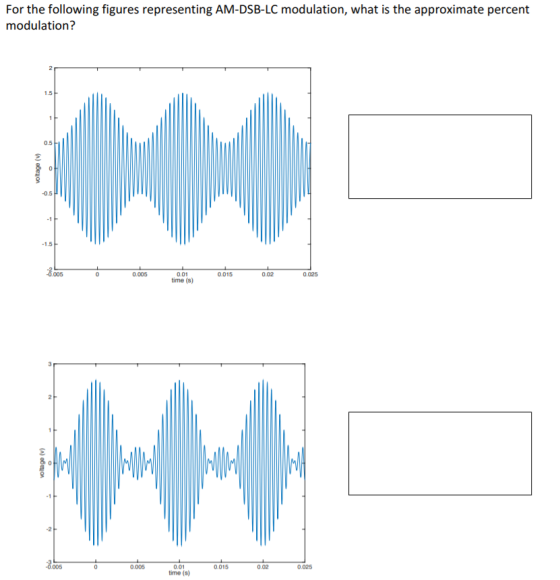

For the following figures representing AM-DSB-LC modulation, what is the approximate percent modulation? voltage (V) time...

Question

Question

For the following figures representing AM-DSB-LC modulation, what is the approximate percent modulation? voltage (V) time (S)

engineering Electrical-Engineering

Answer 1

Answer #1

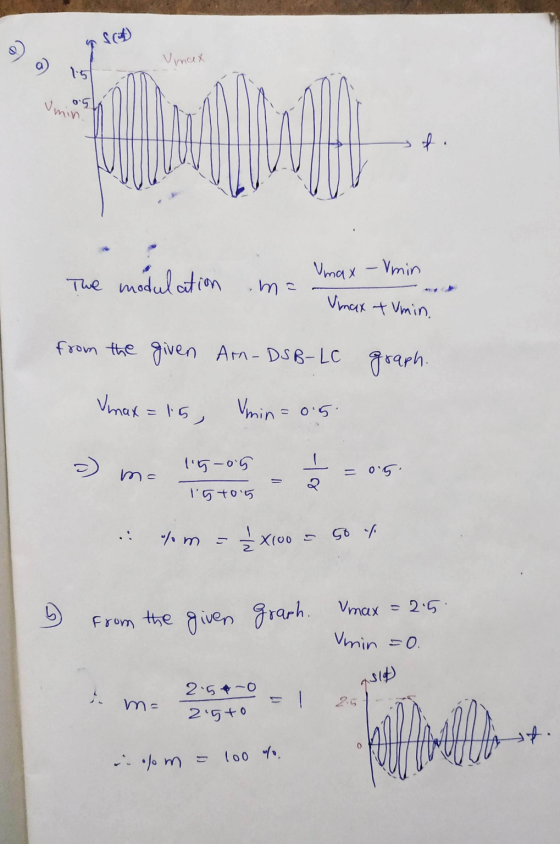

Vimax min The modulation .ma Vmax - Vmin - Vmax tumin. graph. from the given Arm- DSB-LC Vimax = 15, Vmin=0.5. a) ma 15-05-I
