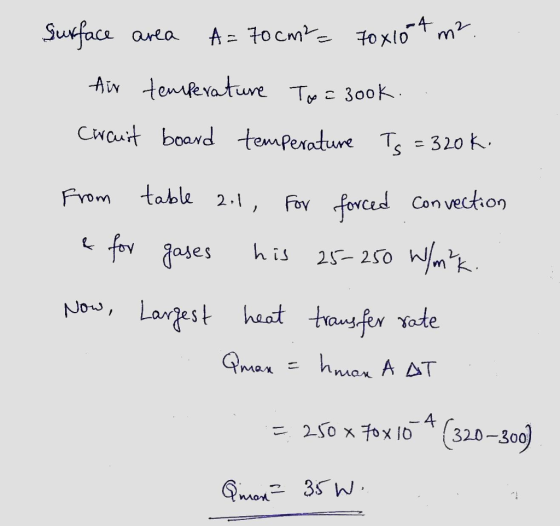

A fan forces air over a computer circuit board with surface area of 70 cm2 to...
A fan forces air over a computer circuit board with surface area
of 70 cm2 to avoid overheating. The air temperature is 300 K while
the circuit board surface temperature is 320 K.Using data from
Table 2.1 (also shown in the hint), determine the following.
The largest heat transfer rate, in W, that might be encountered for
this forced convection.
Homework Answers
Add Answer to:
A fan forces air over a computer circuit board with surface area
of 70 cm2 to...
3. A water heater is covered with insulation boards over a total surface area of 3...
3. A water heater is covered with insulation boards over a total surface area of 3 m. The board is 5.3 centimeter thick. The inside board surface is at 69'C, and the board material has a conductivity of 0.08 W/m-K. If the heat loss is 200 W, determine the outside surface temperature. Given A= 3m? T= 69°C Tonto? K= 0.08 W/mk Q=2oow 4. Determine the total rate of heat transfer from a person standing in a breezy room at 20°C...
A 69-cm x 69-cm circuit board that contains 121 square chips on one side is to...
A 69-cm x 69-cm circuit board that contains 121 square chips on one side is to be cooled by combined natural convection and radiation by mounting it on a vertical surface in a room at 25°C. Each chip dissipates 0.18 W of power, and the emissivity of the chip surfaces is 0.7. Assume the heat transfer from the back side of the circuit board to be negligible, and the temperature of the surrounding surfaces to be the same as the...
During its manufacture, plate glass at 600°C is cooled by passing air over its surface such...
During its manufacture, plate glass at 600°C is cooled by passing air over its surface such that the convection heat transfer coefficient is h. To prevent cracking, it is known that the temperature gradient must not exceed 15 °C/mm at any point in the glass during the cooling process. The thermal conductivity of the glass is 1.4 W/mK and its surface emissivity is 0.75. The temperature of the air that is used for the cooling is 315 °C. Assume that...
5) A certain automobile has a 4 mm thick glass window with a surface area of...
5) A certain automobile has a 4 mm thick glass window with a surface area of 2.8 m². The outside temperature is 32°C while the passenger compartment is maintained at 22°C. The convection heat transfer coefficient on the exterior window surface is h = 90 W/(m²K). Determine the heat gain through the windows when the interior convection heat transfer coefficient is h = 15 W/(m²K). By controlling the air flow in the passenger compartment the interior heat transfer coefficient can...
Forced air at T = 25°C and V = 13 m/s is used to cool electronic...
Forced air at T = 25°C and V = 13 m/s is used to cool electronic elements on a circuit board. One such element is a chip, 4 mm x4 mm, located 120 mm from the leading edge of the board. Experiments have revealed that flow over the board is disturbed by the elements and that convection heat transfer is correlated by an expression of the form Nuz = 0.04 Re0.85 Pp1/3 V.T. 3 V,T 1 = 4 mm Chip...
Problem 2: A small surface A1, with area 7 cm2, emits radiation as a blackbody at 800K. Part of its radiation hits anot...
Problem 2: A small surface A1, with area 7 cm2, emits radiation as a blackbody at 800K. Part of its radiation hits another small surface A2, with area 7 cm2, which is oriented as shown in the figure below. (a) Determine the solid angle of A2 as viewed from Aı. (b) Determine the radiation heat transfer rate (in W) from A1 to A2. Hint: you can assume the surfaces are small relative to their separation distance Problem2 02-60A2 r-80 cm...
A 70-mm diameter hot solid rod is suspended in a room in which the air and walls are at 25°C
A 70-mm diameter hot solid rod is suspended in a room in which the air and walls are at 25°C., The surface temperature of the rod and its emissivity are 200°C and 0.8, respectively. The associated coefficient of convective heat transfer from the rod surface to the air is 15 W/m2.K. If the total heat loss from the surface area of the rod is estimated to be 947 W, what is the length of the rod? Area of both sides of the...
A square, thin electronic chip is mounted to a substrate that is installed in a computer box whose interior walls a...
A square, thin electronic chip is mounted to a substrate that is installed in a computer box whose interior walls are maintained at Tr as shown. The chip is heated by an electrical circuit with power input Pelec and cooled by convection and radiation to the surrounding air and walls. The maximum allowable chip surface temperature is 85 °C. Tsur 25°C Substrate Air rad Chip, Pelec T 85°C, E 0.60 L-15 mm T=25°c h-4.2(T,-Ta)4 or qconv h=250 W/m2-K a) Write...
Question 1: Identify the classification of the following heat transfer (convective flow) problems: *Note that there...
Question 1: Identify the classification of the following heat transfer (convective flow) problems: *Note that there may be other modes of heat transfer present (e.g. radiation or conduction), but ignore those effects. For example, a hot ball bearing being dropped from a building roof. Ans. Forced, external convection over a sphere. a. Water flow through a fire hose from a hydrant. b. Heat transfer from a clothes iron sitting on an ironing board. c. Heat transfer from a climber trapped...
3. You have been asked to investigate the feasibility of employing hot air (70 C) forced convecti...
3. You have been asked to investigate the feasibility of employing hot air (70 C) forced convection to produce a dried carrot stick snack food. Based on experiments, you have determined that the combined average overall heat transfer coefficient for a nominal "skinny" carrot (1.4 cm diameter, 14 cm long), when heated from 24 C in 70 C air, is 122 w/m2oK. Assume that the carrot density is 1079 kg/m3, with a specific heat of 3,790 J/kg"к, and thermal conductivity...
3. A water heater is covered with insulation boards over a total surface area of 3 m. The board is 5.3 centimeter thick. The inside board surface is at 69'C, and the board material has a conductivity of 0.08 W/m-K. If the heat loss is 200 W, determine the outside surface temperature. Given A= 3m? T= 69°C Tonto? K= 0.08 W/mk Q=2oow 4. Determine the total rate of heat transfer from a person standing in a breezy room at 20°C...
During its manufacture, plate glass at 600°C is cooled by passing air over its surface such that the convection heat transfer coefficient is h. To prevent cracking, it is known that the temperature gradient must not exceed 15 °C/mm at any point in the glass during the cooling process. The thermal conductivity of the glass is 1.4 W/mK and its surface emissivity is 0.75. The temperature of the air that is used for the cooling is 315 °C. Assume that...
5) A certain automobile has a 4 mm thick glass window with a surface area of 2.8 m². The outside temperature is 32°C while the passenger compartment is maintained at 22°C. The convection heat transfer coefficient on the exterior window surface is h = 90 W/(m²K). Determine the heat gain through the windows when the interior convection heat transfer coefficient is h = 15 W/(m²K). By controlling the air flow in the passenger compartment the interior heat transfer coefficient can...
Forced air at T = 25°C and V = 13 m/s is used to cool electronic elements on a circuit board. One such element is a chip, 4 mm x4 mm, located 120 mm from the leading edge of the board. Experiments have revealed that flow over the board is disturbed by the elements and that convection heat transfer is correlated by an expression of the form Nuz = 0.04 Re0.85 Pp1/3 V.T. 3 V,T 1 = 4 mm Chip...
Problem 2: A small surface A1, with area 7 cm2, emits radiation as a blackbody at 800K. Part of its radiation hits another small surface A2, with area 7 cm2, which is oriented as shown in the figure below. (a) Determine the solid angle of A2 as viewed from Aı. (b) Determine the radiation heat transfer rate (in W) from A1 to A2. Hint: you can assume the surfaces are small relative to their separation distance Problem2 02-60A2 r-80 cm...
A square, thin electronic chip is mounted to a substrate that is installed in a computer box whose interior walls are maintained at Tr as shown. The chip is heated by an electrical circuit with power input Pelec and cooled by convection and radiation to the surrounding air and walls. The maximum allowable chip surface temperature is 85 °C. Tsur 25°C Substrate Air rad Chip, Pelec T 85°C, E 0.60 L-15 mm T=25°c h-4.2(T,-Ta)4 or qconv h=250 W/m2-K a) Write...
Question 1: Identify the classification of the following heat transfer (convective flow) problems: *Note that there may be other modes of heat transfer present (e.g. radiation or conduction), but ignore those effects. For example, a hot ball bearing being dropped from a building roof. Ans. Forced, external convection over a sphere. a. Water flow through a fire hose from a hydrant. b. Heat transfer from a clothes iron sitting on an ironing board. c. Heat transfer from a climber trapped...
3. You have been asked to investigate the feasibility of employing hot air (70 C) forced convection to produce a dried carrot stick snack food. Based on experiments, you have determined that the combined average overall heat transfer coefficient for a nominal "skinny" carrot (1.4 cm diameter, 14 cm long), when heated from 24 C in 70 C air, is 122 w/m2oK. Assume that the carrot density is 1079 kg/m3, with a specific heat of 3,790 J/kg"к, and thermal conductivity...
