Homework Answers
find the initial current. lks2 12V 6V Io Solve problem using superposition
find the initial current.
lks2 12V 6V Io Solve problem using superposition
Find Io in the circuit using mesh current analysis. 6 ΚΩs 12V 36 ΚΩ 6 ΚΩ...
Find Io in the circuit using mesh current analysis.
6 ΚΩs 12V 36 ΚΩ 6 ΚΩ ΛΙ 6 ΚΩ 6 mm 0 312K2 0 4 ma
Use superposition on the circuit below; a) Find the voltage V'1 due to the 12V voltage...
Use superposition on the circuit below; a) Find the voltage V'1 due to the 12V voltage source alone. b) Find the voltage V": due to the 5mA current source alone. c) Find the total voltage V1 due to both sources. 2002 1002 12 4002 VI 5 mA 3002 www
Using superposition, construct a function for Io in terms of the three independent current sources (I2,...
Using superposition, construct a function for Io in terms of the
three independent current sources (I2, I4, and I6).

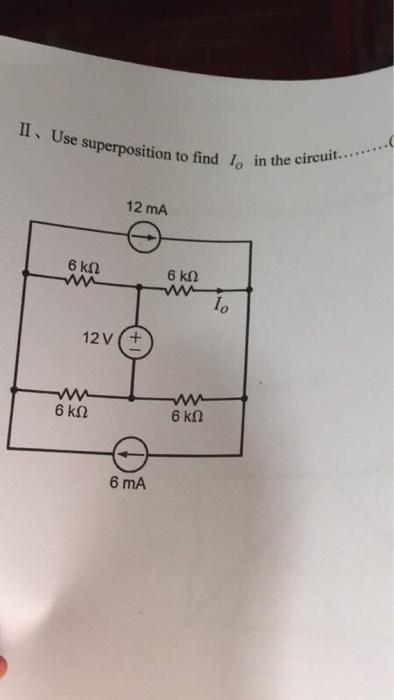

2) Using superposition, construct a function for lo in terms of the three independent current sources (12, l4, and le). 2 mA 4 mA 6 mA

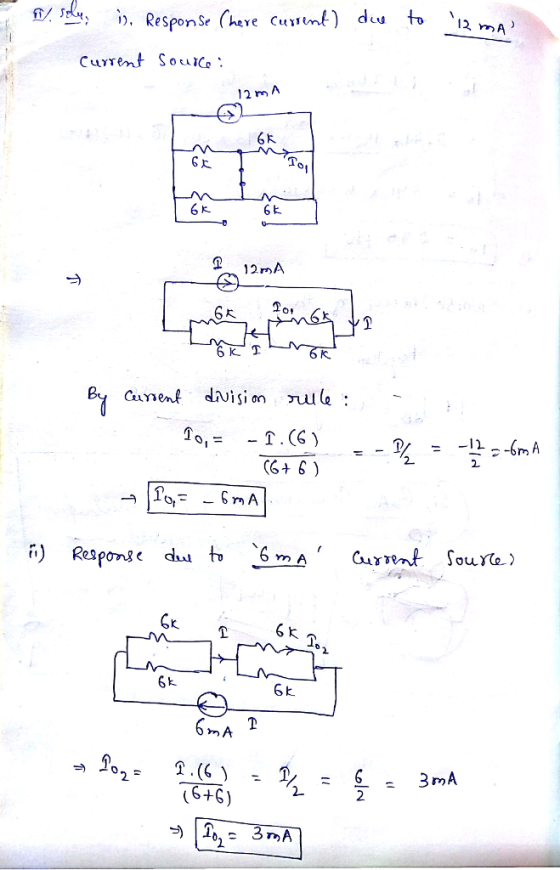

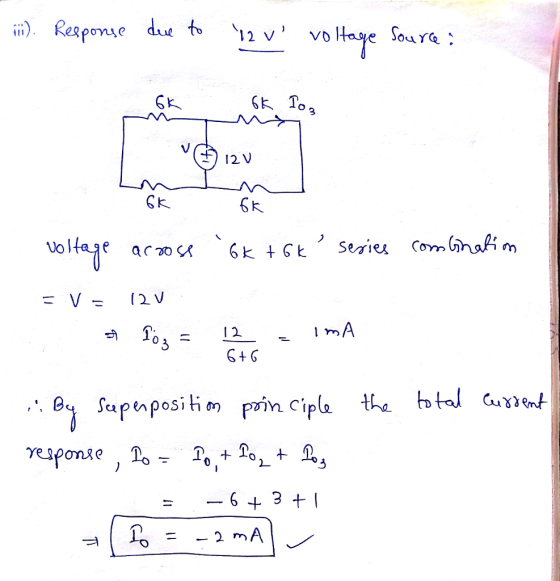

2. Use superposition to find lo in the circuit in Fig. 7.2 12 V 0 6...
2. Use superposition to find lo in the circuit in Fig. 7.2 12 V 0 6 mA 12 V (+ Fig. 7.2
find Vo using thevenins theorem NM- Ο ΚΩ 6 ΚΩ. 5 3 ΚΩ 4 mA 12V...
find Vo using thevenins theorem
NM- Ο ΚΩ 6 ΚΩ. 5 3 ΚΩ 4 mA 12V 12V
Problem 4.95 PSpice Multisim Part A Use the principle of superposition to find the current io...
Problem 4.95 PSpice Multisim Part A Use the principle of superposition to find the current io in the circuit(Figure 1)if ii = 3.6 A泊= 13 A , and U-61 V Express your answer with the appropriate units. iValue Units Submit Request Answer Provide Feedback Figure 1of1 1Ω 5Ω 2012 60Ω 3011
2.20,2.22,2.29,2.62 6 MA Figure P2.18 2.19 Find 11, and 1, in the network in Fig. P2.19....
2.20,2.22,2.29,2.62
6 MA Figure P2.18 2.19 Find 11, and 1, in the network in Fig. P2.19. 12 mA 21. Figure P2.19 2.20 Find Vand V. in the circuit in Fig. P2.20. 2v 8 - 2V + Figure P2.20 2.21 Given the circuit diagram in Fig. P2.21, find the following voltages: V V V V V V V V V and V 8 V 12 V Figure P2.16 17 Find Vw in the circuit in Fig. P2.17. 4V- 12v Figure P2.17...
Use mesh analysis to find Vo in the circuit below. 6 mA + V. - 6...
Use mesh analysis to find Vo in the circuit below. 6 mA + V. - 6 ΚΩ Τ 12v Β) 12 ΚΩ Ι 12 kΩ ΚΑΙ 2 mA T
Part A Use the principle of superposition to find Vo in the circuit (Figure 1)Take u...
Part A Use the principle of superposition to find Vo in the circuit (Figure 1)Take u = 33 V and Express your answer with the appropriate units 6 5 mA Value Units Submit Provide Feedback 1 of 1 ure 2.2 i
find the initial current.
lks2 12V 6V Io Solve problem using superposition
Find Io in the circuit using mesh current analysis.
6 ΚΩs 12V 36 ΚΩ 6 ΚΩ ΛΙ 6 ΚΩ 6 mm 0 312K2 0 4 ma
Use superposition on the circuit below; a) Find the voltage V'1 due to the 12V voltage source alone. b) Find the voltage V": due to the 5mA current source alone. c) Find the total voltage V1 due to both sources. 2002 1002 12 4002 VI 5 mA 3002 www
Using superposition, construct a function for Io in terms of the
three independent current sources (I2, I4, and I6).
2) Using superposition, construct a function for lo in terms of the three independent current sources (12, l4, and le). 2 mA 4 mA 6 mA
2. Use superposition to find lo in the circuit in Fig. 7.2 12 V 0 6 mA 12 V (+ Fig. 7.2
find Vo using thevenins theorem
NM- Ο ΚΩ 6 ΚΩ. 5 3 ΚΩ 4 mA 12V 12V
Problem 4.95 PSpice Multisim Part A Use the principle of superposition to find the current io in the circuit(Figure 1)if ii = 3.6 A泊= 13 A , and U-61 V Express your answer with the appropriate units. iValue Units Submit Request Answer Provide Feedback Figure 1of1 1Ω 5Ω 2012 60Ω 3011
2.20,2.22,2.29,2.62
6 MA Figure P2.18 2.19 Find 11, and 1, in the network in Fig. P2.19. 12 mA 21. Figure P2.19 2.20 Find Vand V. in the circuit in Fig. P2.20. 2v 8 - 2V + Figure P2.20 2.21 Given the circuit diagram in Fig. P2.21, find the following voltages: V V V V V V V V V and V 8 V 12 V Figure P2.16 17 Find Vw in the circuit in Fig. P2.17. 4V- 12v Figure P2.17...
Use mesh analysis to find Vo in the circuit below. 6 mA + V. - 6 ΚΩ Τ 12v Β) 12 ΚΩ Ι 12 kΩ ΚΑΙ 2 mA T
Part A Use the principle of superposition to find Vo in the circuit (Figure 1)Take u = 33 V and Express your answer with the appropriate units 6 5 mA Value Units Submit Provide Feedback 1 of 1 ure 2.2 i
