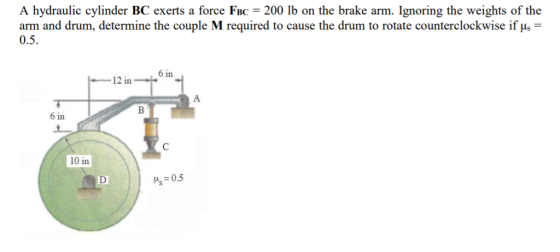

A hydraulic cylinder BC exerts a force FBc200 lb on the brake arm. Ignoring the weights of the arm and drum, determine the couple M required to cause the drum to rotate counterclockwise ifus,- 0.5 6 in 12 in 6 in 10 in

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

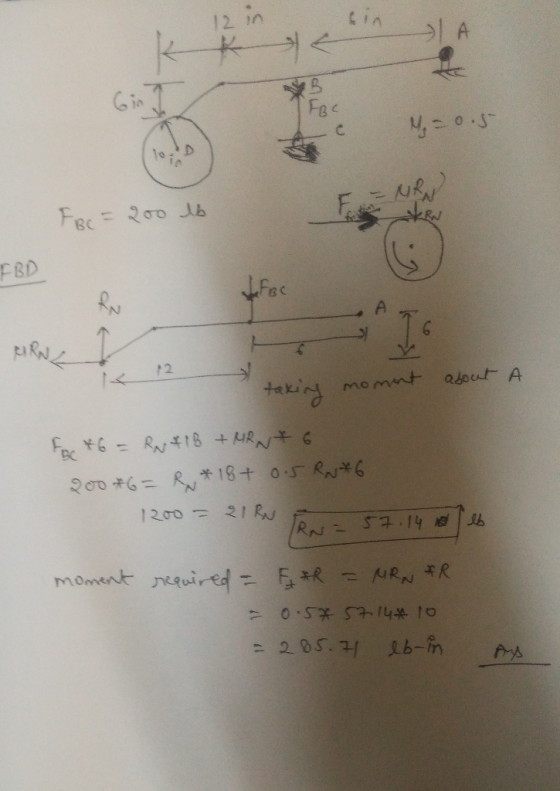

Answer #1
