Question

Determine the moment of inertia of the half-ring of mass m about its diametral axis a-a and about axis b-b through the midpoint of the arc normal to the plane of the ring. The radius of the circular cross section is small compared with r. Use the values m = 7.0 kg and r = 300 mm. m Answers: laa kg.m2 Ibb = kg.m2

Answer 1

Solution:

If you found this solution useful then please upvote

Thank you

Given that,

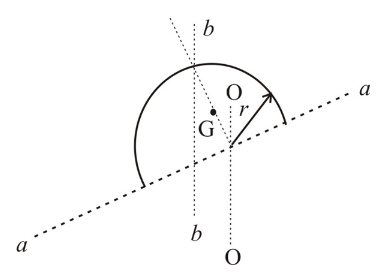

b o a G b a 0

For a full Ring,

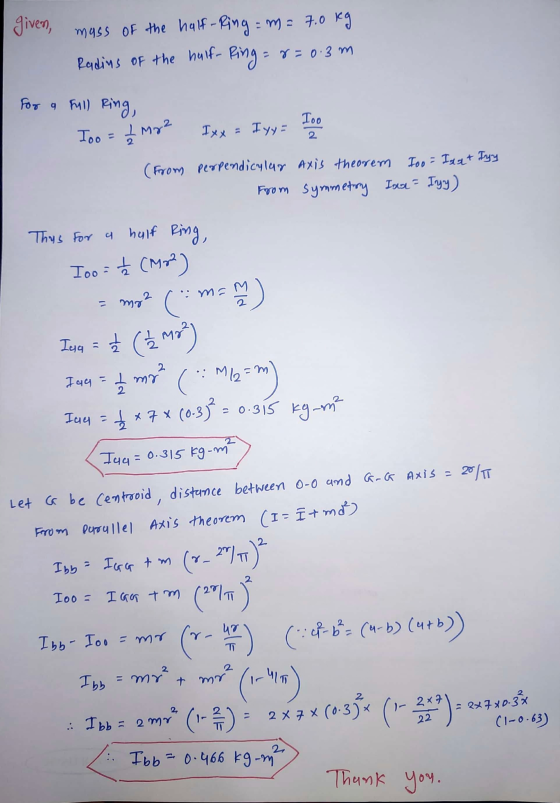

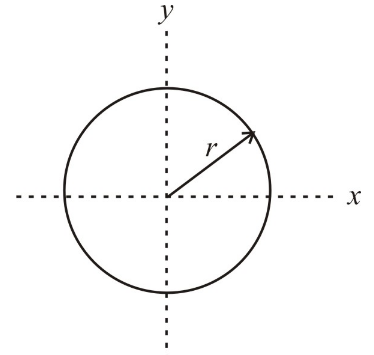

у X
