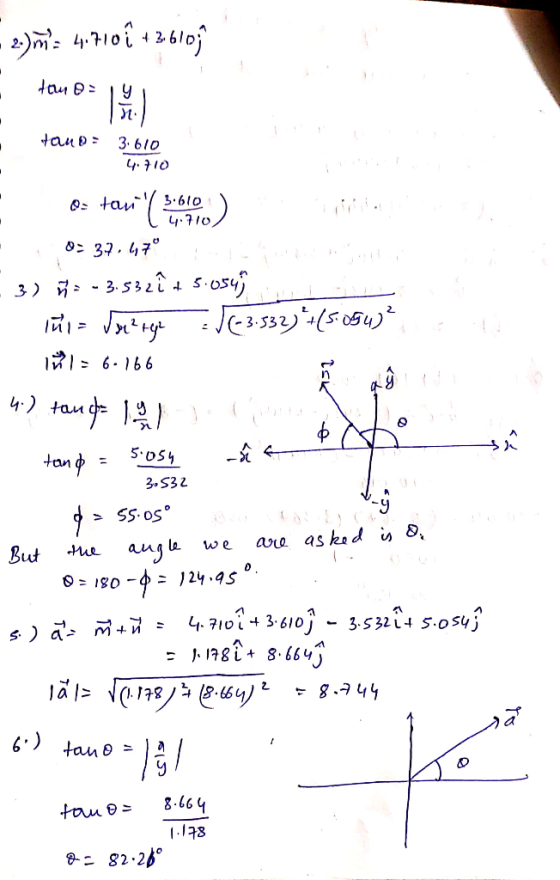

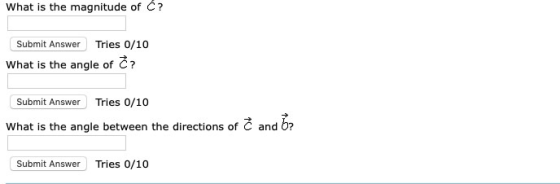

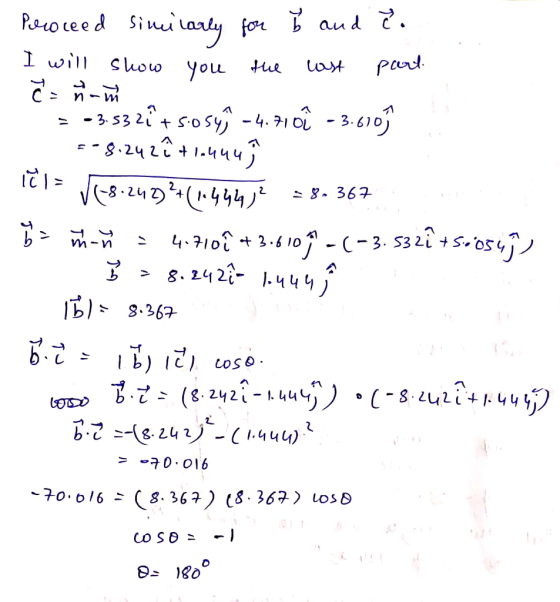

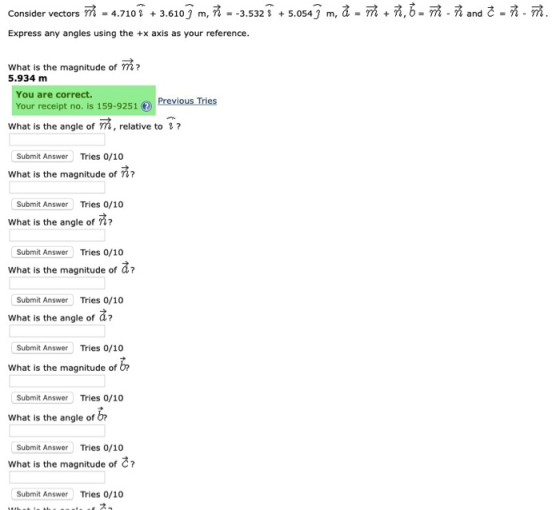

Consider vectors \(\vec{m}=4.710 \hat{\imath}+3.610 \hat{\jmath} \mathrm{m}, \vec{n}=-3.532 \hat{\imath}+5.054 \hat{\jmath} \mathrm{m}, \vec{a}=\vec{m}+\vec{n}, \vec{b}=\vec{m}-\vec{n}\) and \(\vec{c}=\vec{n}-\vec{m} .\) Express any angles using the \(+x\) axis as your reference.
