A 10-mm diameter jet of water is deflected by a homogenous rectangular block (15 mm by...

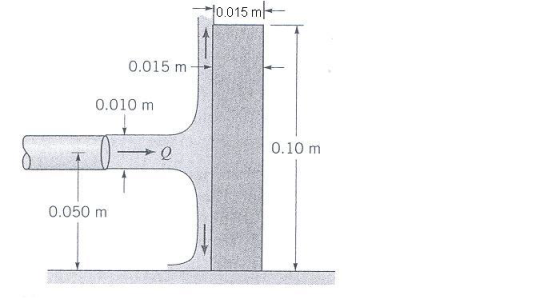

A 10-mm diameter jet of water is deflected by a homogenous
rectangular block (15 mm by 200 mm by 100 mm) that weighs 6 N as
shown in Figure 3. Determine the minimum volume flowrate needed to
tip the block. (
w=1000
kg/m3,
w=9810 N/m3).
Homework Answers
