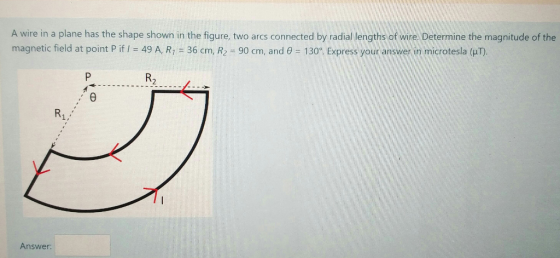

A wire in a plane has the shape shown in the figure, two arcs connected by radial lengths of wire. Determine the magnitude of the magnetic field at point P if I = 49 A, R1 = 36 cm, R2 = 90 cm, and θ = 130°. Express your answer in microtesla (μT).
Homework Answers

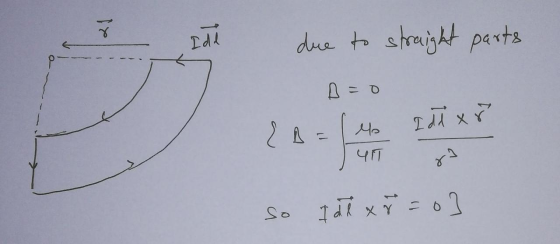

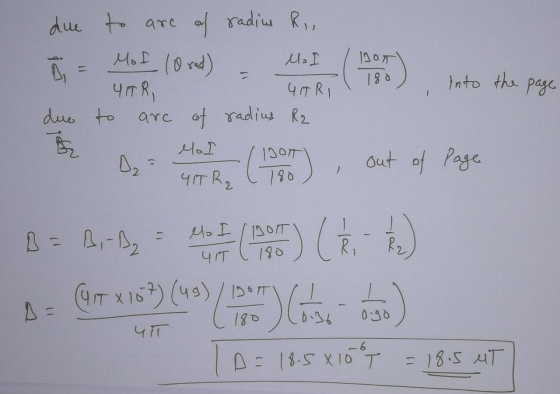

![due to straight parts D = 0 so I dł x 8 =0]](http://img.homeworklib.com/questions/71ca65a0-8e60-11eb-a4eb-672b5b0a01e5.png?x-oss-process=image/resize,w_560)
Add Answer to:
A wire in a plane has the shape shown in the figure, two arcs
connected by...
A wire in a plane has the shape shown in the figure, two arcs connected by...
A wire in a plane has the shape shown in the figure, two arcs
connected by radial lengths of wire. Determine the magnitude of the
magnetic field at point P if I = 49 A, R1 = 36 cm, R2 = 90 cm, and
θ = 130°. Express your answer in microtesla (μT). A wire in a plane
has the shape shown in the figure, two arcs connected by radial
lengths of wire. Determine the magnitude of
A wire in...
A wire in a plane has the shape shown in the figure, two arcs connected by...
A wire in a plane has the shape shown in the figure, two arcs connected by radial lengths of wire. Determine the magnitude of the magnetic field at point P if I = 29 A, R1 = 32 cm, R2 = 63 cm, and 0 = 140°. Express your answer in microtesla (uT). Answer: Check
A thin straight wire of length 32 cm carries a 5.0-A current along its length as...
A thin straight wire of length 32 cm carries a 5.0-A current along its length as shown. Determine the magnitude and direction of the magnetic field at a point 14 cm from the wire. Express your answer in microtesla (uT). r P Answer: Check
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure,...
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure, each carrying currents as shown. For 1. = 5A, 12 = 9A, 1= 13.5A and r = 4cm Part A (Figure 1) What is the magnitude of the magnetic field generated by 1at point O? Express your answer using three significant figures. B = UT Submit Request Answer Part B What is the magnitude of the magnetic field generated by 1, at point o?...
1. (15 points). A wire, in a plane, has the shape shown in figure. The radii...
1. (15 points). A wire, in a plane, has the shape shown in figure. The radii of the semicircular segments are 20.0 cm and 30.0 cm. Current I = 60.0 A. Find (a) (10 points) magnitude and (a) (5 points) direction of the magnetic field at the semicircles center A. 20.0cm Current I 60.0A 30.00m
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure,...
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure, each carrying currents as shown. For I1 = 10A, 12 -9A. I3 = 13.5A and = 4cm; (Figure 1) Part A What is the magnitude of the magnetic field generated by I, at point ? Express your answer using three significant figures. | ΑΣφ ? B- AT Submit Request Answer Figure 1 of 1 Part B What is the magnitude of the magnetic field...
As shown in the figure below, two long parallel wires (1 and 2) carry currents of...
As shown in the figure below, two long parallel wires (1 and 2) carry currents of 11 = 2.70 A and I2 = 5.50 A in the direction indicated. (a) Determine the magnitude and direction of the magnetic field at a point midway between the wires (d = 10.0 cm). magnitude μT direction º counterclockwise from the +x-axis (b) Determine the magnitude and direction of the magnetic field at point P, located d = 10.0 cm above wire 1. magnitude...
A conducting loop in the shape of a square of edge length 81 cm carries a...
A conducting loop in the shape of a square of edge length 81 cm carries a 20-A current clockwise around it. Calculate the magnitude of the magnetic field at the center of the square. Express your answer in microtesla (uT). Answer: Check
(out of page) Figure 1 The long, straight wire shown in Figure 1 above is in...
(out of page) Figure 1 The long, straight wire shown in Figure 1 above is in the plane of the page and carries a current I. Point P is also in the plane of the page and is a perpendicular distance d from the wire. Gravitational effects are negligible. 1. With reference to the coordinate system in Figure 1, what is the direction of the magnetic field at point P due to the current in the wire? Justify your answer....
The two wires shown in the figure below are separated by d = 11.3 cm and...
The two wires shown in the figure below are separated by d = 11.3 cm and carry currents of 1 = 4.85 A in opposite directions. 2d 0 (a) Find the magnitude and direction of the net magnetic field at a point midway between the wires. magnitude ит direction Select (b) Find the magnitude and direction of the net magnetic field at point Pg. 11.3 cm to the right of the wire on the right. magnitude direction Select UT (c)...
A wire in a plane has the shape shown in the figure, two arcs
connected by radial lengths of wire. Determine the magnitude of the
magnetic field at point P if I = 49 A, R1 = 36 cm, R2 = 90 cm, and
θ = 130°. Express your answer in microtesla (μT). A wire in a plane
has the shape shown in the figure, two arcs connected by radial
lengths of wire. Determine the magnitude of
A wire in...
A wire in a plane has the shape shown in the figure, two arcs connected by radial lengths of wire. Determine the magnitude of the magnetic field at point P if I = 29 A, R1 = 32 cm, R2 = 63 cm, and 0 = 140°. Express your answer in microtesla (uT). Answer: Check
A thin straight wire of length 32 cm carries a 5.0-A current along its length as shown. Determine the magnitude and direction of the magnetic field at a point 14 cm from the wire. Express your answer in microtesla (uT). r P Answer: Check
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure, each carrying currents as shown. For 1. = 5A, 12 = 9A, 1= 13.5A and r = 4cm Part A (Figure 1) What is the magnitude of the magnetic field generated by 1at point O? Express your answer using three significant figures. B = UT Submit Request Answer Part B What is the magnitude of the magnetic field generated by 1, at point o?...
1. (15 points). A wire, in a plane, has the shape shown in figure. The radii of the semicircular segments are 20.0 cm and 30.0 cm. Current I = 60.0 A. Find (a) (10 points) magnitude and (a) (5 points) direction of the magnetic field at the semicircles center A. 20.0cm Current I 60.0A 30.00m
Figure shows a semi-circular wire and two long-straight wires perpendicular to the plane of the figure, each carrying currents as shown. For I1 = 10A, 12 -9A. I3 = 13.5A and = 4cm; (Figure 1) Part A What is the magnitude of the magnetic field generated by I, at point ? Express your answer using three significant figures. | ΑΣφ ? B- AT Submit Request Answer Figure 1 of 1 Part B What is the magnitude of the magnetic field...
As shown in the figure below, two long parallel wires (1 and 2) carry currents of 11 = 2.70 A and I2 = 5.50 A in the direction indicated. (a) Determine the magnitude and direction of the magnetic field at a point midway between the wires (d = 10.0 cm). magnitude μT direction º counterclockwise from the +x-axis (b) Determine the magnitude and direction of the magnetic field at point P, located d = 10.0 cm above wire 1. magnitude...
A conducting loop in the shape of a square of edge length 81 cm carries a 20-A current clockwise around it. Calculate the magnitude of the magnetic field at the center of the square. Express your answer in microtesla (uT). Answer: Check
(out of page) Figure 1 The long, straight wire shown in Figure 1 above is in the plane of the page and carries a current I. Point P is also in the plane of the page and is a perpendicular distance d from the wire. Gravitational effects are negligible. 1. With reference to the coordinate system in Figure 1, what is the direction of the magnetic field at point P due to the current in the wire? Justify your answer....
The two wires shown in the figure below are separated by d = 11.3 cm and carry currents of 1 = 4.85 A in opposite directions. 2d 0 (a) Find the magnitude and direction of the net magnetic field at a point midway between the wires. magnitude ит direction Select (b) Find the magnitude and direction of the net magnetic field at point Pg. 11.3 cm to the right of the wire on the right. magnitude direction Select UT (c)...
