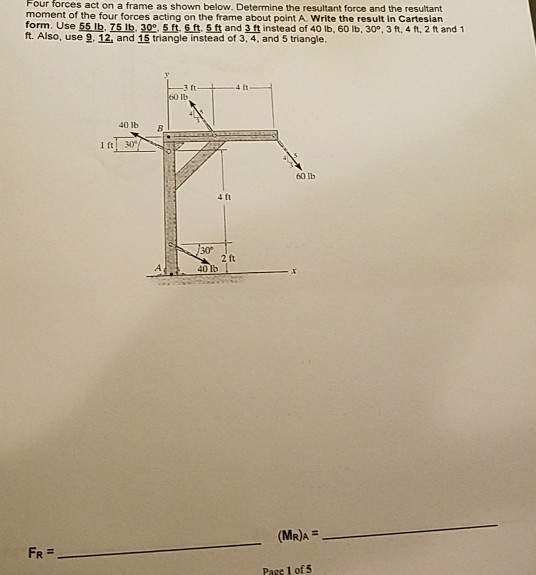

Four forces act on a frame as shown below. Determine the resultant force and the resultant...
Four forces act on the origin of an X-Y Cartesian Coordinate system as pictured below. a....
Four forces act on the origin of an X-Y Cartesian Coordinate system as pictured below. a. Resolve each force into its components along the X and Y axes. b. Find the magnitude and direction of the resultant force acting on the system. Y 300 lb 60° 200 lb 3 0 30 50 lb 400 lb
Determine the tension in 4 cables *2-104. If the resultant of the four forces is FR...
Determine the tension in 4 cables
*2-104. If the resultant of the four forces is FR -360k) lb, determine the tension developed in each cable. Due to symmetry, the tension in the four cables is the same. The answer is: T 105 lb (exactly).) 6 ft 2 2 ft 3 ft 3 ft
The frame supports a distributed load and a tension force of P = 140 lb, as...
The frame supports a distributed load and a tension force of P = 140 lb, as shown in the figure below. 40 75 1b/ D 2 ft В Е -20 If In If 30° Part A Determine the resultant internal loadings acting on the cross sections at point F of the frame. Express your answers, separated by commas, to three significant figures. 190 AED 11 vec ? Ne=, Vp =, MF lb, lb, lb-ft Part B Determine the resultant internal...
The frame supports a distributed load and a tension force of P 125 lb, as shown...
The frame supports a distributed load and a tension force of P 125 lb, as shown in the figure below 4 ft 75 lb/ft 4 2 ft 2 ft l ft 30° Part A Determine the resultant internal loadings acting on the cross sections at point D of the frame. Express your answers, separated by commas, to three significant figures. lb, lb, lb ft SubmitP Ans An X Incorrect; Try Again; 2 attempts remaining Part B Determine the resultant internal...
Find the resultant couple GROUP PROBLEM SOLVING I 2-3ft Given: Two couples act on the beam...
Find the resultant couple

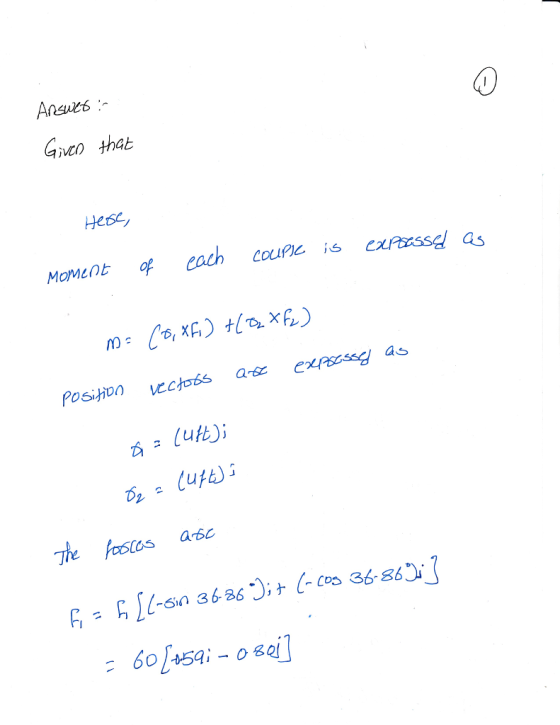

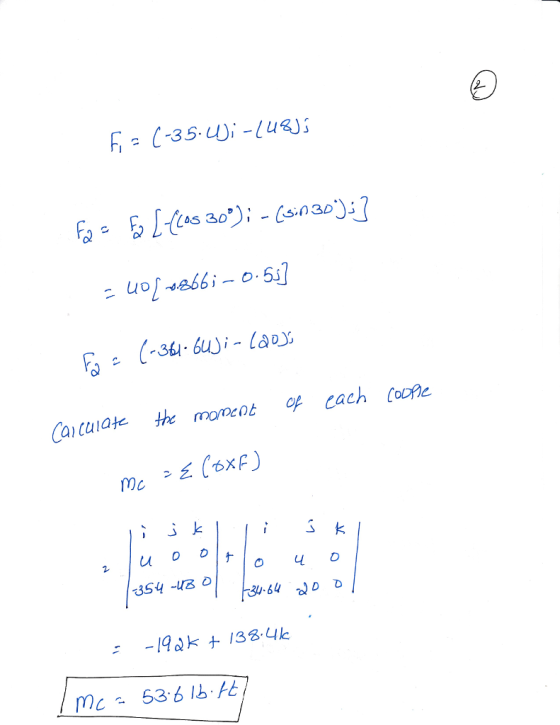

GROUP PROBLEM SOLVING I 2-3ft Given: Two couples act on the beam with the geometry shown and d 4 ft. Find: The resultant couple Sa lb 80 1b Plan: 3 1 80 tb 1) Resolve the forces in x and y-directions so they can be treated as couples. 2) Add these two couples to find the resultant couple
Determine the resultant moment produced by the four forces about point A. 3 ft 6 ft...
Determine the resultant moment produced by the four forces about point A. 3 ft 6 ft 53.13º 10 lb 12 lb 4 ft 5 ft 8 lb 12 13 lb
point B The frame has an original loading system of four applied forces and one applied...
point B The frame has an original loading system of four applied forces and one applied couple moment. Replace this loading system by an equivalent resultant force and couple moment acting at (FR) Original System Equivalent System Assume the following values: di-0.860 m , d2-1.14 m ,d; .690 m ,d,-2.00 m , Fi=503 N , F2 =310 N ,F, 505 N , F4s400 N , and M-1509 N·m. Express the Cartesian components of the resultant force and the couple moment...
part D please. Two couples act on the frame. d = 4 ft. (Figure 1) Figure...
part D please.
Two couples act on the frame. d = 4 ft. (Figure 1) Figure < 1 of 1 > 2 ft + 3ft- 450 lb BIZ 1 ft 30° 50 lb 80 lb 80 lb We were unable to transcribe this imagePart C Select the correct expression for the sum of the moments of all the force components about point B. • Mc=- | (80)(1) + (80)(5) + 50 cos(30°)(2) – 50 cos(30°)(5) Mc =- (80 1) +...
4. Find the Resultant Force and directional angle using the method of components F-750 N 45" F-850 N F5-625 N 5...
4. Find the Resultant Force and directional angle using the method of components F-750 N 45" F-850 N F5-625 N 5. Find the Resultant of F1 and the respective angles for same using the Cartesian Method? F-300N e0r 60 F2 = 50N 6. Find the Magnitude of the resultant force and its direction using the Method of Components Fi- 30 Ib 45° 15° F2 40 lb 15 F-25 lb
4. Find the Resultant Force and directional angle using the method...
Problem 2.78 Part A The two forces Fi and F2 acting at A have a resultant force of FR={-180 k lb. (Figure 1) Determine...
Problem 2.78 Part A The two forces Fi and F2 acting at A have a resultant force of FR={-180 k lb. (Figure 1) Determine the magnitude of F2. Express your answer to three significant figures and include the appropriate units. Value Units Submit Request Answer Figure 1 of 1 Part B Determine the coordinate direction angle a of F2. Express your answer using three significant figures. VA Tvec 30 ? 40 F 60 lb Submit Request Answer Part C Determine...
Four forces act on the origin of an X-Y Cartesian Coordinate system as pictured below. a. Resolve each force into its components along the X and Y axes. b. Find the magnitude and direction of the resultant force acting on the system. Y 300 lb 60° 200 lb 3 0 30 50 lb 400 lb
Determine the tension in 4 cables
*2-104. If the resultant of the four forces is FR -360k) lb, determine the tension developed in each cable. Due to symmetry, the tension in the four cables is the same. The answer is: T 105 lb (exactly).) 6 ft 2 2 ft 3 ft 3 ft
The frame supports a distributed load and a tension force of P = 140 lb, as shown in the figure below. 40 75 1b/ D 2 ft В Е -20 If In If 30° Part A Determine the resultant internal loadings acting on the cross sections at point F of the frame. Express your answers, separated by commas, to three significant figures. 190 AED 11 vec ? Ne=, Vp =, MF lb, lb, lb-ft Part B Determine the resultant internal...
The frame supports a distributed load and a tension force of P 125 lb, as shown in the figure below 4 ft 75 lb/ft 4 2 ft 2 ft l ft 30° Part A Determine the resultant internal loadings acting on the cross sections at point D of the frame. Express your answers, separated by commas, to three significant figures. lb, lb, lb ft SubmitP Ans An X Incorrect; Try Again; 2 attempts remaining Part B Determine the resultant internal...
Find the resultant couple
GROUP PROBLEM SOLVING I 2-3ft Given: Two couples act on the beam with the geometry shown and d 4 ft. Find: The resultant couple Sa lb 80 1b Plan: 3 1 80 tb 1) Resolve the forces in x and y-directions so they can be treated as couples. 2) Add these two couples to find the resultant couple
Determine the resultant moment produced by the four forces about point A. 3 ft 6 ft 53.13º 10 lb 12 lb 4 ft 5 ft 8 lb 12 13 lb
point B The frame has an original loading system of four applied forces and one applied couple moment. Replace this loading system by an equivalent resultant force and couple moment acting at (FR) Original System Equivalent System Assume the following values: di-0.860 m , d2-1.14 m ,d; .690 m ,d,-2.00 m , Fi=503 N , F2 =310 N ,F, 505 N , F4s400 N , and M-1509 N·m. Express the Cartesian components of the resultant force and the couple moment...
part D please.
Two couples act on the frame. d = 4 ft. (Figure 1) Figure < 1 of 1 > 2 ft + 3ft- 450 lb BIZ 1 ft 30° 50 lb 80 lb 80 lb We were unable to transcribe this imagePart C Select the correct expression for the sum of the moments of all the force components about point B. • Mc=- | (80)(1) + (80)(5) + 50 cos(30°)(2) – 50 cos(30°)(5) Mc =- (80 1) +...
4. Find the Resultant Force and directional angle using the method of components F-750 N 45" F-850 N F5-625 N 5. Find the Resultant of F1 and the respective angles for same using the Cartesian Method? F-300N e0r 60 F2 = 50N 6. Find the Magnitude of the resultant force and its direction using the Method of Components Fi- 30 Ib 45° 15° F2 40 lb 15 F-25 lb
4. Find the Resultant Force and directional angle using the method...
Problem 2.78 Part A The two forces Fi and F2 acting at A have a resultant force of FR={-180 k lb. (Figure 1) Determine the magnitude of F2. Express your answer to three significant figures and include the appropriate units. Value Units Submit Request Answer Figure 1 of 1 Part B Determine the coordinate direction angle a of F2. Express your answer using three significant figures. VA Tvec 30 ? 40 F 60 lb Submit Request Answer Part C Determine...
