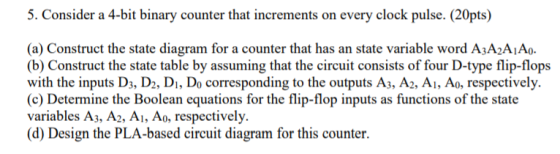

5. Consider a 4-bit binary counter that increments on every clock pulse. (20pts) (a) Construct the...
Consider a 4-bit binary counter that increments on every clock pulse. (a) Construct the state diagram for a counter that has an state variable word A3A2A1A0. (b) Construct the state table by assuming...

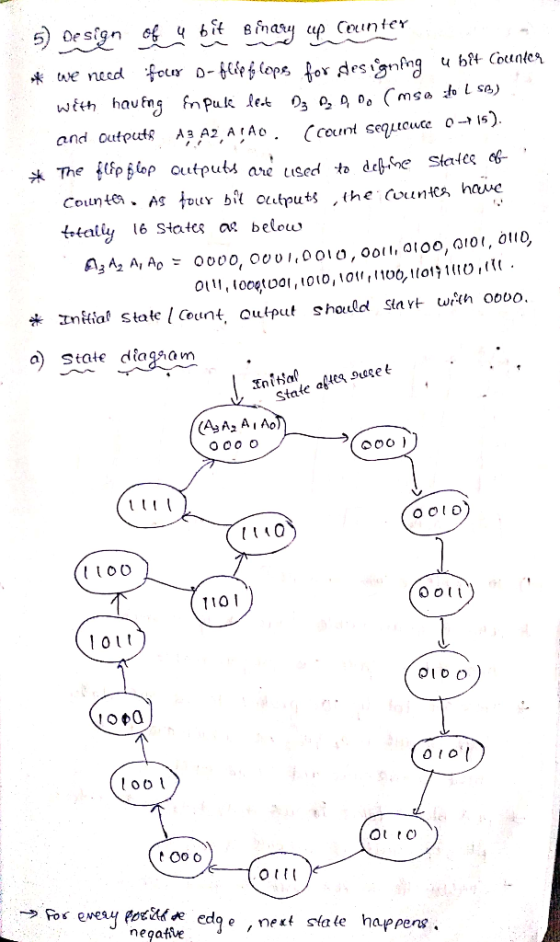

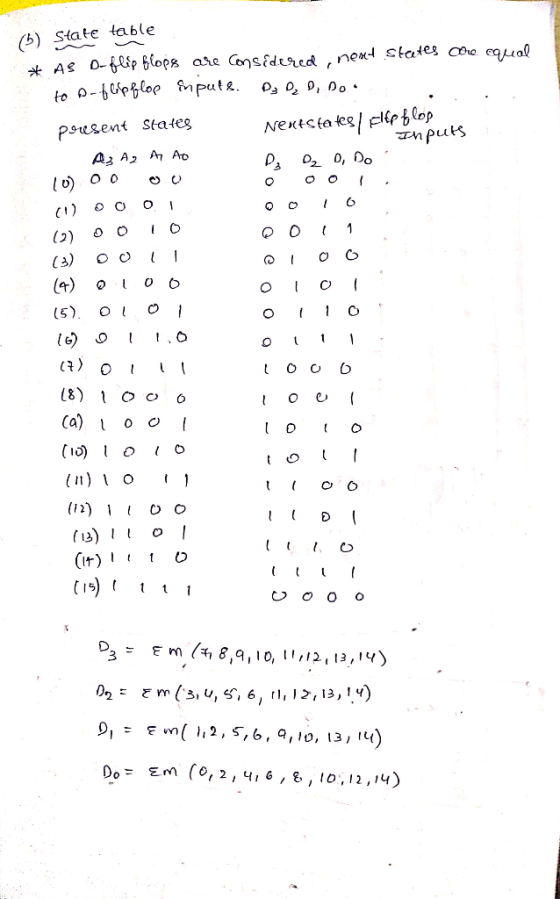

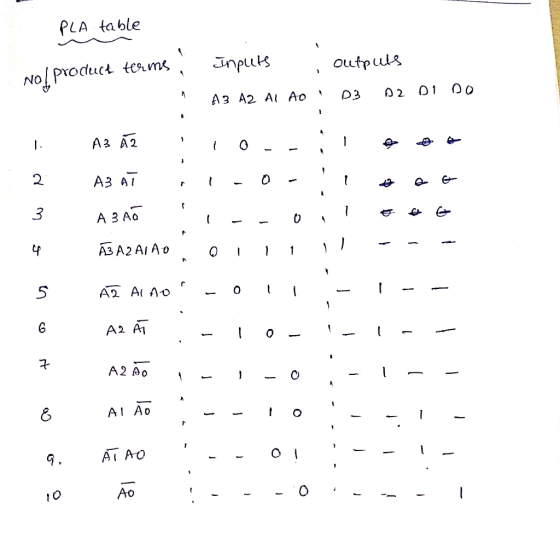

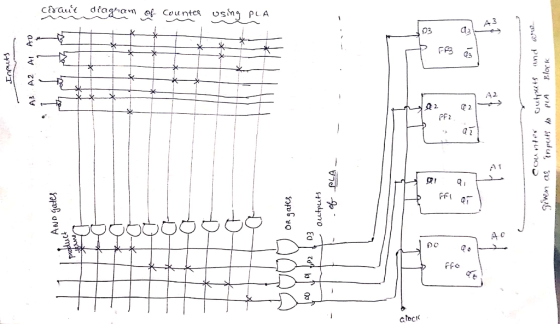

Consider a 4-bit binary counter that increments on every clock pulse. (a) Construct the state diagram for a counter that has an state variable word A3A2A1A0. (b) Construct the state table by assuming that the circuit consists of four D-type flip-flops with the inputs D3, D2, D1, D0 corresponding to the outputs A3, A2, A1, A0, respectively. (c) Determine the Boolean equations for the flip-flop inputs as functions of the state variables A3, A2, A1, A0, respectively. (d) Design the...
Design a 5-bit binary counter using JK flip flops. Draw the flip-flop circuit diagram, the state...
Design a 5-bit binary counter using JK flip flops. Draw the flip-flop circuit diagram, the state graph, the timing diagram, the truth table (with clk pulse) and the state table (with present and next states).
Design a counter to count-up from 2 to 5 using 3 D Flip-Flops similar to the...
Design a counter to count-up from 2 to 5 using 3 D Flip-Flops similar to the following sample: Important Steps: After you simplify D2, D1 and DO by kmap Have a piece of paper to draw it then open iCircuit to design it using BCD If it works well as a counter, copy the design from iCircuit and paste it here. 3-Bit Counter Using D Flip-Flop: The State Equation of D Flip-Flop: Q(t+1)=D(t) => Dn=An Count Up From 3 To...
hi i need answers for nos. 18-28. 1. In a counter, a flip-flop output 10. A...
hi i need answers for nos. 18-28.
1. In a counter, a flip-flop output 10. A is a group of flip-flops, each one of which transition serves as a source for triggering other flip-flops, not by the common clock pulses. shares a common clock and is capable of storing one bit of information. A) RAM B) latch A ripple Cring (rather than signal transitions) are referred to as B synchronous D binary C) counter D) register 11. The Characteristic Equation...
a) (5 marks) Explain the difference between a latch, a gated latch and a flip flop....
a) (5 marks) Explain the difference between a latch, a gated latch and a flip flop. b) (5 marks) A gated SR latch has the following schematic diagram CLK a) Draw a timing diagram showing the Q and Q outputs for the following sequence of inputs: CLK R Assume that the initial state of the outputs is Q 0 and Q 1 c) (5 marks) Draw a schematic diagram for a rising edge-triggered master-slave D flip- flop built using two...
1) Design a synchronous 3-bit binary UP/DOWN counter uses the following counting pattern 10.2.3.7.6.40.1.3...) the counter...
1) Design a synchronous 3-bit binary UP/DOWN counter uses the following counting pattern 10.2.3.7.6.40.1.3...) the counter will count in this pattern indefinitely when the input X is equal to 1. When the input the counter will reverse direction and count in the opposite pattern 0. 4 7310) Complete the state diagram, transition table, New state s and solve for the recitation equations for flipflops that will perform this function. (You do not need to draw the flip-flops Use the state...
Using Proteus, design Synchronous 4 bit Up binary counter using JK flip flops (Use 74HC76 JK flipflop). The circuit count from 0000 to 1111, etc.
Q2) 4-bit Synchronous Counter Using Proteus, design Synchronous 4 bit Up binary counter using JK flip flops (Use 74HC76 JK flipflop). The circuit count from 0000 to 1111, etc. Experiment procedure: طريقة اجراء التجربة a) Complete the circuit. You can use external gates based on the following conditions: o Flipflop A switches every clock. o Flipflop B switches when the output of flipflop A=1 o Flipflop C switches when the outputs of A-B=1 o Flipflop D switches when the outputs of A=B=C=1 b) What is the typical feature of...
The following is an equivalent way of creating the circuit above. Below is the truth table...
The following is an equivalent way of creating the circuit
above.
Below is the truth table
Q2, Q1, and Q0 are LED outputs from left to right respectively
and D2, D1, and D0 are switches from left to right respectively
Answer the following questions:
1. What signal(s) represent the present state and next state of
the circuit?
2. Sketch a Finite State Machine diagram of the circuit (Be sure
to show inputs and outputs).
3. Describe the high-level behavior of...
The task is to design a two-bit controlled counter which has two counting bits (Q2, Q1), has one control input C1, and a...
The task is to design a two-bit controlled counter which has two
counting bits (Q2, Q1), has one control input C1, and also two
extra outputs, one indicating overflow, the other underflow.
When C1=0 the counter counts up by 2s; i.e. 0 becomes 2, 1
becomes 3. In this mode the values 2 and 3 go to the overflow
state. When the control input C1=1, the counter counts down by 2s,
i.e. 3 becomes 1, and 2 becomes 0, and...
WRITE THE CODE IN VERILOG: Instead of using Registers, USE D FLIP FLOPS and a clock....
WRITE THE CODE IN VERILOG: Instead of using Registers, USE D
FLIP FLOPS and a clock. Include the logic for a reset
A sequential circuit with three D flip-flops A, B, and C, a trigger x, and an output z1, and zo. On this state machine diagram, the label of the states are in the order of (ABC), the transition is the one bit x, and the output is under the forward slash. x/z1zo. The start state is 001 0/01...
Design a counter to count-up from 2 to 5 using 3 D Flip-Flops similar to the following sample: Important Steps: After you simplify D2, D1 and DO by kmap Have a piece of paper to draw it then open iCircuit to design it using BCD If it works well as a counter, copy the design from iCircuit and paste it here. 3-Bit Counter Using D Flip-Flop: The State Equation of D Flip-Flop: Q(t+1)=D(t) => Dn=An Count Up From 3 To...
hi i need answers for nos. 18-28.
1. In a counter, a flip-flop output 10. A is a group of flip-flops, each one of which transition serves as a source for triggering other flip-flops, not by the common clock pulses. shares a common clock and is capable of storing one bit of information. A) RAM B) latch A ripple Cring (rather than signal transitions) are referred to as B synchronous D binary C) counter D) register 11. The Characteristic Equation...
a) (5 marks) Explain the difference between a latch, a gated latch and a flip flop. b) (5 marks) A gated SR latch has the following schematic diagram CLK a) Draw a timing diagram showing the Q and Q outputs for the following sequence of inputs: CLK R Assume that the initial state of the outputs is Q 0 and Q 1 c) (5 marks) Draw a schematic diagram for a rising edge-triggered master-slave D flip- flop built using two...
1) Design a synchronous 3-bit binary UP/DOWN counter uses the following counting pattern 10.2.3.7.6.40.1.3...) the counter will count in this pattern indefinitely when the input X is equal to 1. When the input the counter will reverse direction and count in the opposite pattern 0. 4 7310) Complete the state diagram, transition table, New state s and solve for the recitation equations for flipflops that will perform this function. (You do not need to draw the flip-flops Use the state...
The following is an equivalent way of creating the circuit
above.
Below is the truth table
Q2, Q1, and Q0 are LED outputs from left to right respectively
and D2, D1, and D0 are switches from left to right respectively
Answer the following questions:
1. What signal(s) represent the present state and next state of
the circuit?
2. Sketch a Finite State Machine diagram of the circuit (Be sure
to show inputs and outputs).
3. Describe the high-level behavior of...
The task is to design a two-bit controlled counter which has two
counting bits (Q2, Q1), has one control input C1, and also two
extra outputs, one indicating overflow, the other underflow.
When C1=0 the counter counts up by 2s; i.e. 0 becomes 2, 1
becomes 3. In this mode the values 2 and 3 go to the overflow
state. When the control input C1=1, the counter counts down by 2s,
i.e. 3 becomes 1, and 2 becomes 0, and...
WRITE THE CODE IN VERILOG: Instead of using Registers, USE D
FLIP FLOPS and a clock. Include the logic for a reset
A sequential circuit with three D flip-flops A, B, and C, a trigger x, and an output z1, and zo. On this state machine diagram, the label of the states are in the order of (ABC), the transition is the one bit x, and the output is under the forward slash. x/z1zo. The start state is 001 0/01...
