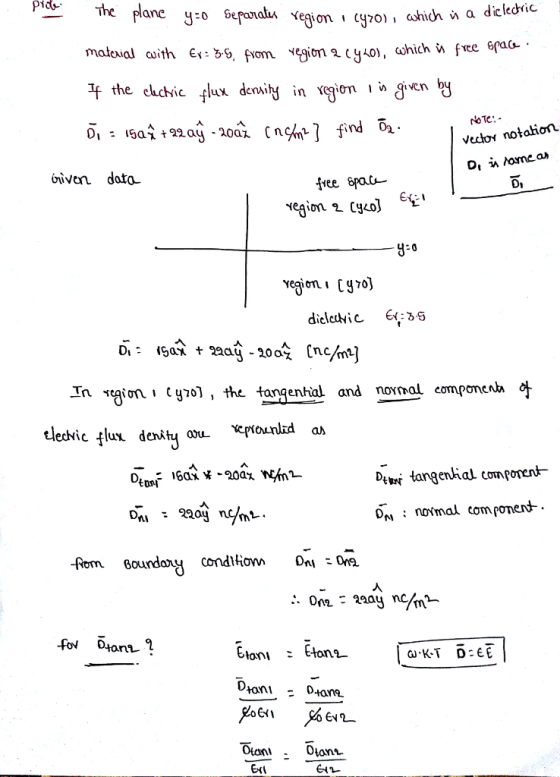

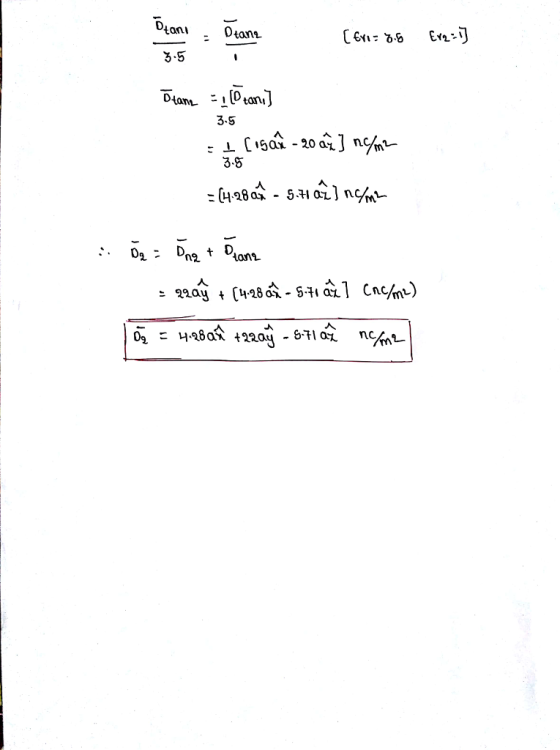

![6. (20 pts.) The plane y-0 separates region 1 (y 0), which is a dielectric materia with c, -3.5, from region 2 (y < 0), which is free space. If the electric flux density in region 1 is given by D,-15a, +22ay -20a, [nC/m], find D..](http://img.homeworklib.com/questions/ed0b6620-8feb-11eb-9a9c-cb8bca333ee8.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
6. (20 pts.) The plane y-0 separates region 1 (y 0), which is a dielectric materia...
