For the beam ABCD loaded as shown:
For the beam ABCD loaded as shown:

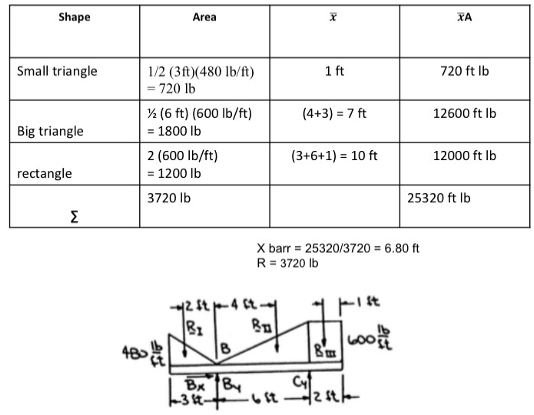

a. Fill in the various quantities in the table below, including appropriate units .

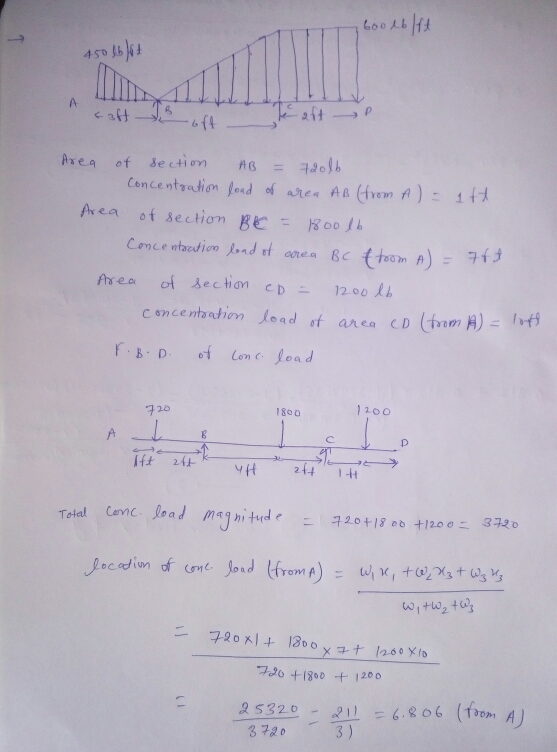

b. Determine the magnitude and location of the equivalent concentrated load
c. Illustrate using a free body diagram the location and magnitude of the equivalent concentrated load.
Homework Answers
As shown below a canterliver beam is loaded by a uniform load of 5 lbf/in and...
As shown below a canterliver beam is loaded by a uniform load of 5 lbf/in and a concentrated force of 30 lbf. The beam is 15 in length. (1) What is the direction of the moment generated by the 25 lbf force against point 0? A. +y; B.-y; C. +z; D. -z (2) What is the direction of the moment generated by the 5 lbf/in uniform load against point O? A. +y; B.-y; C. +z; D.-z (3) Draw the free-body...
Problem 3 (19 points): A simply supported beam ABCD carries a uniformly distributed load, w, and...
Problem 3 (19 points): A simply supported beam ABCD carries a uniformly distributed load, w, and a concentrated load, F, as shown in the figure. All the dimensions are given in the figure, and the weight of the beam is neglected a) Draw the free body diagram for the beam, showing all the applied and reaction forces. Find the reaction forces F=14 kN .6m b) Give the expression for the shear force, V- V(x), and the bending moment M M(x),...
The cantilevered beam shown here has a known rigidity, EI, andlength, b, and is loaded...
The cantilevered beam shown here has a known rigidity, EI, and
length, b, and is loaded with a point force and a point moment as
shown a) Determine all reactions forces and draw the shear and
moment diagrams for this loading.b) Using discontinuity functions and the integration method,
find the deflection and the slope of the beam at the free
end.c) Using the moment-area method, find the deflection and the
slope of the beam at the location of the point load.
The beam is loaded as shown in the diagram below. The beam is uniformly loaded at...
The beam is loaded as shown in the diagram below. The beam is uniformly loaded at 3 kN/m for the length of 4 m from B. The beam also has two point loads, 4 KN at 2 m from A and 3 KN at 3 m from B. 2 KN 3 KN 3KN/m A 2 m 2 m 11 m 3 m Fig. Q2 Draw a shear force and bending moment diagram. Also determine the location of maximum bending moment...
Problem 1 Consider the cantilever beam shown below. This beam is loaded with a downward pointing...
Problem 1 Consider the cantilever beam shown below. This beam is loaded with a downward pointing point load that moves horizontally along the top of the beam. The position of the load from point A, the fixed point, is denoted by x. An influence line diagram showing the internal moment at point B as the load moves across the beam is also shown below 1 kip x, Position of load from Point A (ft) 24 Moment at Point B (kip-ft)/kip...
Q2(c) Figure Q1(c) shows a simply supported beam ABCD loaded as shown. The beam is pin-supported...
Q2(c) Figure Q1(c) shows a simply supported beam ABCD loaded as shown. The beam is pin-supported at D, while point B is roller-supported. Determine the support reactions. b) For span BC (2<x< 4) write down the x-dependent equation for moment. x should be measured from cnd A. Plot the shear force diagram and the bending moment diagram for the beam. Show all important values of the diagrams. d) Plot the deflected shape of the beam. c) 50KN 40kN/m 25kNm 20kN/m...
The beam is loaded with 12 kips at point B. It is fixed at A and...
The
beam is loaded with 12 kips at point B. It is fixed at A and acted
upon by a concentrated load 'P' at its free end as shown. What
value of force 'P' (acting upwards) is required if the vertical
deflection at C is to be zero?
64. The beam is loaded with 12 kips at point B. It is fixed at A and acted upon by a concentrated load P' at its free end as shown. What value...
a simply supported beam abcd with arectangular cross sectioncarries the loading shown in figure. the...
a simply supported beam abcd with arectangular cross section
carries the loading shown in figure. the uniform beam has a mass of
33 kg per meter (m kg/m) and a cross section as shown in the
figure. you may take 10 m/s^2 as acceleration.Question A2 A simply supported beam ABCD with a rectangular cross-section carries the loading shown in Figure QA2. The uniform beam has a mass of m kg per meter of length (m kg/m) and a cross-section as shown...
The continuous beam ABCD shown in Figure Q2(a) has a flexural rigidity EI = 1000 kNm2....
The continuous beam ABCD shown in Figure Q2(a) has a flexural
rigidity EI = 1000 kNm2. The beam is subjected to a concentrated
load at point B and a uniform load from points C to D.
(b) The beam ABCD shown in Figure Q2(b) is identical to that in Figure Q2(a), except that the roller support at point is replaced by a linear spring of stiffness K = 500 kN/m and point D settles (downwards) by 6 cm, calculate the...
A loaded beam with a pin support at B and a roller support at C is...
A loaded beam with a pin support at B and a roller support at C
is shown in Figure 1. The applied loads on the beam are: an
anti-clockwise point moment at A, a variably distributed load
between B and C, and a clockwise point moment at D.
A loaded beam with a pin support at B and a roller support at C is shown in Figure 1. The applied loads on the beam are: an anti-clockwise point moment at...
As shown below a canterliver beam is loaded by a uniform load of 5 lbf/in and a concentrated force of 30 lbf. The beam is 15 in length. (1) What is the direction of the moment generated by the 25 lbf force against point 0? A. +y; B.-y; C. +z; D. -z (2) What is the direction of the moment generated by the 5 lbf/in uniform load against point O? A. +y; B.-y; C. +z; D.-z (3) Draw the free-body...
Problem 3 (19 points): A simply supported beam ABCD carries a uniformly distributed load, w, and a concentrated load, F, as shown in the figure. All the dimensions are given in the figure, and the weight of the beam is neglected a) Draw the free body diagram for the beam, showing all the applied and reaction forces. Find the reaction forces F=14 kN .6m b) Give the expression for the shear force, V- V(x), and the bending moment M M(x),...
The beam is loaded as shown in the diagram below. The beam is uniformly loaded at 3 kN/m for the length of 4 m from B. The beam also has two point loads, 4 KN at 2 m from A and 3 KN at 3 m from B. 2 KN 3 KN 3KN/m A 2 m 2 m 11 m 3 m Fig. Q2 Draw a shear force and bending moment diagram. Also determine the location of maximum bending moment...
Problem 1 Consider the cantilever beam shown below. This beam is loaded with a downward pointing point load that moves horizontally along the top of the beam. The position of the load from point A, the fixed point, is denoted by x. An influence line diagram showing the internal moment at point B as the load moves across the beam is also shown below 1 kip x, Position of load from Point A (ft) 24 Moment at Point B (kip-ft)/kip...
Q2(c) Figure Q1(c) shows a simply supported beam ABCD loaded as shown. The beam is pin-supported at D, while point B is roller-supported. Determine the support reactions. b) For span BC (2<x< 4) write down the x-dependent equation for moment. x should be measured from cnd A. Plot the shear force diagram and the bending moment diagram for the beam. Show all important values of the diagrams. d) Plot the deflected shape of the beam. c) 50KN 40kN/m 25kNm 20kN/m...
The
beam is loaded with 12 kips at point B. It is fixed at A and acted
upon by a concentrated load 'P' at its free end as shown. What
value of force 'P' (acting upwards) is required if the vertical
deflection at C is to be zero?
64. The beam is loaded with 12 kips at point B. It is fixed at A and acted upon by a concentrated load P' at its free end as shown. What value...
a simply supported beam abcd with arectangular cross section
carries the loading shown in figure. the uniform beam has a mass of
33 kg per meter (m kg/m) and a cross section as shown in the
figure. you may take 10 m/s^2 as acceleration.Question A2 A simply supported beam ABCD with a rectangular cross-section carries the loading shown in Figure QA2. The uniform beam has a mass of m kg per meter of length (m kg/m) and a cross-section as shown...
The continuous beam ABCD shown in Figure Q2(a) has a flexural
rigidity EI = 1000 kNm2. The beam is subjected to a concentrated
load at point B and a uniform load from points C to D.
(b) The beam ABCD shown in Figure Q2(b) is identical to that in Figure Q2(a), except that the roller support at point is replaced by a linear spring of stiffness K = 500 kN/m and point D settles (downwards) by 6 cm, calculate the...
A loaded beam with a pin support at B and a roller support at C
is shown in Figure 1. The applied loads on the beam are: an
anti-clockwise point moment at A, a variably distributed load
between B and C, and a clockwise point moment at D.
A loaded beam with a pin support at B and a roller support at C is shown in Figure 1. The applied loads on the beam are: an anti-clockwise point moment at...
