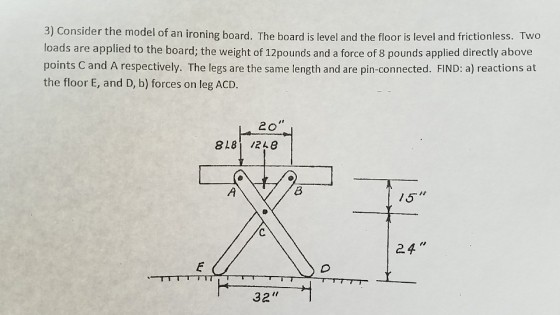

3) Consider the model of an ironing board. The board is level and the floor is level and frictionless. Two loads are applied to the board; the weight of 12pounds and a force of 8 pounds applied directly above points C and A respectively. The legs are the same length and are pin-connected. FIND: a) reactions at the floor E, and D, b) forces on leg ACD. 2o 818 /240 15T 24

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

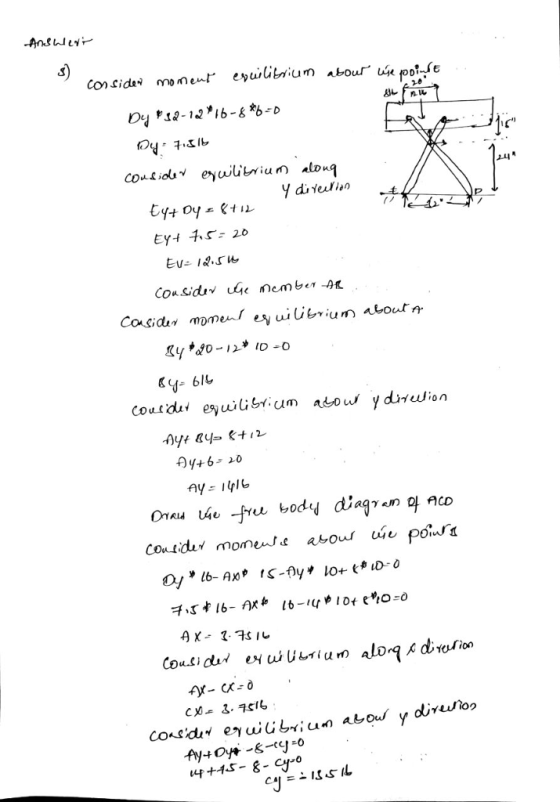

2.6 tic @y.. 刊&lb Ev- i^.rw су

0 0
Add a comment
Know the answer?
Add Answer to:
3) Consider the model of an ironing board. The board is level and the floor is...
