Question

File Edit View Display Diagram Simulation Analysis Code Tools Help Normal Pulse P1 P2 IUI UI Pulse IUl P4 P3 04 D1 2-44 PM 4/302019 ︿国瘟固@e O Type here to

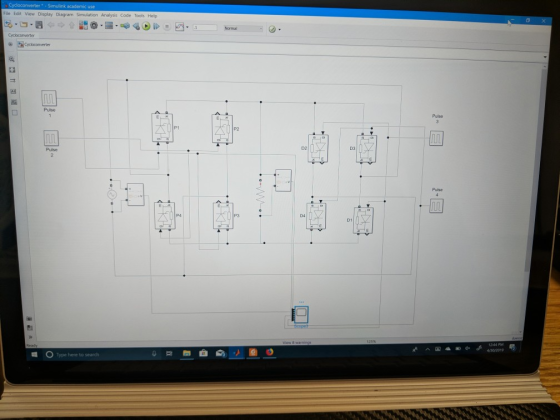

I INPUT A 220 RMS AND 60 HZ INTO A CYCLOCONVERTER BUT IM HAVING ISSUES WITH THE DELAY OF THE PULSE WAVE. CAN SOMEONE HELP ME CALCULATE THE DELAY IN SECONDS FOR EACH PULSE WAVE. I WANT A FREQUENCY OF 30 AT THE OUTPUT

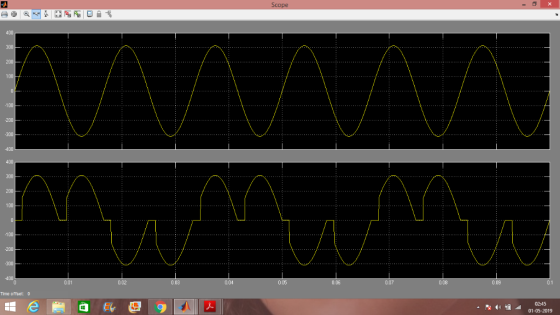

Answer 1

DELAYS FOR PULSE GENRATORS: USE TIME PERIOD AS (1/60);

FOR ALPHA =30

FOR P1 AND P3: (1/(30*720))*30

FOR P2 AND P4: (1/(30*720))*180

FOR D2 AND D1: (1/(30*720))*390

FOR D3 AND D4: (1/(30*720))*570
