Water at 2500 psia, 500 ° F is throttled to 500 psia. What is the temperature...

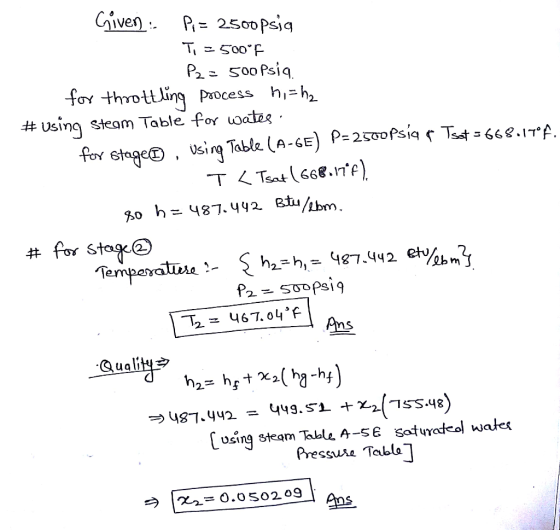

Water at 2500 psia, 500 ° F is throttled to 500 psia. What is the temperature after throttling? What is the quality after throttling? Find quality as a decimal with 3 significant figures.
Homework Answers
