Question

Pleasseeeeee I need an easy to understand with details step by step solution.

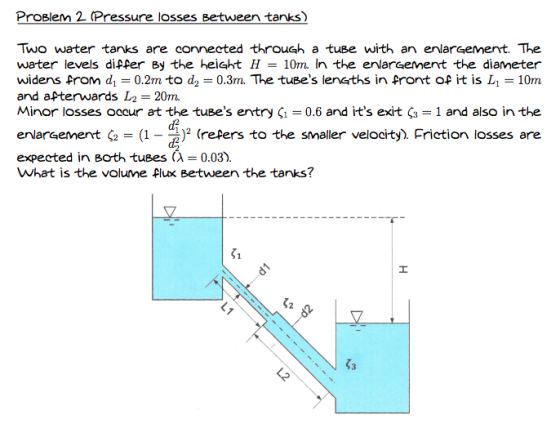

ProBlem 2 Pressure losses Between tanks) Two water tanks are connected through a tuBe with an enlargement. The water levels differ By the height H = 10m. In the en arenent the diameter widens from di 0.2m to d2 = 0.3m. The tuse's lenths in front of it is Li = 10m and aPterwards L2 = 20m. Minor losses occur at the tuse's entry ! = 0.6 and it's exit = 1 and also in the enlargement = (1-)" (refers to the smaller velocity. Friction losses are expected in Both tuses(λ = 0.03), what is the volume 위ux Between the tanks? d2

Answer 1

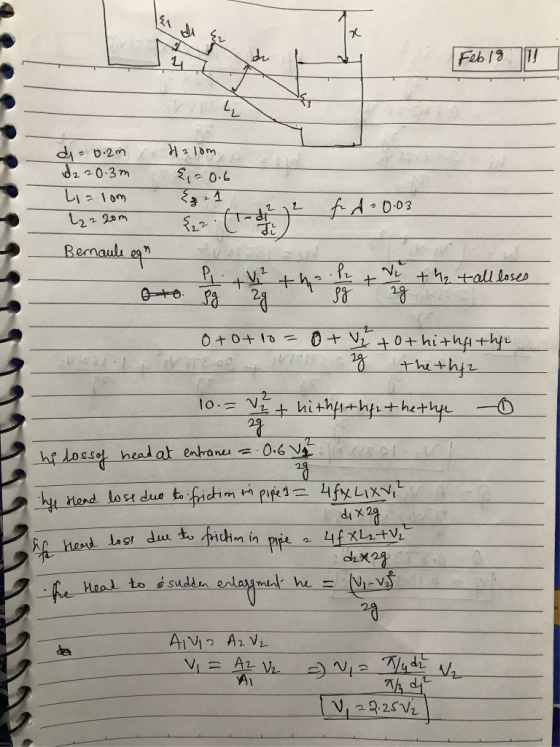

山 dh 2 20.3 m 0.6 JL 2

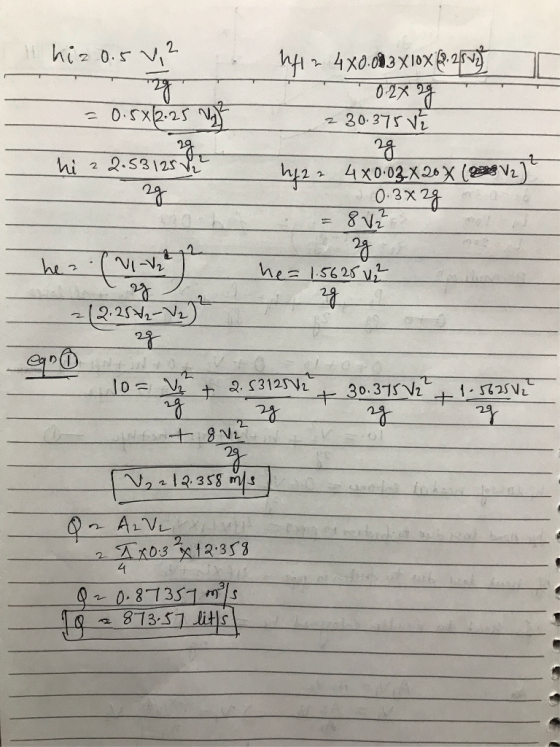

02X z 30.37N 23 hi 22-53125 2. L Vレ
