NOTE: Use negative sign

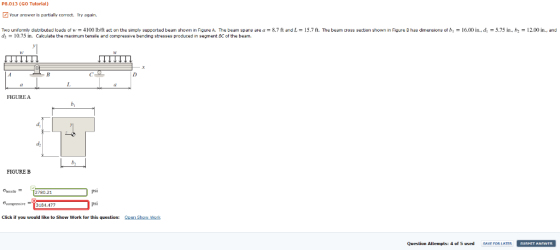

P8.013 (GO Tutorial) Your answer is partially correct. Try again. Two unformly distibuted loads of w4100...
a) Two uniformly distributed loads of w=3100 lb/ft act on the
simply supported beam shown in Figure A. The beam spans are a=6.8
ft and L=16.0 ft. The beam cross section shown in Figure B has
dimensions of b1=17.75 in., d1=6.00 in., b2=10.75 in., and d2=10.25
in. Calculate the maximum tensile and compressive bending stresses
produced in segment BC of the beam.
.uri ะ!! Apua -CENG TS.rvicu: s.. O ColkaguulEnginuu.. WileyPLUS pot, Mechanics of Materials: An Integrated Learning system, ath...

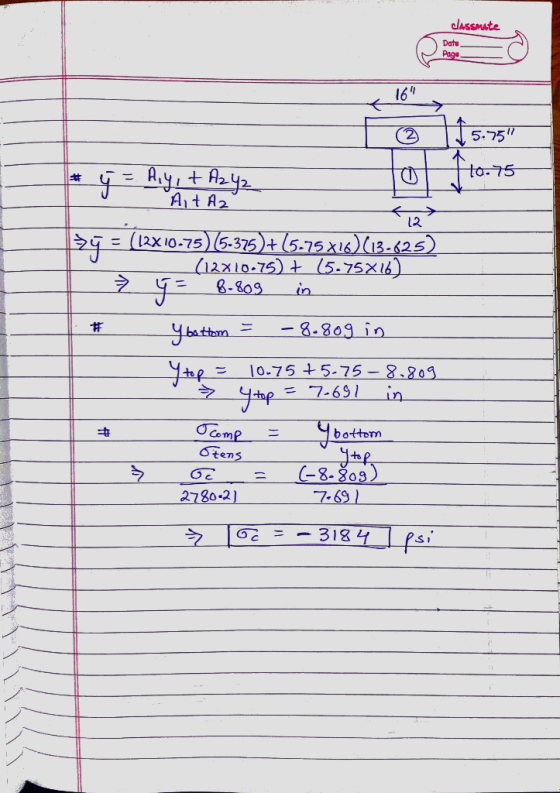

solve incorrect answers please
Your answer is partially correct. Try again. A simple pin-connected truss is loaded and supported as shown in the figure. All members of the truss are aluminum pipes that have an outside diameter of 4.75 in. and a wall thickness of 0.283 in. Determine the normal stress in each truss member. Assume P = 8 kips, Q = 7 kips, a = 7 ft, b = 10 ft, and h - 9 ft. The stresses are...
Question 2 Your answer is partially correct. Try again. The pin-connected structure shown in the figure consists of two cold-rolled steel [E = 29,800 ksi; a = 6.6 x 10-6/F) bars (1) and a bronze [E = 15,500 ks; a = 12.6 x 10-6/F] bar (2) that are connected at pin D. All three bars have cross- sectional areas of 1.375 in. Assume an initial geometry of a = 15 ft and b = 26 ft. A load of P...
Fluid mechanics
Problem 3.027 (GO Tutorial) Your answer is partially correct. Try again. (a) What is the maximum gage pressure in the odd tank shown in the figure? (b) Where will the maximum pressure occur? (c) what is the hydrostatic force acting on the top (CD) of the last chamber on the right-hand side of the tank? Assume T = 10℃ Open to Closed top 1 m Plan view (view E-E) EOpen to atmosphene 2 m 1 m Air Air...
A tubular steel column C supports horizontal cantilever arm ABC, as shown in the figure. Column C has an outside diameter of 9.000 in. and a wall thickness of 0.460 in. The loads are PA = 370 lb and Pg = 550 lb. Dimensions of the structure are a = 6.1 ft. b = 8.2 ft, and c = 12.5 ft. Determine the maximum compression stress at the base of column co. b B Determine the maximum compression bending stress...
Can someone help me with this materials problem?
Problem 7.23 Your answer is partially correct. Try again. Consider the brass alloy for which the stress-strain behavior is shown in the Animated Figure 7.12. A cylindrical specimen of this material 10.1 mm (0.3976 in.) in diameter and 98.8 mm (3.890 in.) long is pulled in tension with a force of 10200 N (2293 lbr). If it ls known that this alloy has a value for Polsson's ratio of 0.35, compute (a)...
1. For the overhanging beam in the figure below, determine the maximum shear stress, the maximum tensile stress, and the maximum compressive stress in the beam due to the loading shown. 300 lb/ft 6 in. 1 in. 4 ft 10 ft 1 in. 2 in. Section INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a...
13.2.1 GO Tutorial Your answer is partially correct. Try again. An article in Environment International (Vol. 18, No. 4, 1992) describes an experiment in which the amount of radon released in showers was investigated. Radon-enriched water was used in the experiment, and six different orifice diameters were tested in shower heads. The data from the experiment are shown in the following table. Orifice Diameter Radon Released (%) 0.37 80 81 83 85 0.51 75 75 79 79 0.71 74 73...
Try again. Your answer is partially correct. In Figure (a), a uniform 48.5 kg beam is centered over two rollers. Vertical lines across the beam mark off equal lengths. Two of the lines are centered over the rollers; a 9.65 kg package of tamale is centered over roller B. What are the magnitudes of the forces on the beam from (a) roller A and (b) roller B? The beam is then rolled to the left until the right-hand end is...
i give likes please answer
13.2.1 GO Tutorial Your answer is partially correct. Try again. An article in Environment International (Vol. 18, No. 4, 1992) describes an experiment in which the amount of radon released in showers was investigated. Radon-enriched water was used in the experiment, and six different orifice diameters were tested in shower heads. The data from the experiment are shown in the following table. Orifice Diameter Radon Released (%) 0.37 80 83 83 85 0.51 75 75...
