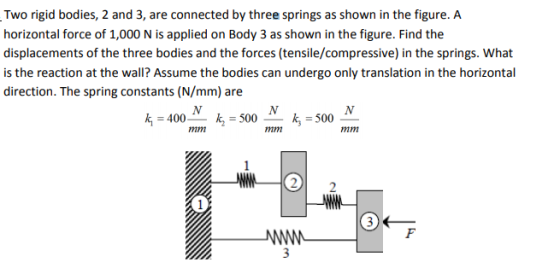

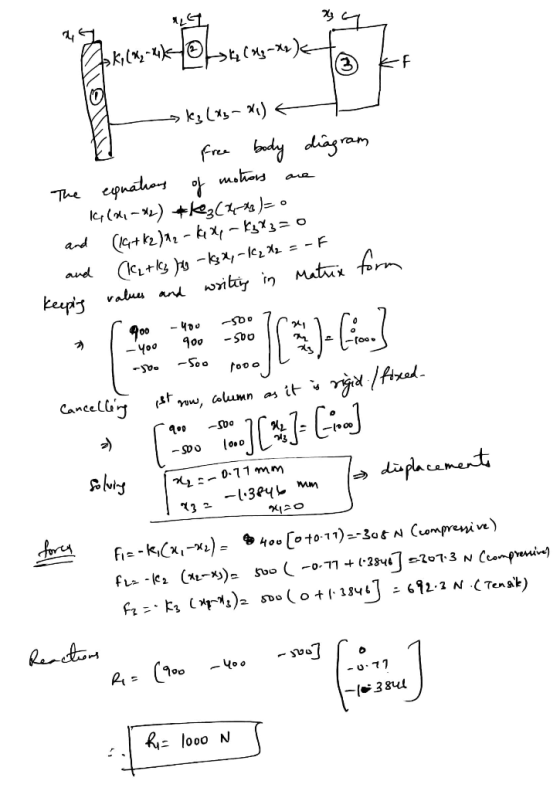

Two rigid bodies, 2 and 3, are connected by three springs as shown in the figure....
Three rigid bodies (Nodes 2, 3, and 4) are connected by five springs as shown below....
Three rigid bodies (Nodes 2, 3, and 4) are connected by five
springs as shown below. Assume that the
bodies can only undergo translation in the horizontal direction.
Horizontal force P2=1000 N and
P4=1500 N is applied to Elements 2 and 4, respectively. The spring
constants in (N/mm) are given as:
k1=400, k2=500, k3=600, k4=100, and k5=300. Nodes 1 and 5 are
fixed. Determine the nodal
displacements and reaction forces at the walls.
Problem 1. (3 points) Three rigid bodies...
Three springs are connected according to the figure below, also showing the applied external forc...
Three springs are connected according to the figure below, also showing the applied external force P. The spring constants are: k5k, k2 k and k3 2k. 4a 2 2 3a rigid beam Determine 1.1 the system stiffness equation with boundary conditions 1.2 the nodes displacement field 1.3 the nodal forces field (12)
Three springs are connected according to the figure below, also showing the applied external force P. The spring constants are: k5k, k2 k and k3 2k. 4a 2...
A hinged rigid bar is connected by two springs of stiffnesses kı and k2 and is subjected to a for...
A hinged rigid bar is connected by two springs of stiffnesses kı and k2 and is subjected to a force F applied at 'D' as shown in the figure. Assuming that the angular displacement of the bar is small (sin θ-6), find the equivalent spring constant of the system that relates the applied force F to the resulting displacement x. 1. ki
A hinged rigid bar is connected by two springs of stiffnesses kı and k2 and is subjected to...
Springs A and B have spring constants of k_A = 2000 N/m and k_B = 2000...
Springs A and B have spring constants of k_A = 2000 N/m and k_B = 2000 N/m, respectively. Spring A is hung from a rigid horizontal beam and its other end is attached to the end of Spring B. The pair of springs is then used to suspend a body of mass m = 50-kg from the lower end of spring B. What is the period of harmonic oscillation of the system These same two springs are now connected to...
Question: A block with mass of m = 3.78 kg is attached to springs with spring...
Question: A block with mass of m = 3.78 kg is attached to springs with spring constants of ki = 18.1 N/m and k = 25.6 N/m, in different configurations shown in the figures below. Assume in all these cases that friction is negligible. Part 1) You will need to calculate the period of oscillations for each situation In this situation the mass is connected between the two springs which are each connected to opposite walls (Figure 1). What is...
UIT LE 11/4., /4.127 Three rigid bars with the same length L are pinned as shown...
UIT LE 11/4., /4.127 Three rigid bars with the same length L are pinned as shown in the figure. They are connected by linear springs with the same spring constant K. A downward force P is applied at the point F. Use the principle of virtual work to determine the vertical displacements at points A, C, and F corresponding to the equilibrium state. Assume that all displacements are small at the equilibrium state.
10. A hinged rigid bar of length/ is connected by two springs of stiffnesses k1 an and is subjected to a force F as...
10. A hinged rigid bar of length/ is connected by two springs of stiffnesses k1 an and is subjected to a force F as shown in the figure. Assuming that thean of the displacement of the bar is small (sin θ find the equival system that relates the applied force F at Point D, t d k2 lent spring constant of th o the resulting displacement x.
10. A hinged rigid bar of length/ is connected by two springs of...
3. A block of a mass 500 g is connected to two springs as shown in...
3. A block of a mass 500 g is connected to two springs as shown in the picture. The spring constant of one of the springs is 1000 N/m. The block oscillates on a frictionless surface with frequency 30 Hz. Find force constant of the other spring. n u lana light rod oscillates at a r
3.Rigid Body Systems. Acceleration: Consider the following diagram that shows three rigid-bodies simply connected by pins....
3.Rigid Body Systems. Acceleration: Consider the following diagram that shows three rigid-bodies simply connected by pins. Body AB is rotating about the pin at A and body C is confined to the horizontal slot. At the particular moment show body AB has a constant angular acceleration, au 0.8 rad/s', and an angular velocity. CAB - 4.0 rad/s. It is also known that the speed of pin B is, V8 - 12 m/s, the angular speed of body BC is OBC...
Two springs, with force constants k1=150N/m and k2=235N/m, are connected in series Two springs, with force...
Two springs, with force
constants k1=150N/m and k2=235N/m, are connected in series
Two springs, with force constants ki = 150 N/m and k2 = 235 N/m, are connected in series, as shown in (Figure 1). Part A When a mass m = 0.60 kg is attached to the springs, what is the amount of stretch, ? Express your answer to two significant figures and include appropriate units. Figure < 1 of 1 > TT HÀ • • • Ea ?...
Three rigid bodies (Nodes 2, 3, and 4) are connected by five
springs as shown below. Assume that the
bodies can only undergo translation in the horizontal direction.
Horizontal force P2=1000 N and
P4=1500 N is applied to Elements 2 and 4, respectively. The spring
constants in (N/mm) are given as:
k1=400, k2=500, k3=600, k4=100, and k5=300. Nodes 1 and 5 are
fixed. Determine the nodal
displacements and reaction forces at the walls.
Problem 1. (3 points) Three rigid bodies...
Three springs are connected according to the figure below, also showing the applied external force P. The spring constants are: k5k, k2 k and k3 2k. 4a 2 2 3a rigid beam Determine 1.1 the system stiffness equation with boundary conditions 1.2 the nodes displacement field 1.3 the nodal forces field (12)
Three springs are connected according to the figure below, also showing the applied external force P. The spring constants are: k5k, k2 k and k3 2k. 4a 2...
A hinged rigid bar is connected by two springs of stiffnesses kı and k2 and is subjected to a force F applied at 'D' as shown in the figure. Assuming that the angular displacement of the bar is small (sin θ-6), find the equivalent spring constant of the system that relates the applied force F to the resulting displacement x. 1. ki
A hinged rigid bar is connected by two springs of stiffnesses kı and k2 and is subjected to...
Springs A and B have spring constants of k_A = 2000 N/m and k_B = 2000 N/m, respectively. Spring A is hung from a rigid horizontal beam and its other end is attached to the end of Spring B. The pair of springs is then used to suspend a body of mass m = 50-kg from the lower end of spring B. What is the period of harmonic oscillation of the system These same two springs are now connected to...
Question: A block with mass of m = 3.78 kg is attached to springs with spring constants of ki = 18.1 N/m and k = 25.6 N/m, in different configurations shown in the figures below. Assume in all these cases that friction is negligible. Part 1) You will need to calculate the period of oscillations for each situation In this situation the mass is connected between the two springs which are each connected to opposite walls (Figure 1). What is...
UIT LE 11/4., /4.127 Three rigid bars with the same length L are pinned as shown in the figure. They are connected by linear springs with the same spring constant K. A downward force P is applied at the point F. Use the principle of virtual work to determine the vertical displacements at points A, C, and F corresponding to the equilibrium state. Assume that all displacements are small at the equilibrium state.
10. A hinged rigid bar of length/ is connected by two springs of stiffnesses k1 an and is subjected to a force F as shown in the figure. Assuming that thean of the displacement of the bar is small (sin θ find the equival system that relates the applied force F at Point D, t d k2 lent spring constant of th o the resulting displacement x.
10. A hinged rigid bar of length/ is connected by two springs of...
3. A block of a mass 500 g is connected to two springs as shown in the picture. The spring constant of one of the springs is 1000 N/m. The block oscillates on a frictionless surface with frequency 30 Hz. Find force constant of the other spring. n u lana light rod oscillates at a r
3.Rigid Body Systems. Acceleration: Consider the following diagram that shows three rigid-bodies simply connected by pins. Body AB is rotating about the pin at A and body C is confined to the horizontal slot. At the particular moment show body AB has a constant angular acceleration, au 0.8 rad/s', and an angular velocity. CAB - 4.0 rad/s. It is also known that the speed of pin B is, V8 - 12 m/s, the angular speed of body BC is OBC...
Two springs, with force
constants k1=150N/m and k2=235N/m, are connected in series
Two springs, with force constants ki = 150 N/m and k2 = 235 N/m, are connected in series, as shown in (Figure 1). Part A When a mass m = 0.60 kg is attached to the springs, what is the amount of stretch, ? Express your answer to two significant figures and include appropriate units. Figure < 1 of 1 > TT HÀ • • • Ea ?...
