#1 - A glass cylinder of diameter 8.0 cm contains 1500 mL of water (p =...

Question

Question

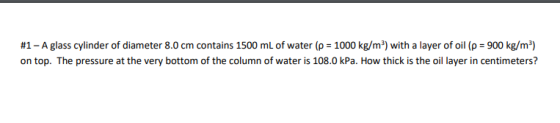

#1 - A glass cylinder of diameter 8.0 cm contains 1500 mL of water (p = 1000 kg/m²) with a layer of oil (p = 900 kg/m²) on to

science physics

Answer 1

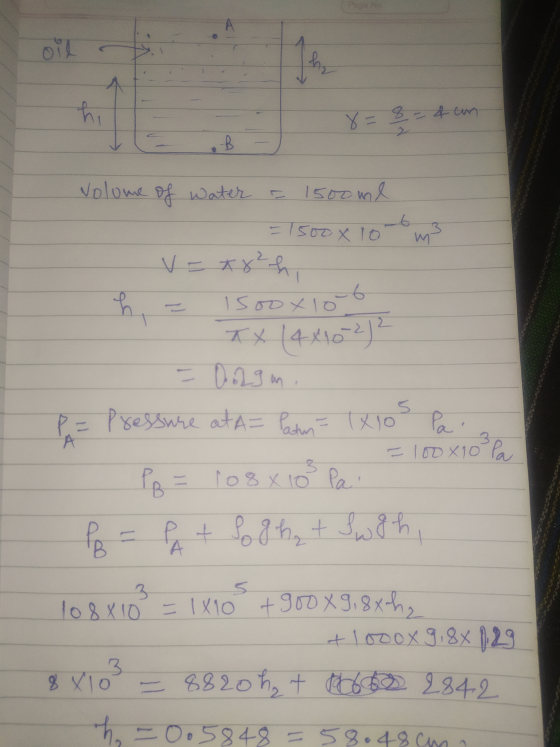

Answer #1

Answer 2
