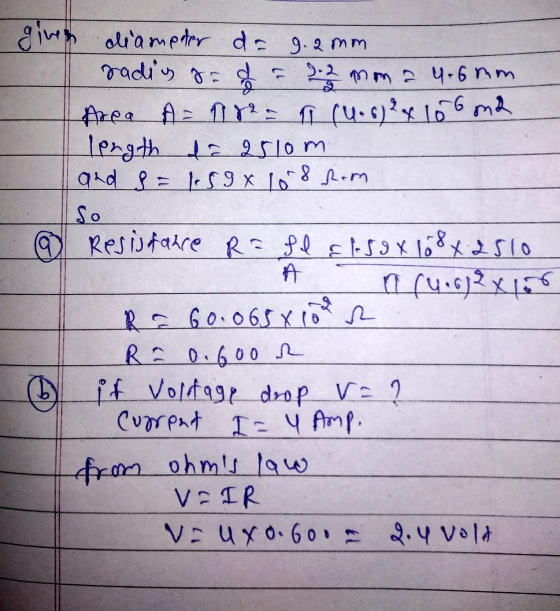

A diameter of a silver wire is 9.2 mm and length of the wire is 2510...
A diameter of a silver wire is 9.2 mm and length of the wire is
2510 m .
a) Find the resistance of the given silver wire?
b) What is the voltage drop along its length when it carries 4.0
A?
(Note:The resistivity of silver is 1.59 × 10-8 Ω-m).
Homework Answers
Add Answer to:
A diameter of a silver wire is 9.2 mm and length of the wire is
2510...
Consider a wire with resistivity of 9.2 x10-7 Ω m, a diameter of 4.5 mm, and...
Consider a wire with resistivity of 9.2 x10-7 Ω m, a diameter of 4.5 mm, and a length of 33 m. What is the resistance of the wire in ohms (Ω).
A wire of diameter 0.750 mm and length 45.0 m has a measured resistance of 1.20...
A wire of diameter 0.750 mm and length 45.0 m has a measured resistance of 1.20 Ω. What is the resistivity of the wire?
Compute the voltage drop along a 24-m length of household no. 14 copper wire (used in...
Compute the voltage drop along a 24-m length of household no. 14 copper wire (used in 15-A circuits). The wire has diameter 1.628 mm and carries a 13-A current. The resistivity of copper is 1.68×10−8Ω⋅m.
Calculate the ratio of the resistance of 12.0 m of aluminum wire 2.4 mm in diameter,...
Calculate the ratio of the resistance of 12.0 m of aluminum wire 2.4 mm in diameter, to 26.0 m of copper wire 1.8 mm in diameter. The resistivity of copper is 1.68× 10 −8 Ω⋅m and the resistivity of aluminum is 2.65× 10 −8 Ω⋅m .
Calculate the ratio of the resistance of 12.0 m of aluminum wire 2.0 mm in diameter,...
Calculate the ratio of the resistance of 12.0 m of aluminum wire 2.0 mm in diameter, to 20.0 m of copper wire 2.5 mm in diameter. Assume electrical resistivity of aluminum is 2.65×10−8 Ω⋅m and electrical resistivity of copper is 1.68×10−8 Ω⋅m. Answer in RAl/RCu =
Compute the voltage drop along a 22-m length of household no. 14 copper wire (used in...
Compute the voltage drop along a 22-m length of household no. 14 copper wire (used in 15-A circuits). The wire has diameter 1.628 mm and carries a 12-Acurrent. The resistivity of copper is 1.68
Please answer this question: A wire of diameter 0.650 mm and length 40.0 m has a...
Please answer this question:
A wire of diameter 0.650 mm and length 40.0 m has a measured
resistance of 1.40 Ω. What is the resistivity of the wire?
Please answer correctly!!!! Thank you so much in advance!
Safari File Edit View History Bookmarks Window Help 48% D, Mon 3:14:43 PM Q mm/s Need Help?Read It Submit Answer Save Progress Practice Another Version 5. +-/10 points SerCP11 17.4.P.016 My Notes+ A wire of diameter 0.650 mm and length 40.0 m has...
A 5.30 m length of 1.6 mm -diameter wire carries a 710 mA current when 18.0...
A 5.30 m length of 1.6 mm -diameter wire carries a 710 mA current when 18.0 mV is applied to its ends. The drift velocity is 1.2×10−5 m/s . Part A Determine the resistance R of the wire. Part B Determine the resistivity ρ. Part C Determine the current density j. Part D Determine the electric field inside the wire. Part E Determine the number n of free electrons per unit volume.
Consider a wire with resistivity of (1.20+A)x10-7 Ω m, a diameter of (1.50+B) mm, and a...
Consider a wire with resistivity of (1.20+A)x10-7 Ω m, a diameter of (1.50+B) mm, and a length of (15.0+C) m. Determine the resistance of the wire in ohms (Ω). Round your answer to three significant figures. a= 8 b = 2 c= 12
Consider a wire with resistivity of 2.20x10-7 Ω m, a diameter of 9.50 mm, and a...
Consider a wire with resistivity of 2.20x10-7 Ω m, a diameter of 9.50 mm, and a length of 29 m. Determine the resistance of the wire in ohms (Ω). Round your answer to three significant figures.
Please answer this question:
A wire of diameter 0.650 mm and length 40.0 m has a measured
resistance of 1.40 Ω. What is the resistivity of the wire?
Please answer correctly!!!! Thank you so much in advance!
Safari File Edit View History Bookmarks Window Help 48% D, Mon 3:14:43 PM Q mm/s Need Help?Read It Submit Answer Save Progress Practice Another Version 5. +-/10 points SerCP11 17.4.P.016 My Notes+ A wire of diameter 0.650 mm and length 40.0 m has...
