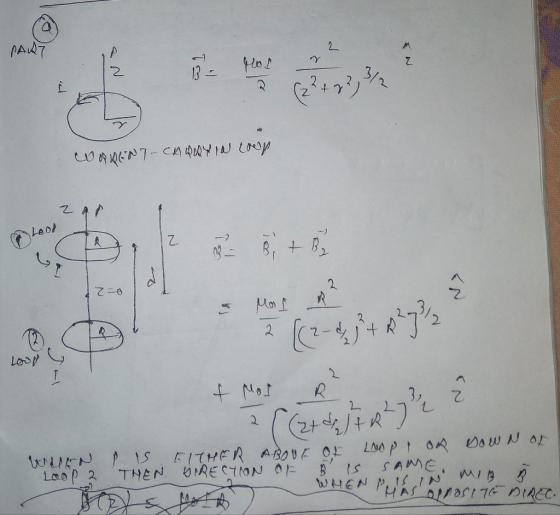

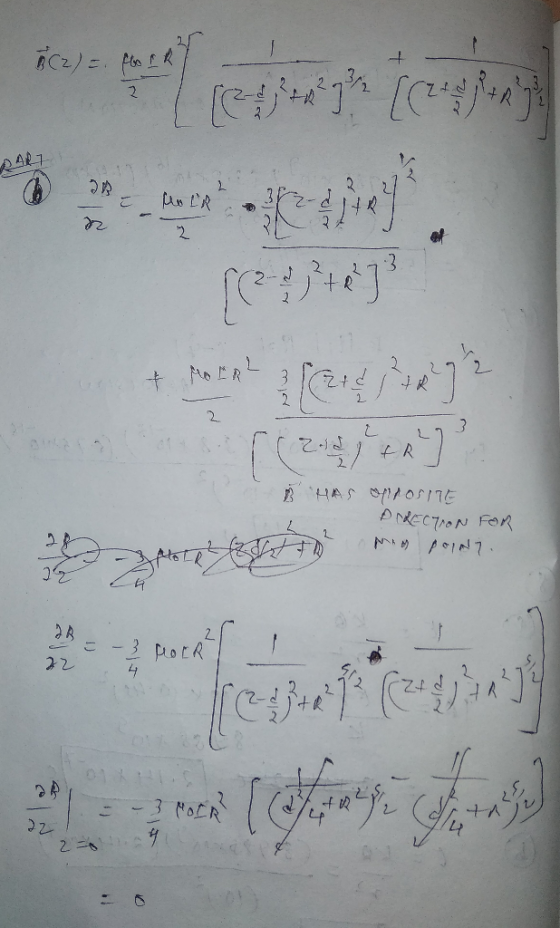

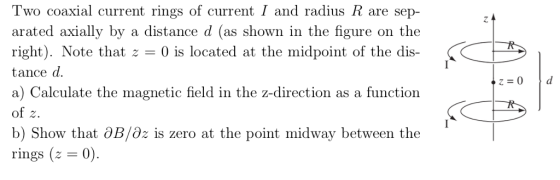

Two coaxial current rings of current I and radius R are sep- rated axially by a...
Two rings each have a current I 1.0 Amp running through them. One has a radius...
Two rings each have a current I 1.0 Amp running through them. One has a radius 1.0 cm, the other 2.0 cm. a) Place them so they are concentric with each other, both have current in clockwise direction. Find the magnitude and direction of the magnetic field at the center of the rings. b) Rotate the small ring 90 degrees so that from above, you o on the right. Find the magnitude and direction of the magnetic field at the...
A coaxial cable is constructed from a central cylindrical conductor of radius r A = 1.70...
A coaxial cable is constructed from a central cylindrical conductor of radius r A = 1.70 cm carrying current lA = 6.50 A in the positive x direction and a concentric conducting cylindrical shell with inner radius rs = 14.0 cm and outer radius rc = 15.0 cm with a current of 38.0 A in the negative x direction (see figure below). What are the magnitude and direction of the magnetic field at the following points? 9 Tc 0 IA...
A coaxial cable is constructed from a central cylindrical conductor of radius rA = 1.40 cm...
A coaxial cable is constructed from a central cylindrical
conductor of radius rA = 1.40 cm carrying current IA = 7.90 A in
the positive x direction and a concentric conducting cylindrical
shell with inner radius rB = 14.0 cm and outer radius rC = 15.0 cm
with a current of 32.0 A in the negative x direction (see figure
below). What are the magnitude and direction of the magnetic field
at the following points?
= 7.90 A A coaxial...
A coaxial cable is constructed from a central cylindrical conductor of radius r'a = 1.30 cm...
A coaxial cable is constructed from a central cylindrical conductor of radius r'a = 1.30 cm carrying current 1a = 7.20 A in the positive x direction and a concentric conducting cylindrical shell with inner radius 18 = 14.0 cm and outer radius rc = 15.0 cm with a current of 13.0 A in the negative x direction (see Figure below). What are the magnitude and direction of the magnetic field at the following points? 18 69 fc Y 0...
A coaxial cable is constructed from a central cylindrical conductor of radius ra = 2.00 cm...
A coaxial cable is constructed from a central cylindrical conductor of radius ra = 2.00 cm carrying current IA = 9.20 A in the positive x direction and a concentric conducting cylindrical shell with inner radius 18 = 14.0 cm and outer radius rc = 15.0 cm with a current of 21.0 A in the negative x direction (see figure below). What are the magnitude and direction of the magnetic field at the following points? Z Ів a fc 1B...
2. A modified coaxial cable consists of a solid cylinder (radius 'a') with a uniform current...
2. A modified coaxial cable consists of a solid cylinder (radius 'a') with a uniform current density and a concentric cylindrical conducting thin shell (radius 'b'). The outer and inner current have an equal magnitude, but are opposite in direction. Io (along outside) (along the axis) (off-axis view) In terms of radial distance 'r', and the relevant parameters in the diagram above, A) Derive an expression for the magnetic field inside the solid cylinder (r <a) B) Derive an expression...
A coil of radius R << d with N loops of current I lics in the...
A coil of radius R << d with N loops of current I lics in the xz-plane. The center of the coil is located on the x-axis a distance d from the origin as indicated in the diagram. The bar magnet is still located int he xy-planc but the center of the magnet has been moved along the negative x-axis a distance d. At these locations the magnetic ficld of the coil and bar magnetic exactly cancel at the origin...
Please show all work! A Two parallel rings, each of radius R, are separated by a...
Please show all work!
A Two parallel rings, each of radius R, are separated by a distance R. A positive charge^+Q is uniformly distributed around the upper ring and a negative charge^-Q is uniformly distributed around the lower ring. Let z be the vertical coordinate, with z = 0 taken to be the center of the lower negatively charged ring. What is the direction and magnitude of the electric field at the point A on the vertical axis, a distance...
A coaxial cable consists of an inner cylindrical conductor of radius R1 -0.040 m on the...
A coaxial cable consists of an inner cylindrical conductor of radius R1 -0.040 m on the axis of an outer hollow cylindrical conductor of inner radius R2 -0.080 m and outer radius R3 = 0.090 m. The inner conductor carries current 11 = 4,40 A in one direction, and the outer conductor carries current 12-4.40A in the opposite direction. What is the magnitude of the magnetic field at the following distances from the central axis of the cable? (0 =...
25.- Two (1 and 2) infinite straight co- axial conductors run along the z axis. Conductor...
25.- Two (1 and 2) infinite straight co- axial conductors run along the z axis. Conductor 1 is a thin line carrying a current of 27 amps in the (+z) direc- tion. Q +X Conductor 2 is a hollow cylindrical shell which has a circular cross sec- tion (inner radius a = 0.20 m; outer radius b = 0.80 m) carrying a current of 72 amps in the (-z) direction uniformly distributed over the region a srsb. What is the...
Two rings each have a current I 1.0 Amp running through them. One has a radius 1.0 cm, the other 2.0 cm. a) Place them so they are concentric with each other, both have current in clockwise direction. Find the magnitude and direction of the magnetic field at the center of the rings. b) Rotate the small ring 90 degrees so that from above, you o on the right. Find the magnitude and direction of the magnetic field at the...
A coaxial cable is constructed from a central cylindrical conductor of radius r A = 1.70 cm carrying current lA = 6.50 A in the positive x direction and a concentric conducting cylindrical shell with inner radius rs = 14.0 cm and outer radius rc = 15.0 cm with a current of 38.0 A in the negative x direction (see figure below). What are the magnitude and direction of the magnetic field at the following points? 9 Tc 0 IA...
A coaxial cable is constructed from a central cylindrical
conductor of radius rA = 1.40 cm carrying current IA = 7.90 A in
the positive x direction and a concentric conducting cylindrical
shell with inner radius rB = 14.0 cm and outer radius rC = 15.0 cm
with a current of 32.0 A in the negative x direction (see figure
below). What are the magnitude and direction of the magnetic field
at the following points?
= 7.90 A A coaxial...
A coaxial cable is constructed from a central cylindrical conductor of radius r'a = 1.30 cm carrying current 1a = 7.20 A in the positive x direction and a concentric conducting cylindrical shell with inner radius 18 = 14.0 cm and outer radius rc = 15.0 cm with a current of 13.0 A in the negative x direction (see Figure below). What are the magnitude and direction of the magnetic field at the following points? 18 69 fc Y 0...
A coaxial cable is constructed from a central cylindrical conductor of radius ra = 2.00 cm carrying current IA = 9.20 A in the positive x direction and a concentric conducting cylindrical shell with inner radius 18 = 14.0 cm and outer radius rc = 15.0 cm with a current of 21.0 A in the negative x direction (see figure below). What are the magnitude and direction of the magnetic field at the following points? Z Ів a fc 1B...
2. A modified coaxial cable consists of a solid cylinder (radius 'a') with a uniform current density and a concentric cylindrical conducting thin shell (radius 'b'). The outer and inner current have an equal magnitude, but are opposite in direction. Io (along outside) (along the axis) (off-axis view) In terms of radial distance 'r', and the relevant parameters in the diagram above, A) Derive an expression for the magnetic field inside the solid cylinder (r <a) B) Derive an expression...
A coil of radius R << d with N loops of current I lics in the xz-plane. The center of the coil is located on the x-axis a distance d from the origin as indicated in the diagram. The bar magnet is still located int he xy-planc but the center of the magnet has been moved along the negative x-axis a distance d. At these locations the magnetic ficld of the coil and bar magnetic exactly cancel at the origin...
Please show all work!
A Two parallel rings, each of radius R, are separated by a distance R. A positive charge^+Q is uniformly distributed around the upper ring and a negative charge^-Q is uniformly distributed around the lower ring. Let z be the vertical coordinate, with z = 0 taken to be the center of the lower negatively charged ring. What is the direction and magnitude of the electric field at the point A on the vertical axis, a distance...
A coaxial cable consists of an inner cylindrical conductor of radius R1 -0.040 m on the axis of an outer hollow cylindrical conductor of inner radius R2 -0.080 m and outer radius R3 = 0.090 m. The inner conductor carries current 11 = 4,40 A in one direction, and the outer conductor carries current 12-4.40A in the opposite direction. What is the magnitude of the magnetic field at the following distances from the central axis of the cable? (0 =...
25.- Two (1 and 2) infinite straight co- axial conductors run along the z axis. Conductor 1 is a thin line carrying a current of 27 amps in the (+z) direc- tion. Q +X Conductor 2 is a hollow cylindrical shell which has a circular cross sec- tion (inner radius a = 0.20 m; outer radius b = 0.80 m) carrying a current of 72 amps in the (-z) direction uniformly distributed over the region a srsb. What is the...
