The gusset plate is subjected to the forces of three members. The forces are concurrent at...
The members of a truss are connected to the gusset plate. If the forces are concurrent...

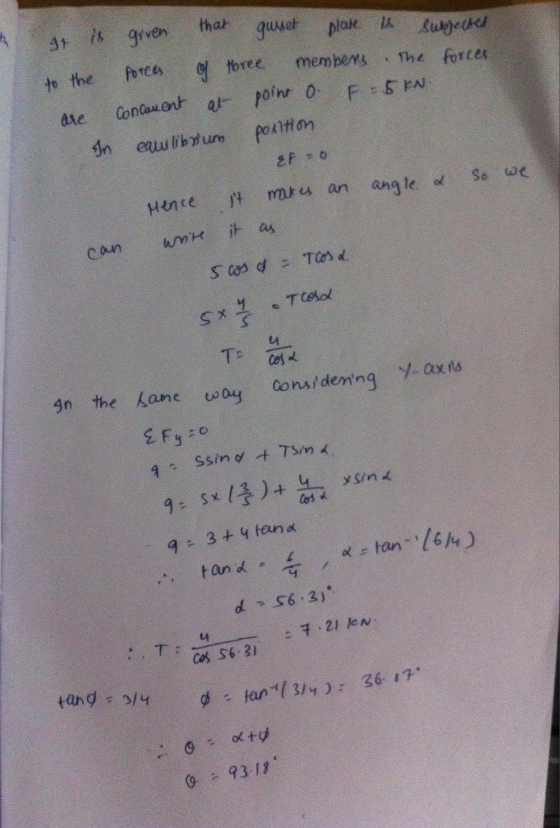

The members of a truss are connected to the gusset plate. If the forces are concurrent at point O, determine the magnitudes of F and T for equilibrium. Take θ = 90°. 9 kN
Part A Determine the forces in members AB and CB of the truss, and state if the members are in tension or compression. Set θ:00 (Figure 1) Express your answer to three significant figures and include...
Part A Determine the forces in members AB and CB of the truss, and state if the members are in tension or compression. Set θ:00 (Figure 1) Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression. FAB-FOBValue Units Figure 1 of 1 Submit Request Answer Part B 3 kN Determine the force in member AD of the truss, and state if the member...
The members of a truss are connected to the gusset plate. Assuming that the forces are...
The members of a truss are connected to the gusset plate. Assuming that the forces are concurrent at point O, determine the magnitudes of F and T for equilibrium, given that: F1 = 8 kN, F_2 = 5 kN, theta_1 = 45 degree, theta_2 = 30 degree.
Three forces act on the anchor bolt connection shown below. The forces are concurrent at point A.
Three forces act on the anchor bolt connection shown below. The forces are concurrent at point A. Express all answers to three significant figures with the appropriate units.Problem #1 Express force F1 in rectangular vector form. Take F1=20 kN and θ1=50°. Problem #2 Express force F2 in rectangular vector form. Problem #3 Express force F3 in rectangular vector form. Problem #4 Determine the resultant force FR in rectangular vector form. Take F1=20 kN and θ1=50°. Problem #5 Determine the magnitude Fe of the resultant force. Take F1=20 kN and...
Part A Determine the forces in members AL, CH.LK HI of the Fruits, and state the...
Part A Determine the forces in members AL, CH.LK HI of the Fruits, and state the members are in tension or compression Figure 1) Express your answer to three significant figures and include the appropriate units. Assume positive salars for members in tension and negative scalars for members in compression HA + O2 PA - Pou - Poker Value Units Figure 1 of 1 Submit 2 m - Part 8 Determine the former AB. GR. IC FE CD RD of...
Determine the forces in each memebers, AB, AC=AD, BC=BD, and BE 2014 Part A Determine the...
Determine the forces in each memebers, AB, AC=AD, BC=BD, and
BE
2014 Part A Determine the force in member AB. and state the member is intension or compression. Take F-10 kN. Hint. The support reaction at member BBT Figure 1) acts on Express your answer using three significant figures and include the appropriate units. Assume pove negative scalars for members in compression r s for members in ein and D' HA Value Units Submit Part B Determine the forces in...
Determine the force in each member of the truss. Determine the force in each member of...
Determine the force in each member of the truss.
Determine the force in each member of the truss and state if the members are in tension or compression (Figure 1) Part A Determine the force in the member AB of the truss, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression. FAB- Value...
Determine the force on members CD, CF, and CG and state if they are in tension...
Determine the force on members CD, CF, and CG and state if they
are in tension or compression.
Part A Consider the truss shown in (Figure 1) Suppose that F1 4.5 kN and F2 6 kN Determine the force in member CD and state if this member is in t Express your answer to three significant figures and include t case of tension Fcn Value Units CD Submit Request Answer Part B Figure 1 of 1 Determine the force in...
Problem 6.8 3 of 6 Part A Determine the force in member DE of the truss,...
Problem 6.8 3 of 6 Part A Determine the force in member DE of the truss, and state if the member is in tension or compression. Take Fi 501 N , F, = 814 N (Figure 1) Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression Figure 1 of 1 > 4 m Value Units F, Request Answer Part B Determine the forces...
The members of a truss are connected to the gusset plate. If the forces are concurrent at point O, determine the magnitudes of F and T for equilibrium. Take θ = 90°. 9 kN
Part A Determine the forces in members AB and CB of the truss, and state if the members are in tension or compression. Set θ:00 (Figure 1) Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression. FAB-FOBValue Units Figure 1 of 1 Submit Request Answer Part B 3 kN Determine the force in member AD of the truss, and state if the member...
The members of a truss are connected to the gusset plate. Assuming that the forces are concurrent at point O, determine the magnitudes of F and T for equilibrium, given that: F1 = 8 kN, F_2 = 5 kN, theta_1 = 45 degree, theta_2 = 30 degree.
Part A Determine the forces in members AL, CH.LK HI of the Fruits, and state the members are in tension or compression Figure 1) Express your answer to three significant figures and include the appropriate units. Assume positive salars for members in tension and negative scalars for members in compression HA + O2 PA - Pou - Poker Value Units Figure 1 of 1 Submit 2 m - Part 8 Determine the former AB. GR. IC FE CD RD of...
Determine the forces in each memebers, AB, AC=AD, BC=BD, and
BE
2014 Part A Determine the force in member AB. and state the member is intension or compression. Take F-10 kN. Hint. The support reaction at member BBT Figure 1) acts on Express your answer using three significant figures and include the appropriate units. Assume pove negative scalars for members in compression r s for members in ein and D' HA Value Units Submit Part B Determine the forces in...
Determine the force in each member of the truss.
Determine the force in each member of the truss and state if the members are in tension or compression (Figure 1) Part A Determine the force in the member AB of the truss, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression. FAB- Value...
Determine the force on members CD, CF, and CG and state if they
are in tension or compression.
Part A Consider the truss shown in (Figure 1) Suppose that F1 4.5 kN and F2 6 kN Determine the force in member CD and state if this member is in t Express your answer to three significant figures and include t case of tension Fcn Value Units CD Submit Request Answer Part B Figure 1 of 1 Determine the force in...
Problem 6.8 3 of 6 Part A Determine the force in member DE of the truss, and state if the member is in tension or compression. Take Fi 501 N , F, = 814 N (Figure 1) Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression Figure 1 of 1 > 4 m Value Units F, Request Answer Part B Determine the forces...
