Homework Answers

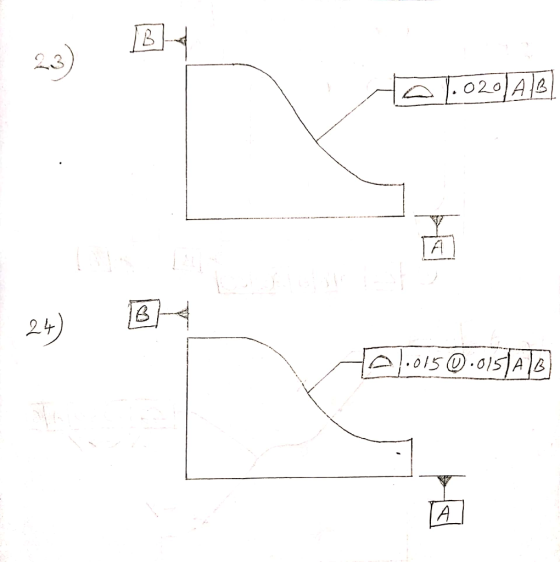

23. | Prof | .020 | A | B |
24. | Prof | .015 (U) .015 | A | B |

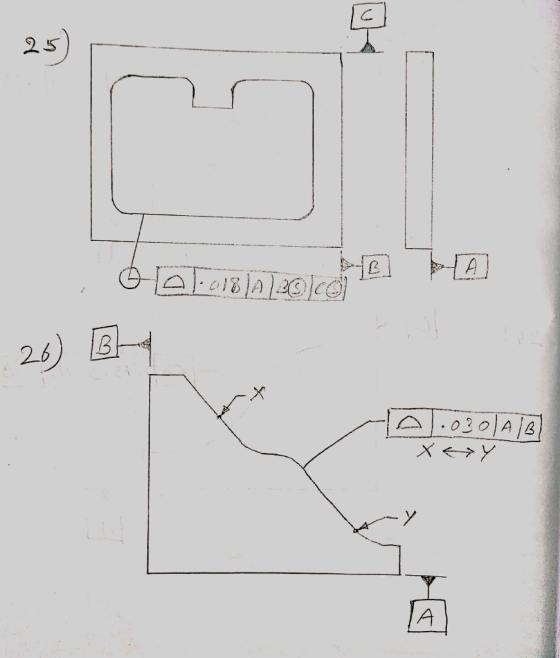

25. RMB is Regard less of material boundaries, this indicates the tolerance limits must be achieved irrespective of bulit datum feature size or limits. This will be denoted with the letter S circled.
| Prof | .018 | A | B (S) | C (S) |
26. | Prof | .030 | A | B |
(X <-> Y)

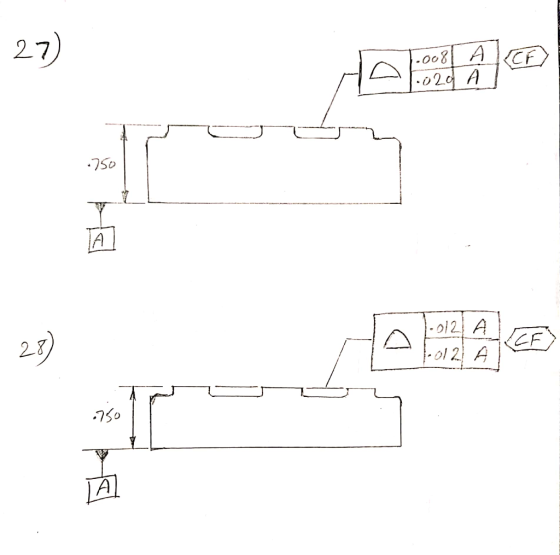

![(FA ع وام الناس :(دن ] (م2 داد 21 . 03 ماده ۸](http://img.homeworklib.com/questions/4b068cb0-92d8-11eb-b06b-a55a7a4c1fc3.png?x-oss-process=image/resize,w_560)
Add Answer to:

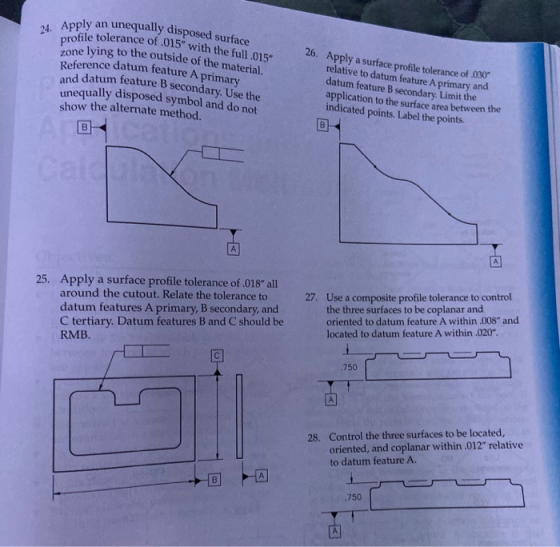

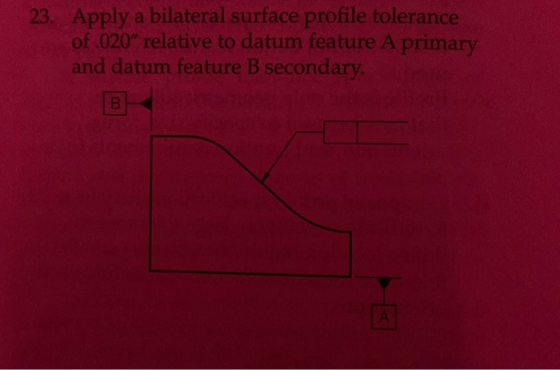

23. Apply a bilateral surface profile tolerance of .020” relative to datum feature A primary and...
1. Which of the following is not related to GD&T? a) Datum Identification symbols b) Surface...
1. Which of the following is not related to GD&T? a) Datum Identification symbols b) Surface texture symbols c) Geometricontrol symbols d) Feature Control 2. An important concept in GD&T is the term ____ feature, which is simply a feaure that has a centert plane or a center axis. a) Size b) Bisected c) Coaxial d) Body 3. The long rectangular boxes attached to extension lines, leader lines, or perhaps just floating near a size dimension are called _____________. a)...
Apply what you have learned about Geometric Dimensioning and Tolerancing (GD&T) by specifying the permissible limits...
Apply what you have learned about Geometric Dimensioning and Tolerancing (GD&T) by specifying the permissible limits of imperfection for the widget shown below (and in the file GDT_widget.SLDPRT, and GDT_widget.SLDDRW) according to the ASME Y14.5 standard. The designer of the part needs: 1. The flatness of datum feature A to be 0.005 2. The flatness of datum feature C to be 0.002 3. The location of the small bore to lie within a cylindrical tolerance zone of 0.01 relative to...
Gd and T Circle T if the statement is true. Circle F if the statement is...
Gd and T Circle T if the statement is true. Circle F if the statement is false. 1. The MMB and LMB symbols are only used if the datum feature has size RMB is implied if the datum feature has size and no boundary symbol is used. No material boundary symbol can be used if a feature does not have size. 2. Unit straightness can be used if the part must be controlled per unit of measure as well as...
