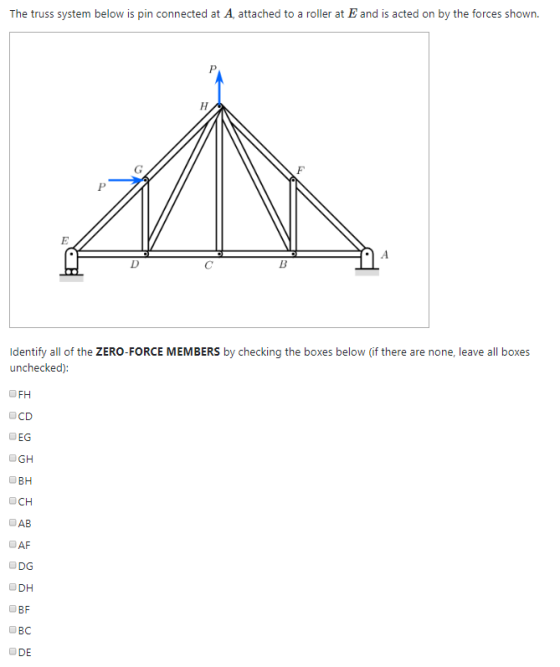

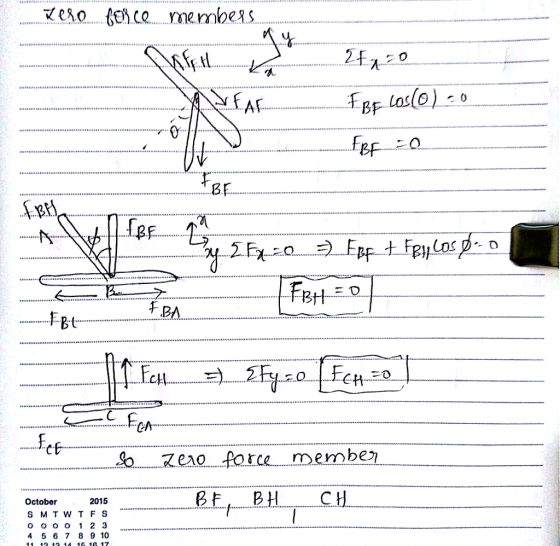

The truss system below is pin connected at A attached to a roller at Eand is...
solve incorrect answers please
Your answer is partially correct. Try again. A simple pin-connected truss is loaded and supported as shown in the figure. All members of the truss are aluminum pipes that have an outside diameter of 4.75 in. and a wall thickness of 0.283 in. Determine the normal stress in each truss member. Assume P = 8 kips, Q = 7 kips, a = 7 ft, b = 10 ft, and h - 9 ft. The stresses are...
5. For the truss shown below, what are the reaction supports at the pin support A, and the roller support D? Determine the forces in all of the members and state whether they are in compression or tension or zero-force members. (20 pts.) 3 ft 3 ft 3 ft F E 8 kip 5 ft B CI 5 kip
5. For the truss shown below, what are the reaction supports at the pin support A, and the roller support D? Determine the forces in all of the members and state whether they are in compression or tension or zero-force members. (20 pts.) 3 ft 3 ft 3 ft + F E 8 kip 5 ft B с 5 kip
5. For the truss shown below, what are the reaction supports at the pin support A, and the roller support D? Determine the forces in all of the members and state whether they are in compression or tension or zero-force members. (20 pts.) 3 ft 3 ft 3 ft F E 8 kip 5 ft B 5 kip
5. For the truss shown below, what are the reaction supports at the pin support A, and the roller support D? Determine the forces in all of the members and state whether they are in compression or tension or zero-force members. (20 pts.) 3 3 ft 3 ft 3 ft + F 8 kip 5 ft B с 5 kip
The structure below is supported by a pin at A and a roller at E Determine the force in each member of the truss using the Method of Joints H meters 2 FE m AH m GF m HG m Joint Loadings, kN ent length, m Height, m HG GF FE 1.5 2 Draw FBD of truss system to determine reaction forces Assume all forces in members are tensile. If answer is negative, force is compressive. s in x direction...
1. The members of truss are attached together by pins having 5 cm in diameter and 10 cm in length. The truss is supported by a frictionless pin at one end (joint A) and a roller system at the other joint k). The load Lis equal to 5 kN. The section view of the truss member is below and it is homogeneous all along the truss. Elastic modulus is 200 GPa, shear modulus is 75 GPa for the truss. (a)...
Write the MATLAB code and use the function linsolve() to solve
the system of linear equations.
Thank you!
l Truss A truss is a structure that typically consists of 1. All straight members 2. connected together with pin joints 3. connected only at the ends of the members 4. and all external forces (loads&reactions) must be applied only at the joints. The weights of the members may be neglected. The basic building block of a truss is a triangle. Large...
Problem No. 2 (100 points) For the Baltimore bridge truss shown below answer the following questions: 1) Calculate Reaction Forces (FBD is already drawn assuming a pin support at A and a roller support at I) (10) 2) What is status of the Truss (determinate or indeterminate)? (10) 3) Obtain ALL the Zero force member (30) 4) Using method of Joints, find force in member PF and PG specify if these forces are in Tension or Compression? (25) 5) Using...
5. (20 points) The truss shown below supports horizontal forces of 6 kips at Joint G, 8 kips at Joint E, and 4 kips at Joint C. All truss members are made of steel (E 29,000 ksi). Each of the diagonal members (Members AD, DE, and EH) has a cross-sectional area of 1.2 in2. Each of the vertical members (Members AC, CE, EG, BD, DF and FH) has a cross-sectional area of 2.4 in Each of the horizontal members (Members...
