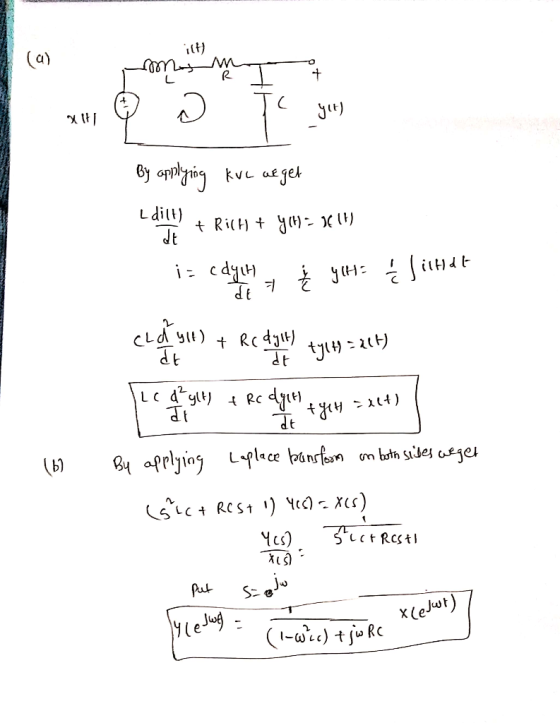

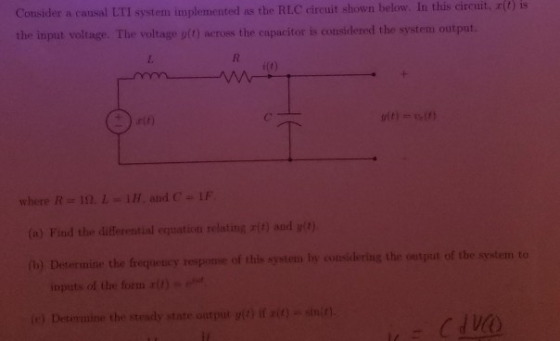

Cousider a causal LTI system implemented as the RLC cireuit shown below. In this cireuit, t)...
Consider a causal LTI system implemented as the RL circuit shown below. In this circuit, v(t) is the input voltage. The current i(t) is considered the system output. i(t) R L wwwm v(t) (a) Find the differential equation relating v(t) and i(t). (b) Determine the frequency response of this system (H(jw)). (c) Determine the output it) if v(t) = sin(t), R=10 and L=1. (d) Sketch Bode plot of H (jw) for R=10 and L=1. (e) Determine if the system is...
The input x(t) and output y(t) of a causal LTI system are related through the block-diagram representation shown in Figure P 9.35. Determine a differential equation relating y(t) and x(t). is this system stable?
2.6.1-2.6.62.6.1 Consider a causal contimuous-time LTI system described by the differential equation$$ y^{\prime \prime}(t)+y(t)=x(t) $$(a) Find the transfer function \(H(s)\), its \(R O C\), and its poles.(b) Find the impulse response \(h(t)\).(c) Classify the system as stable/unstable.(d) Find the step response of the system.2.6.2 Given the impulse response of a continuous-time LTI system, find the transfer function \(H(s),\) the \(\mathrm{ROC}\) of \(H(s)\), and the poles of the system. Also find the differential equation describing each system.(a) \(h(t)=\sin (3 t) u(t)\)(b)...
2. Consider the causal LTI system in which the input x(t) and output y(t) are related through the following block diagram respresentation: x(t) y(t) + 1/s # 7 -5 1/s 10 6 a. Find the system function. (2.5 points). b. Determine the differential equation relating y(t) and x(t). (2.5 points). c. Show that this system can be realized as a cascade interconnection of four first order subsystems. Give the system function for each subsystem, and sketch the block diagram of...
use R=1Ω, L=1H and C= 1/5 F Instead
(c) In the circuit shown in Figure P2.61(c), x(t) is the input voltage. The voltage y(t) across the capacitor is considered to be the system output wwww L 1H R=20 + y(t) x(t) C (c) Figure P2.61c (i) Determine the differential equation relating x(t) and y(t) (ii) Show that the homogeneous solution of the differential equation from part (i) has the forme "{K\ej2 + K2e"j2r}, and specify the value of a (iii...
(e) Consider an LTI system with impulse response h(t) = π8ǐnc(2(t-1). i. (5 pts) Find the frequency response H(jw). Hint: Use the FT properties and pairs tables. ii. (5 pts) Find the output y(t) when the input is (tsin(t) by using the Fourier Transform method. 3. Fourier Transforms: LTI Systems Described by LCCDE (35 pts) (a) Consider a causal (meaning zero initial conditions) LTI system represented by its input-output relationship in the form of a differential equation:-p +3讐+ 2y(t)--r(t). i....
FE x[n] -1 4. Given a causal LTI system as shown in the signal flow graph above where the coefficien t r is real: (a) Determine the system function, H (z). (5) (b) Determine a minimum multiply I/O difference equation. (5) (c) Is the system linear phase? Yes or No and why! (10) FE-5 5/13/2019 EENG751
FE x[n] -1 4. Given a causal LTI system as shown in the signal flow graph above where the coefficien t r is real:...
2-a)-RLC components connected in series in a circuit supplied by a variable dc voltage can be described by the following differential equations: di(t) wherei@ is the loop current and V1(t) İs the voltage drop across the inductor.+' The voltage drop across the resistor is given by Ohm's law vR(t) R i(t) and the voltage drop across the capacitor vc(t) is given by i(t) dt For a series circuit ye)t vit)t velt) v(t) where v(t) is applied voltage: Figure 3: RLC...
dt2 - dt dt Consider the LTI system below with inputs ri(t) and r2(t) and outputs ci(t) and cu(t): d'ci(t) + 2dcz(t) + 30z(t) = r(t) +r2(t) fo(t) + 3dcz(t) +cı (!) – cz(t) = r2(e) + drale) Determine the transfer function matrix. Hint: Use Laplace transforms. Determine a state variable model for the system in Problem 3 above. Assign state variables 1 = c 2 =ċ, 13 = C), and 3 = -1). In addition, let uj = ri,...
