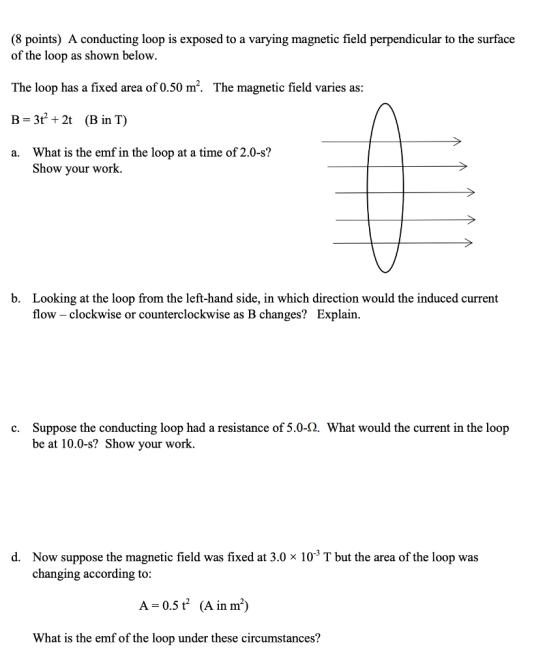

I need help on part c. I think I have the rest correct. thanks!
Homework Answers

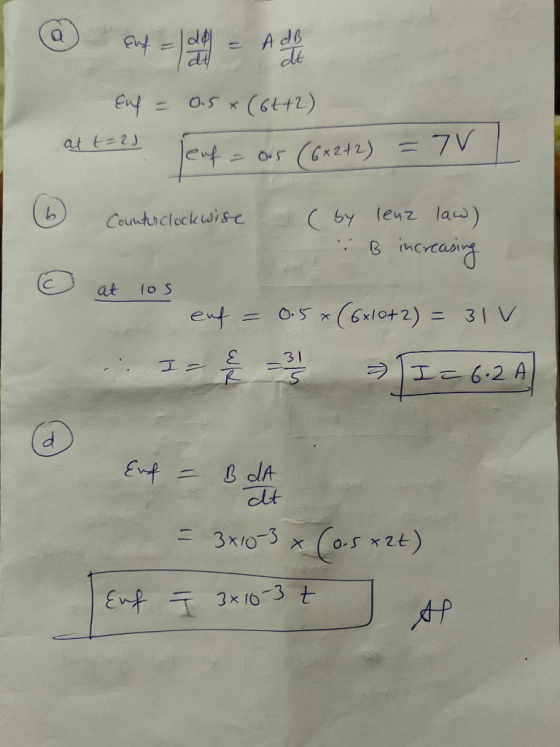

Add Answer to:
I need help on part c. I think I have the rest correct. thanks!
(8 points)...
