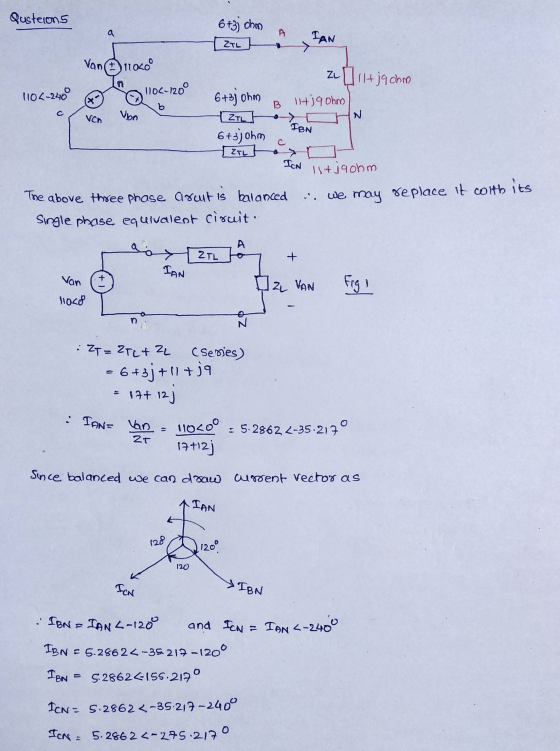

Question 5 6+3j ohm 4 o | 110/0° Ꮩ 11 +9j Ohm 110-240 V 110-120° v...
Problem5 A balanced Y-Y four-wire system has phase voltages Van-1 10L0。V, Vbn-1104200 V, Ven 1102-1200 V. The load impedance per phase is 19 +j13 2, and the line impedance per phase is 1+,2 Ω. a) Construct the a-phase equivalent circuit of the system. b) Calculate the line currents and neutral current. c) Calculate the three phase voltages at the load VAN, VBN and Vcv d) Calculate the average power per phase delivered to the Y- connected load
Q1.A balanced 3-Phase Y-connected generator with positive sequence has an impedance of 0.2 + 0.5j ф and an intemal voltage of 120 V/d. The generator feeds a balanced 3- Phase Y-connected load having an impedance of 39 + 28j Ωφ. The impedance of the line connecting the generator to the load is 0.8 + 1Sj Ωφ. The a-phase internal voltage of the generator is specified as the reference phasor a) Construct the a-phase equivalent circuit of the system b) Calculate...
A load impedance consists of 25 ohm resistance in series with 38 ohm inductive reactance. The load is connected across a 60 Hz, 240 V rms source. Use the voltage source as the reference (zero phase angle). a. Draw the circuit diagram. b. Calculate the value of inductance. c. Calculate the phasor value of current through the load impedance. d. Which leads, current or voltage? e. What is the phase angle between current and voltage? d. Calculate the phasor value...
A balanced Y-connected load with a phase impedance of 10 + j 4 Ω is supplied by a balanced, positive sequence Δ-connected voltage source having Vab 208∠0o V. Given that the line impedance is 0.8 + j 0.3 Ω per phase. (i) Construct a single-phase equivalent circuit of the three-phase system. (ii) Calculate the phase currents of the load. (iii) Calculate the line voltages at the load.
Problem 1 Part A A balanced three-phase circuit has the following characteristics: • Y-Y connected; • The line voltage at the source, Vab, is 90/32-60° V: • The phase sequence is positive • The line impedance is 3+2/; . The load impedance is 37–328 /¢. Calculate the phase voltage at the a terminal of the source. Express your answer in volts to three significant figures. Enter your answer using angle notation. Express argument in degrees. View Available Hints) VAX vec...
Rework problem 3.4 if the load connected to the 240-V secondary winding absorbs 110 kVA under short-term overload conditions at an 0.8 power factor leading and at 230 volts. Reference of problem 3.4 A single phase 100-kVA 2400/240-volt 60 Hz distribution transformer is used as a step down transformer. The load, which is connected to the 240-volt secondary winding, absorbs 60kVA at 0.8 power factor lagging and is at 230 volts. Assuming an ideal transformer, calculate the following: a) primary...
5 points uestion # Part-l Figure 4 shows a Δ-A configuration of a Δ-connected 3-phase source supplying power to a Δ- connected 3-phase load. The following parameters are known Source Voltage Source Impedance Load Impedance Feeder Impedance y, = 180.0-v (rms) z, = 0.15 +/0.45 Ω Z1-0.1 +/0.2 Ω lA Vp AB ZA Zi ICA Feeder Lines 3-Phase Source Balanced Load Figure 4 a. Compute the line currents IA IB, and lc. (5 points) b. Find the load currents IAB,...
7. A balanced three-phase Y-connected generator with positive sequence has an impedance of 0.2+ 20.5 216 and an internal voltage of 220 V/6. The generator feeds a balanced three-phase Y-connected load having an impedance of 39 + j28 /6. The impedance of the line connecting the generator to the load is 0.8 +j1.5 /6. The a-phase internal voltage of the generator is specified as the reference phasor. (a) Construct the a-phase equivalent circuit of the system. (5 points) (b) Calculate...
connected 3-phase load consisting of three identical impedances Z=
48ے36.870 W.
3-Phase System Using MATLAB/Simulink Analysis of Y-Y connected balanced 3-phase circuit using Matlab A 2400-V rms balanced 3-phase 60-Hz supply is applied to a balanced Y-connected 3-phase load consisting of three identical impedances Z- 4836.870 W. The circuit diagram is shown in Fig. 3. Taking the phase to neutral voltage Van as reference. Calculate 1) The phase &line voltage Van, Vab 2) The phase current for any phase- line...
