Question

Can some one fix my code so that the output result same as below?

BAR PLOT OF CYLINDER PRESSURE -VS- TIME
pressure is on horizontal axis - units are psi
time is on vertical axis - units are msec

   0.0         20.0        40.0          60.0        80.0       100.0      120.0
      +---------+---------+---------+---------+---------+---------+
0.0|*************************
1.5|*********************************
3.0|*****************************************
4.4|**************************************************      05.9|*********************************************
7.4|********************************
8.9|***********************
10.4|*****************
11.9|**************
13.3|*************
14.8|************
16.3|*********
17.8|*******
19.3|******
20.7|******
22.2|*******
23.7|*******

..........

=====================

her is my code

//#include"stdafx.h"

#include

#include

#include

#include

#include

#include

using namespace std;

const int SIZE =100;

class enginePerformance

{

public:

enginePerformance()

{TrapA =0;}



void retreiveData();

void setMaxPressure();

void setMinPressure();

void setAveragePressure();

void setCompressionRatio();

void setDeltaA();

void setPower();

void setbarPlot();

void outputReport ();



string getDataTitle()

{return dataTitle;}

string getEngineID()

{return engineID;}

string getDate()

{return date;}





double getRPM()

   {return RPM;}

double getCompRatio()

   {return compressionRatio;}

double getMaxPressure()

   {return averagePressure;}

double getMinPressure()

   {return averagePressure;}

double getAveragePressure()

{return averagePressure;}

double getTrapA()

{return TrapA;}

double getPower();





private:

string dataTitle;

string engineID;

string date;



double RPM;

double area;

double pressure[SIZE];

double volume[SIZE];

int dataCount;



double compressionRatio;

double maxPressure;

double minPressure;

double averagePressure;

double maxVolume;

double minVolume;

double TrapA;

double Power;



ifstream inputData;

ofstream report;



void openInputFile ();

void closeInputFile ();

void openOutputFile ();

void closeOutputFile ()

{report.close();}

void clearText ();

};

int main()

{

enginePerformance e;

e.retreiveData();

e.setMaxPressure();

e.setMinPressure();

e.setAveragePressure();

e.setCompressionRatio();

e.setDeltaA();

e.setPower();

/*e.setbarPlot();*/

e.outputReport();

return 0;



}

void enginePerformance::retreiveData()

{

dataCount = 0;

openInputFile();

getline(inputData, dataTitle);

getline(inputData,engineID);

getline(inputData,date);

inputData >>RPM;

//cout << RPM;

for (int i=0; i< 4; i++)

clearText();

while (!inputData.eof())

{

inputData >> pressure[dataCount];

inputData >> volume [dataCount];

//cout << pressure [ dataCount ] << " " << volume [ dataCount ] << endl;

dataCount++;

}

dataCount --;

}

void enginePerformance::openInputFile()

{

string filename;

cout <<"please name file."<

cin >>filename;



inputData.open("surface.txt");

if ( inputData.fail())

{

cout <<"Input file is missing"<

exit(1);

}

return;

}

void enginePerformance::clearText()

{

string garbage;

getline (inputData,garbage);

return;

}

void enginePerformance::setMaxPressure()

{

for(int j=0;j < dataCount;j++)

{

if (j == 0)

maxPressure = pressure[j];

if(pressure[j] >maxPressure)

maxPressure =pressure[j];

}

//cout << maxPressure;

return;



}

void enginePerformance::setMinPressure()

{

for(int j=0; j

{

if (j == 0)

{

minPressure = pressure[j];

//cout << minPressure << endl;

}

if(pressure[j]

{

minPressure = pressure[j];

//cout << minPressure << " " << j << endl;

}

}

return;



}

void enginePerformance::setAveragePressure()

{

double sum = 0;

for (int j=1; j

{

if (j ==0 )

sum =pressure[j];

else

sum =sum + pressure[j];

}

averagePressure =sum / dataCount;

return;

}

void enginePerformance::setCompressionRatio()

{

double maxVolume =0, minVolume =0;

for (int i=0; i < dataCount; i++)

{

   if (i == 0)

   maxVolume =minVolume = volume[i];

   if (volume[i]>maxVolume)

   maxVolume =volume[i];

   if (volume[i]

   minVolume =volume[i];

}

compressionRatio = maxVolume / minVolume;



}

void enginePerformance::setDeltaA()

{



area =0; //TrapA = 0.0;

for(int j=0; j<(dataCount-1); j++)

   {

   //cout << pressure [j] << " " << volume [j] << endl;

   area +=0.5*(pressure[j]+pressure[j+1])*((volume [j+1]-volume[j]));

   //area += TrapA;

   cout<

   }

//inputdataTrapA /=dataCount;

}

void enginePerformance::setPower()

{

cout << area << endl;

Power = area * 0.0254*4.45*RPM/120;

//power =work done/time interval =area under p.v area/time for 1 cycle



//time for 1 cycle =1/RPM*2

}

void enginePerformance::setbarPlot()

{



double scaleFactor;

cout << "What is the scale factor?" << endl;

cin >> scaleFactor;



int asterisks;

cout <<0.0<<""<<20.0<<""<<40.0<<""<

cout <<"+-------+---------"<



for ( int i = 0; i < dataCount; i ++ )

{



asterisks = pressure [ i ] * scaleFactor;

cout <

for ( int j = 0; j < asterisks; j ++ )

cout << "*";

cout << endl;

}



}

void enginePerformance::openOutputFile()

{

string filename;



cout<<"Please name output file." <

cin>>filename;



report.open (filename);

return;

}

void enginePerformance::outputReport()

{

openOutputFile ();

report << getDataTitle() <<"report"<

report <<"Engine ID:" << getEngineID() <

report <<"Analysis Date:" << getDate() <

report <<"Engine Performance:" <

report <<"Compression Ratio :" <

report <<"Pressure"<

report <<"Max"<

report <<"Min"<

report <<"Power"<







closeOutputFile();



return;



}

==================================inputdata below

Engine Analysis
Megatech Mark III Model TE1 Serial Number 155
January 10, 2010
1800. Engine RPM

Cylinder Pressure (psi) , Cylinder Volume (in3)

49 1.52
65 1.38
87 1.46
122 1.56
98 1.72
64 2.16
45 2.71
34 3.33
28.5 3.94
25 4.5
23 4.95
17 5.27
13 5.46
12 5.49
12.5 5.49
13 5.36
14.5 5.08
15 4.68
15.5 4.15
15.5 3.56
16 2.90
16 2.33
16 1.85
16 1.52
16 1.38
15 1.44
15 1.71
13.5 2.17
13 2.73
12 3.34
12 3.94
12 4.50
12.5 4.95
13 5.27
14 5.46
15 5.50
16 5.36
16.5 5.08
19 4.67
22 4.15
25 3.56
32 2.90
37 2.33
44 1.85
47 1.52
49 1.52

Answer 1

#include <iostream>
#include <iomanip>
using namespace std;

void barPlot(double arrayToPlot[], int numberInArray, double yScale)
{
    //For two points in pressure one character is used
    //Every 10th point is denoted by + in the pressure axis
    int i;
    double j, time = 0.0, temp = 0.0, max = 0.0;
    for(i = 0; i < numberInArray; i++){
        if ( arrayToPlot[i] > max)
            max = arrayToPlot[i];
    }
    //Finding maximum limit of pressure axis
    while(true)
    {
        temp += 10.0;
        if (temp >= max)
            break;
    }
    temp += 10.0;
    //Ploting
    cout<<"\n";
    i = 0;
    //forming pressure axis
    for(j = 0; j <= temp/2; j++){
        if( (int)j % 10 == 0){
            if(j < 40)
                i++;
            cout<<setprecision(1)<<fixed<<2 * j;//Formatting string, setprecision() is used to define no. of 0's after decimal
        }
        else if( (int)j % 10 > i )
            cout<<" ";
    }
    cout<<"\n   ";
    for(j = 0.0; j <= temp/2; j++){
        if( (int)j % 10 == 0)
            cout<<"+";
        else
            cout<<"-";
    }
    for(i = 0; i < numberInArray; i++)
    {
        //printing time axis
        cout<<"\n"<<time<<"|";
        time += yScale;
        //plotting data
        for(j = 1.0; j <= arrayToPlot[i]/2; j++)
        {
            cout<<"*";
        }
    }
}

int main()
{
    int numberInArray, i;
    cout<<"\nEnter number of values: ";
    cin>>numberInArray;
    double arrayToPlot[numberInArray], yScale;
    cout<<"\nScale of y-axis: ";
    cin>>yScale;
    cout<<"\nEnter pressure values sequentially: \n";
    for(i = 0; i < numberInArray; i++)
        cin>>arrayToPlot[i];
    barPlot(arrayToPlot, numberInArray, yScale);
    cout<<"\n";
    return 0;
}

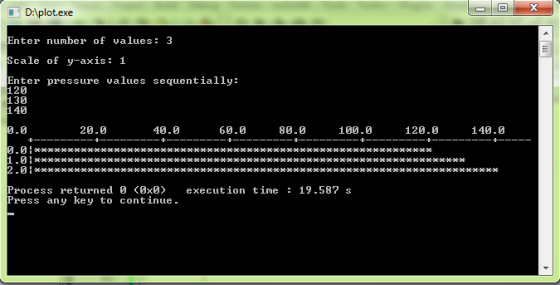

Output:
