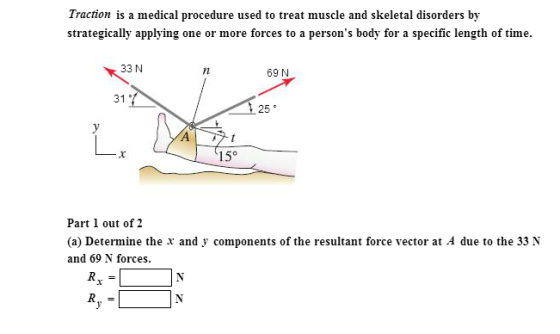

Please show your work! Traction is a medical procedure used to treat muscle and skeletal disorders...

Question

Question

Image for Traction is a medical procedure used to treat muscle and skeletal disorders by strategically applying one or m Please show your work!

science physics

Answer 1

Answer #1

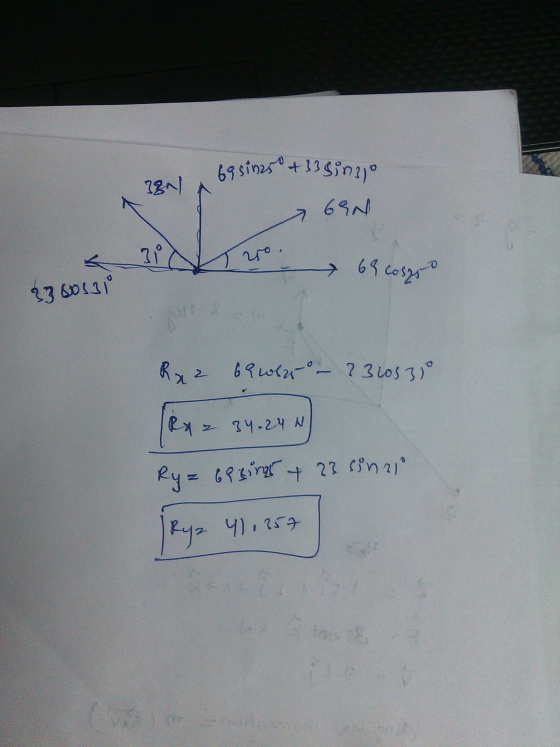

X component of the resultant force:

R_x = 69 * cos 25 + 33 * cos (180 - 31)

R_x = 69 * 0.906 + 33 * (-0.857)

R_x = 34.233 N

Y component of the resultant force:

R_y = 69 * sin 25 + 33 * sin (180 - 31)

R_y = 69 * 0.423 + 33 * 0.515

Ry = 46.182 N

Add a comment
