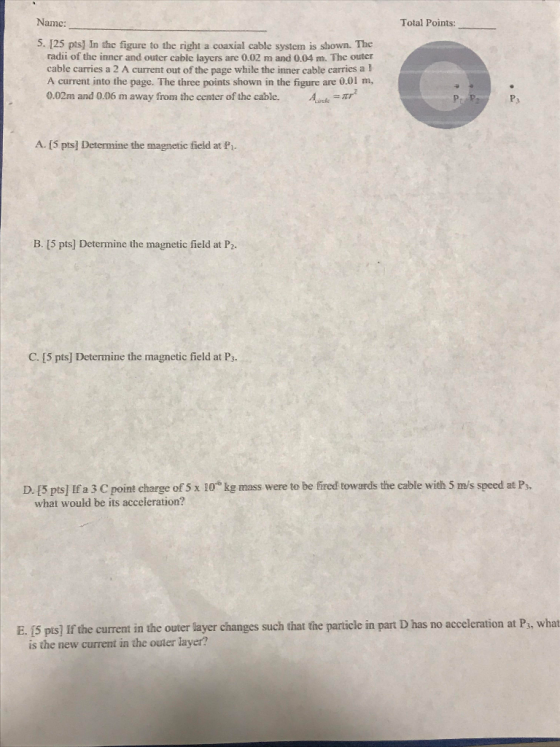

![Name: Total Points: S. 125 pts] In the figure to the right a coaxial cable system is shown. The radii of the inner and outer cable layers are 0.02 m and 0.04 m. The outer cable carries a 2 A current out of the page while the inner cable carries a I A current into the page. The three points shown in the figure are 0.01 m, 0.02m and 0.06 m away from the center of the cable. P3 A. (5 pts] Determine the magnetic field at P1. B. [5 pts] Determine the magnetic field at P2. C. [5 pts] Determine the magnetic field at Ps D. [5 pts! Ifa3 Ср int charge of5 x 10 kg mass were to be fired towards the cable with 5 ms speed at P3 what would be its acceleration? E. (5 pis] If the current in the outer layer changes such that the particle in part D has no acceleration at Ps, what is the new current in the outer layer?](http://img.homeworklib.com/questions/a346a180-94bc-11eb-a86e-bde6387badbb.png?x-oss-process=image/resize,w_560)
Please show me how to do these questions. The CORRECT final answers should be

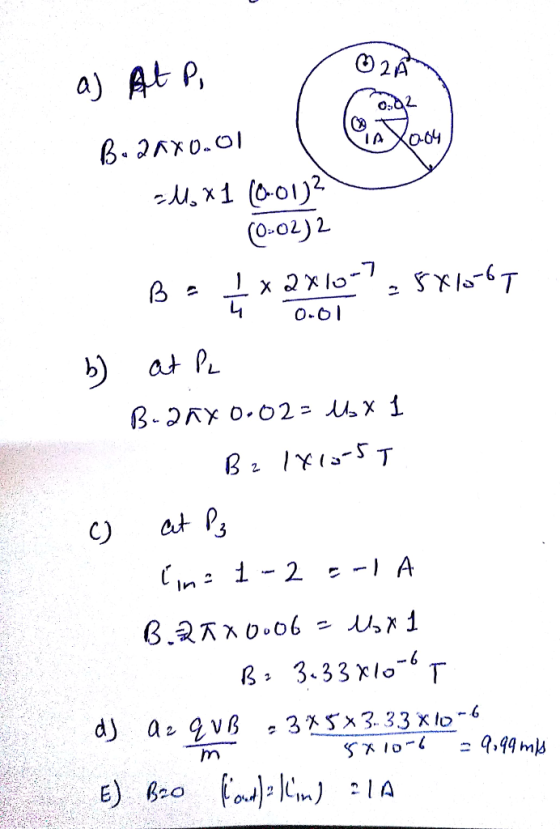

A. 5*10^-6 T
B. 1*10^-5 T
C. 3.33*10^-6 T
D. 10 m/s^2
E. 0
Homework Answers
