A force F, with components Fx = 3 N, Fy = 9N, and Fx = 3 N acts on a particle located at r

Question

Question

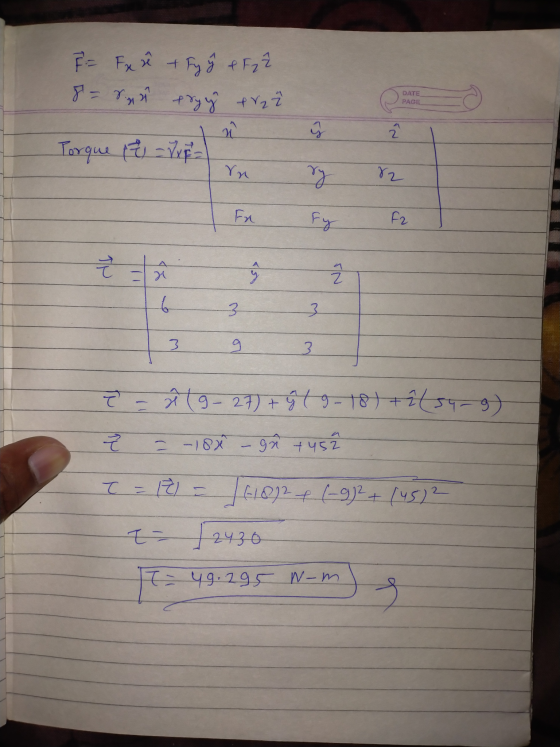

A force F, with components F_x = 3 N, F_y = 9N, and F_x = 3 N acts on a particle located at r, with components rx = 6 m. ry = 3 m, and rz = 3 m.

What is the magnitude of the torque about the origin due to this force?

Do not include units. Round your answer to the nearest whole number.

Torque Magnitude = __Nm

science Advanced-Physics

Answer 1

Answer #1

Answer 2
