Nichrome wire of cross-sectional radius 0.757 mm is to be used in winding a heating coil....

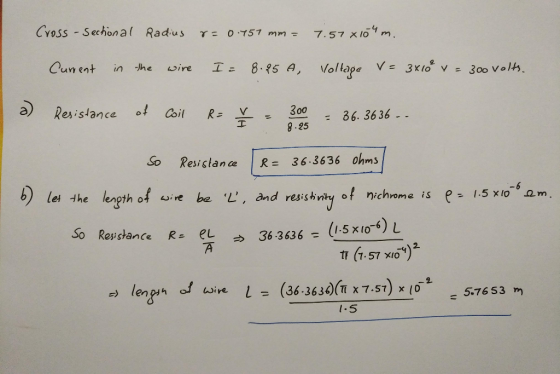

Nichrome wire of cross-sectional radius 0.757 mm is to be used in winding a heating coil. If the coil must carry a current of 8.25 A when a voltage of 3.00 102 V is applied across its ends, find the following.
(a) the required resistance of the coil
Ω
(b) the length of wire you must use to wind the coil
m
