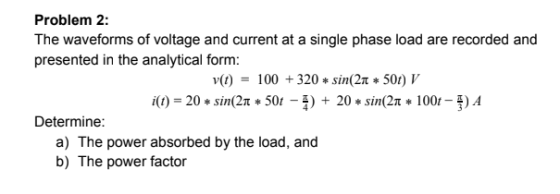

Problem 2: The waveforms of voltage and current at a single phase load are recorded and presented in the analytical form: v(t

0 0
Add a comment Improve this question Transcribed image text
Answer #1

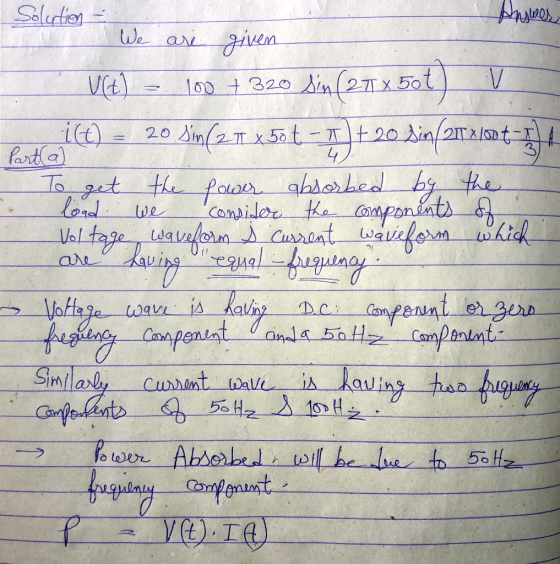

Solution Answer We are given. UGC) = 100 + 320 Sin (27TX ilt) = 20 Sim(2.11 *58 t - n) +20 din (2121mt=EVA Part(a) To get theWhere p = Phax difference between Current & Voltage. V (t) = 320 Sin (2T x 50 t) v 1 (t) = 20 sin (25 x 50t - A A Those wavef

Add a comment
Know the answer?
Add Answer to:
Problem 2: The waveforms of voltage and current at a single phase load are recorded and...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Problem 5 The waveforms of the line-to-line voltage and line current of a three-phase transmission line...

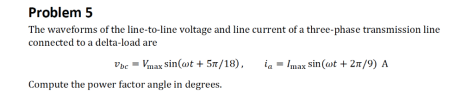

    Problem 5 The waveforms of the line-to-line voltage and line current of a three-phase transmission line connected to a delta-load are Ubc-Vmax sin(a) t + 5π/ 18) , /9) A ia-Imax sin(wt + 2π Compute the power factor angle in degrees.
