Homework Answers
Add Answer to:

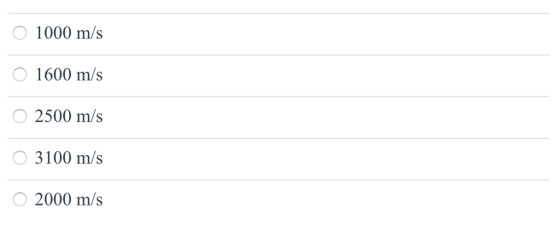

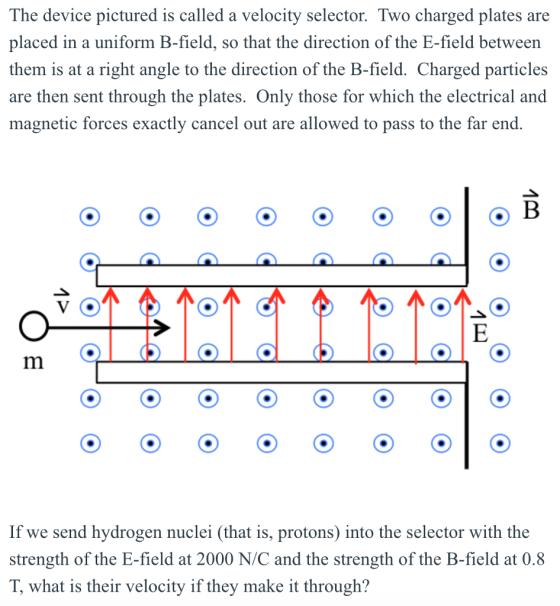

The device pictured is called a velocity selector. Two charged plates are placed in a uniform...
Velocity Selector-multiple choice
The Velocity SelectorIn experiments where all the charged particles in a beam are required to have the same velocity (for example, when entering a mass spectrometer), scientists use a velocity selector. A velocity selector has a region of uniform electric and magnetic fields that are perpendicular to each other and perpendicular to the motion of the charged particles. Both the electric and magnetic fields exert a force on the charged particles. If a particle has precisely the right velocity, the...
is a velocity selector that can beused to measure the speed of a charged particle....
is a velocity selector that can be
used to measure the speed of a charged particle. A beam of
particles is directed along the axis of the instrument. A parallel
plate capacitor sets up an electric field E which is oriented
perpendicular to a uniform magnetic field B. If the plates are
separated by 8 mm and the value of the magnetic field is 0.2 T,
what voltage between the plates will allow particles of speed to
pass straight through...
A 3.0 µg charged particle carrying -25 µC is injected along the +x direction into a...
A 3.0 µg charged particle carrying -25 µC is injected along the +x direction into a velocity selector. The velocity selector is composed of a parallel plate capacitor with 1 kV of potential between two plates separated by 1 cm and pair of solenoids with 3000 turns per cm separated by 2 mm. On the opposite side of the velocity selector from the injection site is a uniform 1.5 T magnetic field pointing in the +z direction. Draw a diagram...
Problem 22.22 The velocity selector in the figure(Figure 1) is designed to allow charged particles with...
Problem 22.22 The velocity selector in the figure(Figure 1) is designed to allow charged particles with a speed of 5000 m/s to pass through undeflected. The magnetic field has a magnitude of 0.99 T. Figure Part A Find the magnitude of the required electric field Express your answer using two significant figures. EVO AEO A o 3 ? N/C Submit Request Answer Part B. Find the direction of the required electric field. positive r direction e negative direction positive y...
Having trouble answering these. second photo pertains for question 3. l. A wire carries a, current...
Having trouble answering these. second photo pertains
for question 3.
l. A wire carries a, current of 10.0 A in a direction tha makes an angie of 30.0 with the direction of a magnetic field of strength 0.300 T. Find the magnetic force on 5.00-m length of the wirc. A current of 17.0 mA is maintained in a single circular loop with a circumference of 2.00 m. A magnetic ficld of 0.800 T is directed parallel to the piane of...
1. A speed selector is a device that uses both electric and magnetic fields to select...
1. A speed selector is a device that uses both electric and magnetic fields to select particles with only a certain value of velocity. (a) If a positively charged particle goes through a region of space where the electric field points directly upwards and the magnetic field points out of the page, draw a free body diagram indicating the electric and magnetic forces this particle feels. (b) If the particle can go through this region without being deflected (that is,...
The figure shows a velocity selector that can be used to measure the speed of a...
The figure shows a velocity selector that can be used to measure the speed of a charged particle. A beam of particles is directed along the axis of the instrument. A parallel plate capacitor sets up an electric field E, which is oriented perpendicular to a uniform magnetic field B. If the plates are separated by 2.0 mm and the value of the magnetic field is 0.60 T, what voltage between the plates will allow particles of speed 5.0
AV An Iron-Nickel sample from a meteorite was placed into a velocity selector and mass spectrometer....
AV An Iron-Nickel sample from a meteorite was placed into a velocity selector and mass spectrometer. Experimenters expect 3 primary isotopes: 56Fe, 58Ni, & boni. Positive ions are accelerated by an applied potential (AV) of 3300 Volts which is the same potential difference used to create the electric field in the velocity selector, where d is 1.1 cm. 1. On the figure provided, in the velocity selector region, (A) draw the direction of the electric field. (B) Draw the necessary...
Please include work. I'd like to know how to solve them. 1.) Consider a charged particle...
Please include work. I'd like to know how to solve
them.
1.) Consider a charged particle moving through
a region in which the electric field is perpendicular to the
magnetic field, with both fields perpendicular to the initial
velocity of the particle (see figure below). Such a device is
called a velocity selector because for one particular value of the
particle speed vselect the particle will travel straight through
the device without being deflected, whereas particles with speeds
that are...
Problem 1 chemists to determine the composition of a sample. Let's explore one type of mass spectrometer, which u...
Problem 1 chemists to determine the composition of a sample. Let's explore one type of mass spectrometer, which uses electric and magnetic fields. For each step below, sketch a diagram to help you with the analysis Mass spectrometers, which separate ions based on mass, are often used by a. In Step 1 of mass spectrometry, an accelerator releases a charged particle from rest near one plate of a charged parallel-plate capacitor, so that the particle accelerates toward the other plate...
is a velocity selector that can be
used to measure the speed of a charged particle. A beam of
particles is directed along the axis of the instrument. A parallel
plate capacitor sets up an electric field E which is oriented
perpendicular to a uniform magnetic field B. If the plates are
separated by 8 mm and the value of the magnetic field is 0.2 T,
what voltage between the plates will allow particles of speed to
pass straight through...
Problem 22.22 The velocity selector in the figure(Figure 1) is designed to allow charged particles with a speed of 5000 m/s to pass through undeflected. The magnetic field has a magnitude of 0.99 T. Figure Part A Find the magnitude of the required electric field Express your answer using two significant figures. EVO AEO A o 3 ? N/C Submit Request Answer Part B. Find the direction of the required electric field. positive r direction e negative direction positive y...
Having trouble answering these. second photo pertains
for question 3.
l. A wire carries a, current of 10.0 A in a direction tha makes an angie of 30.0 with the direction of a magnetic field of strength 0.300 T. Find the magnetic force on 5.00-m length of the wirc. A current of 17.0 mA is maintained in a single circular loop with a circumference of 2.00 m. A magnetic ficld of 0.800 T is directed parallel to the piane of...
AV An Iron-Nickel sample from a meteorite was placed into a velocity selector and mass spectrometer. Experimenters expect 3 primary isotopes: 56Fe, 58Ni, & boni. Positive ions are accelerated by an applied potential (AV) of 3300 Volts which is the same potential difference used to create the electric field in the velocity selector, where d is 1.1 cm. 1. On the figure provided, in the velocity selector region, (A) draw the direction of the electric field. (B) Draw the necessary...
Please include work. I'd like to know how to solve
them.
1.) Consider a charged particle moving through
a region in which the electric field is perpendicular to the
magnetic field, with both fields perpendicular to the initial
velocity of the particle (see figure below). Such a device is
called a velocity selector because for one particular value of the
particle speed vselect the particle will travel straight through
the device without being deflected, whereas particles with speeds
that are...
Problem 1 chemists to determine the composition of a sample. Let's explore one type of mass spectrometer, which uses electric and magnetic fields. For each step below, sketch a diagram to help you with the analysis Mass spectrometers, which separate ions based on mass, are often used by a. In Step 1 of mass spectrometry, an accelerator releases a charged particle from rest near one plate of a charged parallel-plate capacitor, so that the particle accelerates toward the other plate...
