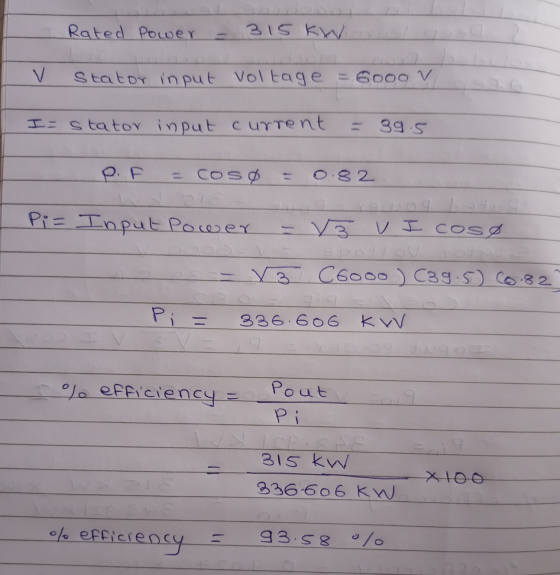

% efficiency if three phase induction motor is 93.58
If you have any doubt ask me in comment section if understand please upvote answer thank you
Add Answer to:
high voltage techniques

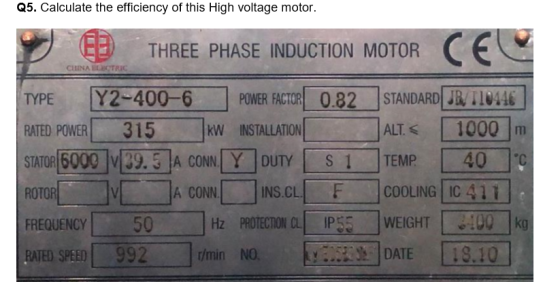

Q5. Calculate the efficiency of this High voltage motor. THREE PHASE INDUCTION MOTOR...
Q6 A 50 hp 440 V three phase induction motor is used to determine the power...
Q6 A 50 hp 440 V three phase induction motor is used to determine the power rating of a load. With the load connected to the motor shaft, the input power is 30.5 KW and the stator current is 34.5 A at rated voltage. The blocked rotor test on the motor yields a current of 44.3 A at 52.5 V and a power input of 2.1 kW. When running with no load at rated voltage, the motor takes 16.3 A...
4.6. A 460-V, 75 kW, 4-pole, delta-connected, 60-Hz, three- phase induction motor has a full-load slip of 5 percent, an efficiency of 92 percent and a power-factor of 0.87 lagging at full-load. At st...
4.6. A 460-V, 75 kW, 4-pole, delta-connected, 60-Hz, three- phase induction motor has a full-load slip of 5 percent, an efficiency of 92 percent and a power-factor of 0.87 lagging at full-load. At start-up, the motor develops 1.9 times the full load developed torque but draws 7.5 times the rated current at the rated voltage. This motor is to be started with an auto- transformer reduced-voltage starter. Assume the stator resistance and the stator core loss to be negligible. Calculate...
Problem#(50 points) The nameplate for a three phase induction motor is shown below. The "NEMA NOM. EFF." of 93.6% can be taken to be the efficiency. Keep in mind that voltage and cu...
Problem#(50 points) The nameplate for a three phase induction motor is shown below. The "NEMA NOM. EFF." of 93.6% can be taken to be the efficiency. Keep in mind that voltage and current in a 3PH system are specified as line voltage and current SIEMENS PE 21 PLUS PREMUM EFFICE 40 LL AND CHEMICAL DUITY QUALL Part A Assume the motor is run at the rated nameplate conditions: (a) Find the real electrical input power. (b) Find the numerical value...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the ...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
1. A six pole, 240V, 50 Hz three phase squirrel-cage induction motor has a no-load speed...
1. A six pole, 240V, 50 Hz three phase squirrel-cage induction motor has a no-load speed of 103 rad/s and a speed regulation of 5% at rated load. Find the amount of slip (in rpm) at full load for this motor. 2.. A 2 HP, 240 VAC, 60 Hz, capacitor-start motor is 75% efficient and draws 10 A at full load. What is this motor's power factor at rated load? 3. A wound rotor, 3 phase induction motor in Mr....
4. A three-phase induction motor has the following data: Nominal power, P 7.5 kW Nominal voltage, = 400 V Connection: Y Nominal frequency, f-50 Hz Nominal speed, nn 960 rpm Stator resistance, r,...
4. A three-phase induction motor has the following data: Nominal power, P 7.5 kW Nominal voltage, = 400 V Connection: Y Nominal frequency, f-50 Hz Nominal speed, nn 960 rpm Stator resistance, r, 0.55 Ω Rotor resistance referred to a stator winding phase: r:-0.51 Ω Stator leakage inductance, L,-4.4 mH Rotor leakage inductance referred to a stator winding phase,1'-4.4 mH Magnetising inductance L-65 mH How many pole pairs has the motor? 12] a. Calculate the nominal power factor of the...
The following test data apply to a 7.5-hp, three-phase, 220-V, 19-A, 60-Hz, four-pole induction motor with...
The following test data apply to a 7.5-hp, three-phase, 220-V, 19-A, 60-Hz, four-pole induction motor with a double-squirrel-cage rotor of design class C (high-starting-torque, low-starting current type): Test :No-load test at 60 Hz; Applied voltage V - 219 V line-to-line; Average phase current I, nl 5.70 A; Power Pnl -380 W; Test 2: Blocked-rotor test at 15 Hz; Applied voltage V 26.5 V line-to-line; Average phase current lbl 18.57 A; Power Pbl 675 W; Test 3: Average de resistance per...
Q6 A 50 hp 440 V three phase induction motor is used to determine the power rating of a load. With the load connected to the motor shaft, the input power is 30.5 KW and the stator current is 34.5 A at rated voltage. The blocked rotor test on the motor yields a current of 44.3 A at 52.5 V and a power input of 2.1 kW. When running with no load at rated voltage, the motor takes 16.3 A...
4.6. A 460-V, 75 kW, 4-pole, delta-connected, 60-Hz, three- phase induction motor has a full-load slip of 5 percent, an efficiency of 92 percent and a power-factor of 0.87 lagging at full-load. At start-up, the motor develops 1.9 times the full load developed torque but draws 7.5 times the rated current at the rated voltage. This motor is to be started with an auto- transformer reduced-voltage starter. Assume the stator resistance and the stator core loss to be negligible. Calculate...
Problem#(50 points) The nameplate for a three phase induction motor is shown below. The "NEMA NOM. EFF." of 93.6% can be taken to be the efficiency. Keep in mind that voltage and current in a 3PH system are specified as line voltage and current SIEMENS PE 21 PLUS PREMUM EFFICE 40 LL AND CHEMICAL DUITY QUALL Part A Assume the motor is run at the rated nameplate conditions: (a) Find the real electrical input power. (b) Find the numerical value...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
1. A six pole, 240V, 50 Hz three phase squirrel-cage induction motor has a no-load speed of 103 rad/s and a speed regulation of 5% at rated load. Find the amount of slip (in rpm) at full load for this motor. 2.. A 2 HP, 240 VAC, 60 Hz, capacitor-start motor is 75% efficient and draws 10 A at full load. What is this motor's power factor at rated load? 3. A wound rotor, 3 phase induction motor in Mr....
4. A three-phase induction motor has the following data: Nominal power, P 7.5 kW Nominal voltage, = 400 V Connection: Y Nominal frequency, f-50 Hz Nominal speed, nn 960 rpm Stator resistance, r, 0.55 Ω Rotor resistance referred to a stator winding phase: r:-0.51 Ω Stator leakage inductance, L,-4.4 mH Rotor leakage inductance referred to a stator winding phase,1'-4.4 mH Magnetising inductance L-65 mH How many pole pairs has the motor? 12] a. Calculate the nominal power factor of the...
The following test data apply to a 7.5-hp, three-phase, 220-V, 19-A, 60-Hz, four-pole induction motor with a double-squirrel-cage rotor of design class C (high-starting-torque, low-starting current type): Test :No-load test at 60 Hz; Applied voltage V - 219 V line-to-line; Average phase current I, nl 5.70 A; Power Pnl -380 W; Test 2: Blocked-rotor test at 15 Hz; Applied voltage V 26.5 V line-to-line; Average phase current lbl 18.57 A; Power Pbl 675 W; Test 3: Average de resistance per...
