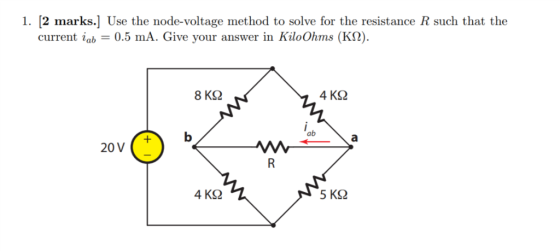

![1. [2 marks.] Use the node-voltage method to solve for the resistance R such that the current iab = 0.5 mA. Give your answer in KiloOhms (KO). ab 20V 4 KS2 5 KS2](http://img.homeworklib.com/questions/b57cf620-96f1-11eb-a5d9-eb62d80d249b.png?x-oss-process=image/resize,w_560)
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
Add Answer to:
1. [2 marks.] Use the node-voltage method to solve for the resistance R such that the...
VA and vB identified in Figure 4 Use node voltage analysis to solve for the node...
VA and vB identified in Figure 4 Use node voltage analysis to solve for the node voltages 4. 4 (k) 5 (mA) 10 (mA) 6 (k) 2 (k) Figure 4. Circuit for node voltage analysis for problem 4.
Learning Goal: To use the node-voltage method to solve circuits with branches containing only a voltage...
Learning Goal: To use the node-voltage method to solve circuits with branches containing only a voltage source. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. When the circuit contains a dependent source, you must write a constraint equation for each dependent source, in addition to the KCL equations. When the circuit contains one or more voltage sources that are the only components in branches connecting two essential nodes, the...
Problem 4.23 - Enhanced - with Hints and Feedback Use the node-voltage method to find the...
Problem 4.23 - Enhanced - with Hints and Feedback Use the node-voltage method to find the branch currents i1.12, and is in the circuit in (Figure 1) if uy = 40 V and v3 = 75 V Part A Find the current i Express your answer to three significant figures and include the appropriate units. View Available Hint(s) HA ? 0.87 mA Submit Previous Answers X Incorrect; Try Again; 5 attempts remaining Part B Find the current i Express your...
3ENGR> Assignments > HW8: Node voltage method HW8: Node voltage method <HW8: Node voltage method Problem...
3ENGR> Assignments > HW8: Node voltage method HW8: Node voltage method <HW8: Node voltage method Problem 4.16 Consider the circuit shown in (Figure 1) Part A Choose the correct formula for vo. 1 of 1 Figure Uo n R Reguest Answer Submit 61 w 111C.03ENGR> Assignments > HW8: Node voltage method HW8: Node voltage method <HWB: Node voltage method Problem 4.16 ments nts Consider the circut shown in (Figure 1). d Request Answer Submit Part B 1 of 1 Figure...
Problem 4.26 Part A Use the node-voltage method to find i in the figure(Figure 1) if...
Problem 4.26 Part A Use the node-voltage method to find i in the figure(Figure 1) if v = 28.0 V Express your answer with the appropriate units. Figure > 1 of 1 Value Units Request Answer Submit 2 kn 5 kn 5 kO Provide Feedback 30 k0 1 kn
Learning Goal: To use the node-voltage method to solve circuits that contain resistors and independent sources....
Learning Goal: To use the node-voltage method to solve circuits that contain resistors and independent sources. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. You should review KCL and the definition of an essential node before beginning. In this tutorial, you will use the node-voltage method to find the current through the voltage source, io , and the voltage drop across the 5 kN resistor, vo, for the circuit...
Part A Use the node-voltage method to find the value of to in the circuit in...
Part A Use the node-voltage method to find the value of to in the circuit in figure(Figure 1)if v-38 V,i 870 mA Express your answer with the appropriate units Value Units Figure 1 of 1 Submit Request Answer Provide Feedback 800 Ω 80Ω 40Ω 0 5012 200 Ω
a)(Voltage AB/ Current AB) battery b) Equivalent resistance between A and B nodes c)R value in...
a)(Voltage AB/ Current AB) battery
b) Equivalent resistance between A and B nodes
c)R value in ohms
d)R represented in 2 comercial resistors in serie with its
colors
please include all steps.. ASAP
EN EL SIGUIENTE CIRCUITO ELECTRICO DETERMINE: a) (VAB / IAB ). POR LA BATERIA. (20 pts.) b) RESISTENCIA SIMPLIFICADO EN EL. CIRCUITO ENTRE LOS NODOS A"Y B. (20 pts.) c) SOLAMENTE EL VALOR DE"R", EN OHMİOS. (30 pts.) d) LA "R. INDICARLO EN FUNCION DE 2 RESISTENCIAS...
A) Use the node voltage method to solve for V1, V2, V3 B) Use these values...
A)
Use the node voltage method to solve for V1, V2, V3
B) Use these values to find Vout/Vin and Vin/i in
1800s Zoon
Problem 1. Perform the following for the circuit below using the node voltage method: 10Ω 10Ω...
Problem 1. Perform the following for the circuit below using the node voltage method: 10Ω 10Ω 5i a) Calculate ia b) Calculate v c) Calculate Psource,5ia Problem 2. Perform the following for the circuit below using the node voltage method: 10Ω 1 4Ω 2 60V+ 30A V. 3 2Ω 5Ω 3 a) Calculate vi, v2 and vs b) Calculate Psource 30A c) Calculate Psource,Gov node voltage method Problem 3. Perform the following for the circuit below using the 10V 4Ω...
VA and vB identified in Figure 4 Use node voltage analysis to solve for the node voltages 4. 4 (k) 5 (mA) 10 (mA) 6 (k) 2 (k) Figure 4. Circuit for node voltage analysis for problem 4.
Learning Goal: To use the node-voltage method to solve circuits with branches containing only a voltage source. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. When the circuit contains a dependent source, you must write a constraint equation for each dependent source, in addition to the KCL equations. When the circuit contains one or more voltage sources that are the only components in branches connecting two essential nodes, the...
Problem 4.23 - Enhanced - with Hints and Feedback Use the node-voltage method to find the branch currents i1.12, and is in the circuit in (Figure 1) if uy = 40 V and v3 = 75 V Part A Find the current i Express your answer to three significant figures and include the appropriate units. View Available Hint(s) HA ? 0.87 mA Submit Previous Answers X Incorrect; Try Again; 5 attempts remaining Part B Find the current i Express your...
3ENGR> Assignments > HW8: Node voltage method HW8: Node voltage method <HW8: Node voltage method Problem 4.16 Consider the circuit shown in (Figure 1) Part A Choose the correct formula for vo. 1 of 1 Figure Uo n R Reguest Answer Submit 61 w 111C.03ENGR> Assignments > HW8: Node voltage method HW8: Node voltage method <HWB: Node voltage method Problem 4.16 ments nts Consider the circut shown in (Figure 1). d Request Answer Submit Part B 1 of 1 Figure...
Problem 4.26 Part A Use the node-voltage method to find i in the figure(Figure 1) if v = 28.0 V Express your answer with the appropriate units. Figure > 1 of 1 Value Units Request Answer Submit 2 kn 5 kn 5 kO Provide Feedback 30 k0 1 kn
Learning Goal: To use the node-voltage method to solve circuits that contain resistors and independent sources. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. You should review KCL and the definition of an essential node before beginning. In this tutorial, you will use the node-voltage method to find the current through the voltage source, io , and the voltage drop across the 5 kN resistor, vo, for the circuit...
Part A Use the node-voltage method to find the value of to in the circuit in figure(Figure 1)if v-38 V,i 870 mA Express your answer with the appropriate units Value Units Figure 1 of 1 Submit Request Answer Provide Feedback 800 Ω 80Ω 40Ω 0 5012 200 Ω
a)(Voltage AB/ Current AB) battery
b) Equivalent resistance between A and B nodes
c)R value in ohms
d)R represented in 2 comercial resistors in serie with its
colors
please include all steps.. ASAP
EN EL SIGUIENTE CIRCUITO ELECTRICO DETERMINE: a) (VAB / IAB ). POR LA BATERIA. (20 pts.) b) RESISTENCIA SIMPLIFICADO EN EL. CIRCUITO ENTRE LOS NODOS A"Y B. (20 pts.) c) SOLAMENTE EL VALOR DE"R", EN OHMİOS. (30 pts.) d) LA "R. INDICARLO EN FUNCION DE 2 RESISTENCIAS...
A)
Use the node voltage method to solve for V1, V2, V3
B) Use these values to find Vout/Vin and Vin/i in
1800s Zoon
Problem 1. Perform the following for the circuit below using the node voltage method: 10Ω 10Ω 5i a) Calculate ia b) Calculate v c) Calculate Psource,5ia Problem 2. Perform the following for the circuit below using the node voltage method: 10Ω 1 4Ω 2 60V+ 30A V. 3 2Ω 5Ω 3 a) Calculate vi, v2 and vs b) Calculate Psource 30A c) Calculate Psource,Gov node voltage method Problem 3. Perform the following for the circuit below using the 10V 4Ω...
