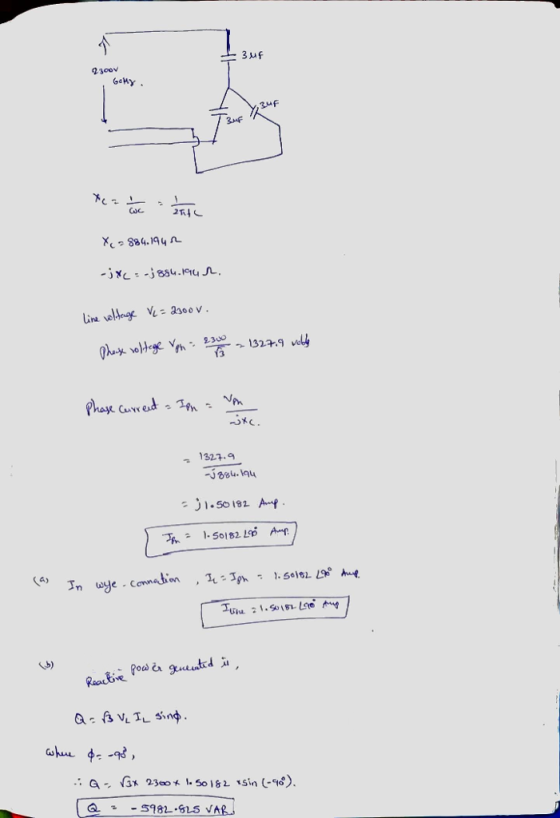

Three microfarad capacitors are connected in wye across a 2300 V, 60 Hz line. Calculate:- a)...
Three microfarad capacitors are connected in wye across a 2300 V, 60 Hz line.
Calculate:-
a) The line Current.
b) The reactive power generated.
Homework Answers
Add Answer to:
Three microfarad capacitors are connected in wye across a 2300
V, 60 Hz line.
Calculate:-
a)...
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms....
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 0.5-H inductance in series with a 50-Ω resistance. Assume that the phase of Van is zero. home / study / engineering / electrical engineering / electrical engineering questions and answers / A Balanced Positive-sequence Wye-connected 60-Hz Three-phase Source Has Line-to-line Voltages ... Question: A balanced positive-sequence wye-connected...
A 120-V (line-neutral) wye-connected 4-pole 60-Hz three-phase induction motor is operating at 100% of its 10-kW...
A 120-V (line-neutral) wye-connected 4-pole 60-Hz three-phase induction motor is operating at 100% of its 10-kW rated output shaft power at 5% slip. What is the frequency of the rotor electrical currents in Hz?
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye- delta on a 12.47 kv, 3-phase line. If the load is 450 kVA, calculate: a. The currents in the incoming a...
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye- delta on a 12.47 kv, 3-phase line. If the load is 450 kVA, calculate: a. The currents in the incoming and outgoing transmission lines b. The currents in the primary and secondary windings 1. sratod t 200 w 3o0 v/6oO V 60 Hz are used to raise the
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye-...
The following three-phase, balanced loads are connected across a three-phase, Y-connected 60 Hz source with a...
The following three-phase, balanced loads are connected across a three-phase, Y-connected 60 Hz source with a line-to-line voltage of 480 V. The loads are described below: • Load 1: ∆-connected, total three-phase apparent power is 30 kVA at 0.95 power factor lagging. • Load 2: ∆-connected, total three-phase active power is 20 kW at 0.7 power factor lagging. • Load 3: Y-connected, phase current is 30 A, and power factor is 0.9 pf leading. (a) Calculate the total complex power...
Be detailed please A three-phase y-connected 2300 V, 60 Hz round-rotor synchronous motor has a synchronous...
Be detailed please
A three-phase y-connected 2300 V, 60 Hz round-rotor synchronous motor has a synchronous reactance of 2 ohms/ phase and negligible armature resistance. 2. If the motor takes a line current of 350 A operating at a leading pf of 0.8. calculate the armature voltage and the power angle. If the motor is operating on load with a load angle of-20%, and the excitation is adjusted so that the armature voltage is equal in magnitude to the terminal...
(Question 1): (4pts) A three-phase, 2300-V, 60-Hz, 10-pole, A-connected cylindrical rotor synchronous motor has a synchronous...
(Question 1): (4pts) A three-phase, 2300-V, 60-Hz, 10-pole, A-connected cylindrical rotor synchronous motor has a synchronous reactance of 4.0 82/phase. The armature resistance may be neglected. It is connected to 2300-V source and drives a system with its excitation set to give a PF of 0.9-leading when the power is 500-kW. (a) Sketch the phasor diagram of this motor. (b) Calculate the armature current. (c) Calculate the excitation voltage and torque angle. (d) If the load torque is increased by...
1. A three-phase, 5 kVA, 208 V, four-pole, 60 Hz, wye-connected synchronous machine has...
A three-phase, 5 kVA, 208 V, four-pole, 60 Hz, wye-connected synchronous machine has negligible stator winding resistance and a synchronous reactance of 8 Wper phase. It is operated in parallel with a three-phase, 208 V, 60 Hz power supply.Determine the excitation voltage and the power angle when the machine is delivering rated kVA at 0.8 pf lagging. Draw the phasor diagram
A 1.6-hp, 8-pole, 60-Hz, three-phase induction motor is rated for 820 rpm, 220 V rms (line-to-line),...
A 1.6-hp, 8-pole, 60-Hz, three-phase induction motor is rated for 820 rpm, 220 V rms (line-to-line), and 4.32 A (line current) at 77.0 percent lagging power factor. Find the full-load efficiency if the motor is delta-connected and if it is wye-connected.
A three-phase balanced wye connected source with a line voltage of 400v supplies a balanced delta...
A three-phase balanced wye connected source with a line voltage of 400v supplies a balanced delta connected load with the impedance of each phase ?∆ = 60∠450Ω. The impedance of the threephase line connecting the source and the load is ?l = 2∠300Ω/phase. Calculate the line current and phase current magnitudes of the load. Also find real and reactive power at the terminals (abc) of the load and at the terminals (ABC) of the source.
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a cur...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source
Problem 7 Three three-phase wye-connected loads are in parallel...
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye- delta on a 12.47 kv, 3-phase line. If the load is 450 kVA, calculate: a. The currents in the incoming and outgoing transmission lines b. The currents in the primary and secondary windings 1. sratod t 200 w 3o0 v/6oO V 60 Hz are used to raise the
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye-...
Be detailed please
A three-phase y-connected 2300 V, 60 Hz round-rotor synchronous motor has a synchronous reactance of 2 ohms/ phase and negligible armature resistance. 2. If the motor takes a line current of 350 A operating at a leading pf of 0.8. calculate the armature voltage and the power angle. If the motor is operating on load with a load angle of-20%, and the excitation is adjusted so that the armature voltage is equal in magnitude to the terminal...
(Question 1): (4pts) A three-phase, 2300-V, 60-Hz, 10-pole, A-connected cylindrical rotor synchronous motor has a synchronous reactance of 4.0 82/phase. The armature resistance may be neglected. It is connected to 2300-V source and drives a system with its excitation set to give a PF of 0.9-leading when the power is 500-kW. (a) Sketch the phasor diagram of this motor. (b) Calculate the armature current. (c) Calculate the excitation voltage and torque angle. (d) If the load torque is increased by...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source
Problem 7 Three three-phase wye-connected loads are in parallel...
